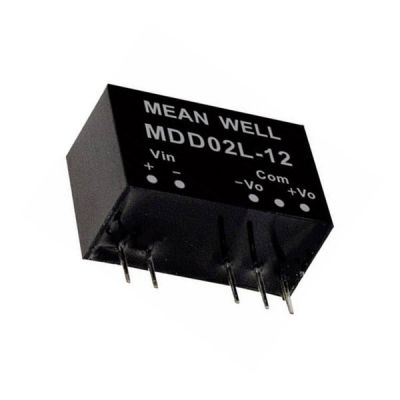

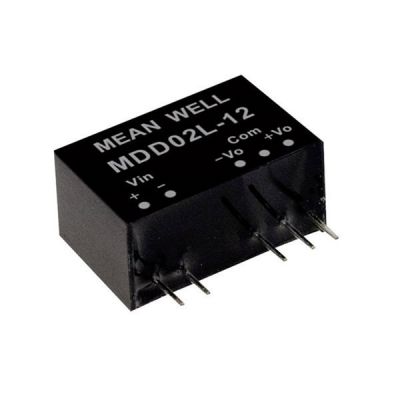

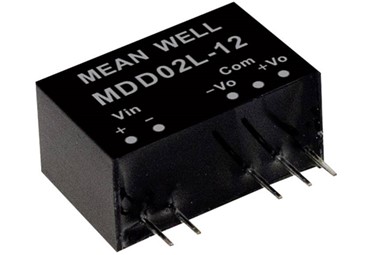

Meanwell 2W SIP Package DC-DC Medical Grade Unregulated Converter with 11mA102mA±5V±20-200mA

- +
Availability:In stock
SKU Meanwell MDD02N-05N
Brand Meanwell
Details

Meanwell MDD02N-05N is a 2W isolated and unregulated DC-DC converter with 11mA102mA±5V±20-200mA. The model stands out with module type, and medical grade with SIP7 package. Meanwhile, the main features are as following: international standard pins, high efficiency up to 86%, wide working temperature range -40~+95℃, 6KVDC I/P-O/P high isolation voltage, short circuit protection, etc. In addition, MDS02M-N&MDD02M-N models account for different input voltage 5V/12V/24V±10%, and various output voltage, 3.3V/5V/12V/15V for single output and ±5V/±12V/±15V for dual outputs. Due to its high reliability, excellent quality, and competitive price, Meanwell MDD02N-05N is suitable for medical systems, ultralow leakage current or industrial control, telecommunication field, distributed power architecture, and so on.Meanwell MDD02N-05N price and specs 2w SIP dc-dc medical Converter MDD02N-N MDD02N-12N MDD02N-15N 21.6~26.4V ycict

Meanwell MDD02N-05N Encoding

MD(S) Series Name S: Single Output
D: Dual Output
02 Rated Wattage
N Input voltage (L:4.5-5.5Vdc, M:10.8-13.2Vdc, N:21.6-26.4Vdc)
05 Output Voltage (3.3/5/12/15Vdc, ±5V/±12V/±15Vdc)
N New Series

Meanwell MDD02N-05N Specifications

ORDER NO. INPUT OUTPUT EFFICIENCY (TYP.) CAPACITOR LOAD (MAX)
INPUT VOLTAGE (RANGE) INPUT CURRENT OUTPUT VOLTAGE OUTPUT CURRENT
NO LOAD FULL LOAD
MDD02N-05N Normal 24V
(21.6~26.4V)
11mA 102mA ±5V ±20-200mA 83% 680μF
MDD02N-12N 10mA 102mA ±12V ±9-84mA 83% 150μF
MDD02N-15N 10mA 100mA ±15V ±7-67mA 84% 150μF
INPUT VOLTAGE RANGE L:4.5~5.5Vdc M:10.8~13.2Vdc N:21.6~26.4Vdc
FILTER Internal capacitor
PROTECTION Fuse recommended. 500mA Slow-Blow Type for all models
OUTPUT VOLTAGE ACCURACY ±5.0%
RATED POWER 2W
RIPPLE & NOISE 100mVp-p
LINE REGULATION 1.2% for 1% input variation
LOAD REGULATION ±15% for 3.3Vo, 5Vo ;±10% for others
SWITCHING FREQUENCY (Typ.) 20KHz
PROTECTION SHORT CIRCUIT Protection type : Continuous, automatic recovery
ENVIRONMENT COOLING Free-air convection
WORKING TEMP. -40 ~ +95 (Refer to "Derating Curve")
CASE TEMPERATURE +105
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -55 ~ +125, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT 0.02% / (0 ~ 90)
SOLDERING TEMPERATURE 1.5mm from case of 1 ~ 3sec./260max
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY&EMC SAFETY STANDARDS IEC62368-1 / UL62368-1 (Expect for 15Vo/±15Vo models), LVD IEC60601-1, EAC TP TC 020/2011 approved
WITHSTAND VOLTAGE I/P-O/P:6KVDC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
ISOLATION CAPACITANCE (Typ.) 25pF
EMC EMISSION Parameter Standard Test Level
Conducted BS EN/EN55032, BS EN/EN55011 Class A/B with external components
Radiated BS EN/EN55032, BS EN/EN55011 Class A/B with external components
EMC IMMUNITY Parameter Standard Test Level
ESD BS EN/EN61000-4-2 Level 2,±4KV contact, Level 3,±8KV air
Radiated Susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT/Burest BS EN/EN61000-4-4 Level 1, 0.5KV / 5KHz
Surge BS EN/EN61000-4-5 Level 1, 0.5KV Line to Ground
Conducted BS EN/EN61000-4-6 Level 2, 3V (e.m.f.)
Magnetic Field BS EN/EN61000-4-8 Level 1, 1A/m
OTHERS MTBF 12900Khrs MIL-HDBK-217F(25)
DIMENSION 19.7*7.1*11.5mm (0.775*0.279*0.452 inch)
CASE MATERIAL Non-Conductive black plastic (UL 94V-0 rated)
PACKING 2.8g ; 24pcs/per tube, 2160pcs/90 tube/per carton

Meanwell MDD02N-05N Features

l  Low cost

l  3 years warranty

l  Medical safety approved (1xMOPP/2xMOOP) according to IEC60601-1

l  Comply with IEC/UL62368-1 (Expect for 15Vo/t15Vo) and LVD lEC60601-1

l  Low patient leakage current <2pA

l  Protections: Short circuit (Continuous)

l  Operating temperature range -40~+95℃

l  6KVDC high I/O isolation (Reinforced insulation)

l  SIP7 package with international standard pinout

Meanwell MDD02N-05N price and specs 2w dc-dc medical Converter MDD02N-N MDD02N-12N MDD02N-15N 21.6~26.4V ycict

Meanwell MDD02N-05N Applications

l  CT scanning

l  Medical carts

l  Medical devices

l  Wireless network

l  Oral care equipment

l  Industrial control facility

l  Medical oxygen monitor

l  Telecom/datacom system

Meanwell MDD02N-05N price and specs SIP dc-dc medical Converter MDD02N-N MDD02N-12N MDD02N-15N 21.6~26.4V ycict

Meanwell MDD02N-05N Mechanical Diagram

Meanwell MDD02N-05N price and datasheet SIP dc-dc medical Converter MDD02N-N MDD02N-12N MDD02N-15N 21.6~26.4V ycict
