Meanwell MDD01M-15N is a 1W isolated and unregulated DC-DC converter with 18mA114mA±15V±4-34mA. The unit stands out with module type, medical grade with SIP7 package. At the same time, the main features are as following: international standard pins, high efficiency reaching up to 84%, wide working temperature range -40~+95℃, 6KVDC I/P-O/P high isolation voltage, short circuit protection, etc. What’s more, MDS01M-N&MDD01M-N models account for different input voltage 5V/12V/24V±10%, and various output voltage, 3.3V/5V/12V/15V for single output, and ±5V/±12V/±15V for dual outputs. In light of its high reliability, excellent quality, and competitive price, Meanwell MDD01M-15N is suitable for medical systems, ultra-low leakage current or industrial control, telecommunication field, distributed power architecture, and so on.

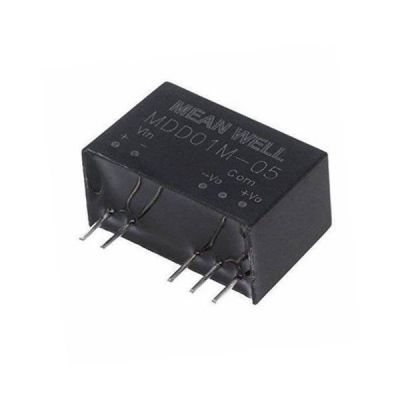

Meanwell MDD01M-15N price and specs 1W DC-DC Converter 18mA MDD01M-N MDD01M-05N MDD01M-12N MDS01-N MDD01-N YCICT

Meanwell MDD01M-15N Encoding

MD(S) Series Name S: Single Output
D: Dual Output
01 Rated Wattage
M Input voltage (L:4.5-5.5Vdc, M:10.8-13.2Vdc, N:21.6-26.4Vdc)
15 Output Voltage (3.3/5/12/15Vdc, ±5V/±12V/±15Vdc)
N New Series

Meanwell MDD01M-15N Specifications

ORDER NO. INPUT OUTPUT EFFICIENCY (TYP.) CAPACITOR LOAD (MAX)
INPUT VOLTAGE (RANGE) INPUT CURRENT OUTPUT VOLTAGE OUTPUT CURRENT
NO LOAD FULL LOAD
MDD01M-05N Normal 12V
(10.8~13.2V)
16mA 107mA ±5V ±10-100mA 78% 330μF
MDD01M-12N 18mA 104mA ±12V ±5-42mA 80% 100μF
MDD01M-15N 18mA 114mA ±15V ±4-34mA 80% 100μF
INPUT VOLTAGE RANGE L:4.5~5.5Vdc M:10.8~13.2Vdc N:21.6~26.4Vdc
FILTER Internal capacitor
PROTECTION Fuse recommended. 500mA Slow-Blow Type for all models
OUTPUT VOLTAGE ACCURACY ±5.0%
RATED POWER 1W
RIPPLE & NOISE 100mVp-p
LINE REGULATION 1.2% for 1% input variation
LOAD REGULATION ±15% for 3.3Vo, 5Vo ; ±10% for others
SWITCHING FREQUENCY (Typ.) 30KHz
PROTECTION SHORT CIRCUIT Protection type : Continuous, automatic recovery
ENVIRONMENT COOLING Free-air convection
WORKING TEMP. -40 ~ +95 (Refer to "Derating Curve")
CASE TEMPERATURE +105
WORKING HUMIDITY 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -55 ~ +125, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT 0.02% / (0 ~ 90)
SOLDERING TEMPERATURE 1.5mm from case of 1 ~ 3sec./260 max
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY&EMC SAFETY STANDARDS IEC62368-1 / UL62368-1(Expect for 15Vo/±15Vo models), LVD IEC60601-1, EAC TP TC 020/2011 approved
WITHSTAND VOLTAGE I/P-O/P:6KVDC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
ISOLATION CAPACITANCE (Typ.) 10pF
EMC EMISSION Parameter Standard Test Level
Conducted BS EN/EN55032, BS EN/EN55011 Class A/B with external components
Radiated BS EN/EN55032, BS EN/EN55011 Class A/B with external components
EMC IMMUNITY Parameter Standard Test Level
ESD BS EN/EN61000-4-2 Level 2, ±4KV contact, Level 3, ±8KV air
Radiated Susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT/Burest BS EN/EN61000-4-4 Level 1, 0.5KV / 5KHz
Surge BS EN/EN61000-4-5 Level 2, 3V(e.m.f.)
Conducted BS EN/EN61000-4-6 Level 1, 1A/m
Magnetic Field BS EN/EN61000-4-8 Level 1, 0.5KV Line to Ground
OTHERS MTBF 15000Khrs MIL-HDBK-217F(25)
DIMENSION 19.7*7.1*11.5mm (0.775*0.279*0.452 inch)
CASE MATERIAL Non-Conductive black plastic (UL 94V-0 rated)
PACKING 2.8g ; 24pcs/per tube, 2160pcs/90 tube/per carton

Meanwell MDD01M-15N Features

l  Low cost

l  3 years warranty

l  Low patient leakage current <2μA

l  Protections: Short circuit (Continuous)

l  Operating temperature range -40 ~+95℃

l  6KVDC high I/O isolation (Reinforced insulation)

l  SIP7 package with international standard pinout

l  Comply with IEC/UL62368-1 (Expect for 15Vo/±15Vo ) and LVD IEC60601-1

l  Medical safety approved (1xMOPP/2xMOOP) according to IEC60601-1

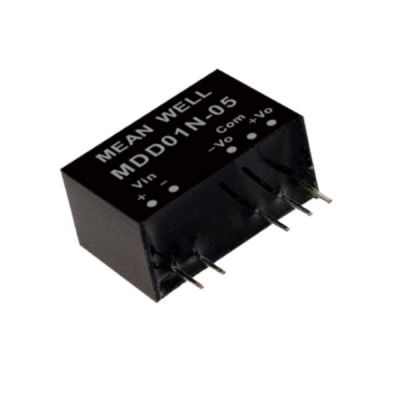

Meanwell MDD01M-15N price and specs 1W DC-DC Converter ±15V MDD01M-N MDD01M-05N MDD01M-12N MDS01-N MDD01-N YCICT

Meanwell MDD01M-15N Applications

l  CT scanning

l  Medical carts

l  Medical devices

l  Wireless network

l  Oral care equipment

l  Industrial control facility

l  Medical oxygen monitor

l  Telecom/datacom system

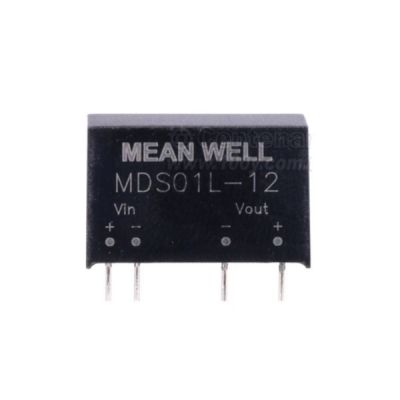

Meanwell MDD01M-15N price and specs 1W DC-DC Converter MDD01M-N MDD01M-05N MDD01M-12N MDS01-N MDD01-N YCICT

Meanwell MDD01M-15N Mechanical Diagram
