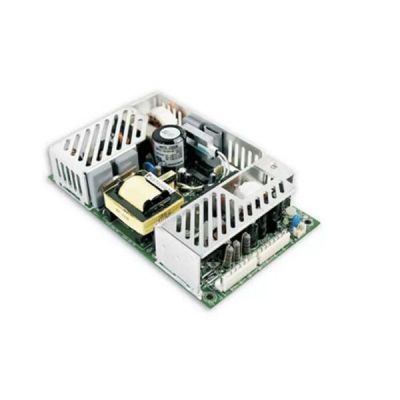

MD-100X
12.36
Details
Meanwell MD-100 Series Model Specifications
| OUTPUT VOLTAGE CODE | MD-100R | MD-100S | MD-100T | MD-100U | MD-100V | MD-100W | MD-100X | ||||||||
| Output( MS-150) | DC VOLTAGE | 5V | 5V | 5V | 12V | 5V | 15V | 24V | 5V | 24V | 12V | 12V | 12V | 15V | 15V |
| RATED CURRENT | 10A | 8A | 10A | 4.2A | 10A | 3.4A | 2.5A | 8A | 2.5A | 3.4A | 5A | 3.4A | 4A | 2.7A | |
| CURRENT RANGE | 2-10A | 0-8A | 2-10A | 0-5.8A | 2-10A | 0-4.7A | 0.5-3A | 0-10A | 0.6-3A | 0-4.7A | 1-5A | 0-5.8A | 1-4.7A | 0-4.7A | |
| RATED POWER | 90W | 100.4W | 101W | 100W | 100.8W | 100.8W | 100.5W | ||||||||
| RIPPLE & NOISE (max.) | 100mVp-p | 100mVp-p | 100mVp-p | 150mVp-p | 100mVp-p | 150mVp-p | 200mVp-p | 100mVp-p | 240mVp-p | 20mVp-p | 120mVp-p | 120mVp-p | 150mVp-p | 150mVp-p | |
| VOLTAGE ADJ. RANGE | 4.75-5.5V | 4.75-5.5V | 4.75-5.5V | 11.4-13.2V | 4.75-5.5V | 14.2-16.5V | 22.8-26.4V | 4.75-5.5V | 22.8-26.4V | 11.4-13.2V | 11.4-13.2V | 11.4-13.2V | 14.2-16.5V | 14.2-16.5V | |
| VOLTAGE TOLERANCE | ±3.0% | ±3.0% | ±3.0% | ±3.0% | ±3.0% | ±3.0% | ±3.0% | ±3.0% | ±2% | ±3.0% | ±2% | ±3.0% | ±2% | ±3.0% | |
| LINE REGUL ATION | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±0.5% | ±1.0% | ±0.5% | ±1.0% | ±0.5% | ±1.0% | |
| LOAD REGULATION | ±2.0% | ±2.0% | ±2.0% | ±2.0% | ±2.0% | ±2.0% | ±2.0% | ±2.0% | ±1.0% | ±2.0% | ±1.0% | ±2.0% | ±1.0% | ±2.0% | |
| SETUP, RISE, HOLD UP TIME | 1500ms, 50ms, 20ms at full load | ||||||||||||||
| PROTECTION | OVERLOAD | 105 ~ 150% rated output power | |||||||||||||
| Protection type : Shut down o/p voltage, re-power on to recover | |||||||||||||||
| OVER VOLTAGE | 5.6-7.2V | 5.6-7.2V | 5.6-7.2V | 13.3-17V | 5.6-7.2V | 16.6-22V | 26.5-34V | 5.6-7.2V | 26.5-34V | 13.3-17V | 13.3-17V | 13.3-17V | 16.6-22V | 16.6-22V | |
| Protection type : Shut down o/p voltage, re-power on to recover | |||||||||||||||
| FUNCTION | REMOTE INHIBIT CONTROL | RC+/RC-: 0 ~ 0.8V or OPEN, POWER ON RC+/RC-: 4 ~ 12V POWER OFF | |||||||||||||
Meanwell MD-100 Series Features
l 3 years warranty
l Built in active PFC, PF>0.95
l Universal AC input/ full range
l Remote Control on every individual output module
l Remote Sense on every single output module (MS-75, 150,210,300,360)
l Remote margin/V-Program (MS-210/360)
l Built in parallel function (MS-2 10/300/360)
l Protections: Short circuit/Overload/Over voltage for all output modules
l Additional 12V/0.1A auxiliary output for remote control
l Cooling by built-in DC fan with fan alarm function
l Various output configuration is selectable
