LRS-75-48
11.86

LRS-75-48

$11.86

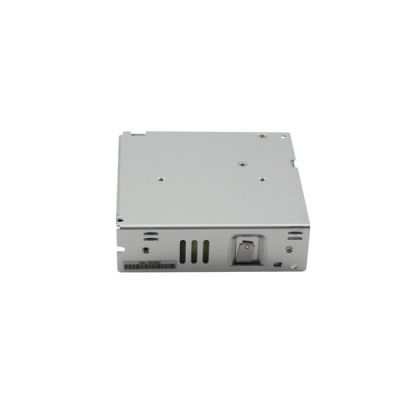

Meanwell 75W Single Output Switching Power Supply 48V1.6A0-1.6A76.8W200 mVp-p43.2 ~ 52.8V±1%±0.5%±0.5%

- +
Availability:In stock
SKU Meanwell LRS-75-48
Brand Meanwell
Details

Meanwell LRS-75-48 is a 75W single-output enclosed type power supply with 48V1.6A0-1.6A76.8W. The metallic mesh case design increases the heat dissipation, and it can operate from -30℃ through 70 ℃under air convection without fan. Providing an extremely low no load power consumption, this allows the end system to meet the worldwide energy requirement easily. This model complys with the international safety regulations such as TUV BS EN/EN62368-1, BS EN/EN60335-1,BS EN/EN61558-1/-2-16, UL62368-1 and GB4943. Furthermore LRS-75-48 has the complete protection functions and at the same time 5G anti-vibration capability. Considering the high efficiency, long life and high reliability, LRS-75-48 functions as a high price-to-performance power supply solution for various industrial applications.

Meanwell LRS-75-48 Specifications

Meanwell LRS-75-48 Specifications

Model LRS-75-48
Output DC VOLTAGE (V) 48V
RATED CURRENT 1.6A
CURRENT RANGE 0-1.6A
RATED POWER 76.8W
RIPPLE & NOISE (max.)  200 mVp-p
VOLTAGE ADJ. RANGE 43.2 ~ 52.8V
VOLTAGE TOLERANCE ±1%
LINE REGUL ATION ±0.5%
LOAD REGULATION ±0.5%
SETUP, RISE TIME 500ms, 30ms/230VAC 500ms,30ms/115VAC at full load
HOLD UP TIME  60ms/230VAC 12ms/115VAC at full load
Input VOLTAGE RANGE 85 ~ 264VAC 120 ~ 373VDC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.)  91.50%
AC CURRENT (Typ.) 1.4A/115VAC 0.85A/230VAC
INRUSH CURRENT (Typ. ) COLD START 65A/230VAC
LEAKAGE CURR ENT <0.75mA / 240VAC
PROTECTION OVERL OAD 110 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 55.2 ~ 64.8V
 Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT WORKING TEMP. -30 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +85, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes
OVER VOLTAGE CATEGORY ; Compliance to EN61558, EN50178, EN60664-1, EN62477-1; altitude up to 2000 meters
SAFETY &EMC SAFETY STANDARDS UL62368-1, TUV BS EN/EN62368-1, BS EN/EN60335-1, BS EN/EN61558-1/-2-16,CCC GB4943.1, BSMI CNS14336-1, EAC TP TC 004,AS/NZS 62368.1(by CB),KC K60950-1(for LRS-75-12/24 only), BIS IS13252(Part1): 2010/IEC 60950-1: 2005 approved
WITHSTAND VOLTAGE I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC
ISOLATION RESISTANCE I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN55014, BS EN/EN61000-3-2,-3, GB/T 9254,
BSMI CNS13438, EAC TP TC 020,KC KN32,KN35(for LRS-75-12/24 only)
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level,criteria A, EAC TP TC 020,KC KN32,KN35(for LRS-75-12/24 only)
Others MTBF 681.2K hrs min. MIL-HDBK-217F (25)
DIMENSION 99*97*30mm (L*W*H)
PACKING 0.25Kg ; 45pcs/ 12.25Kg/ 0.77CUFT

Meanwell LRS-75-48 Features

l   3 years warranty

l   Over voltage category III

l   100% full load burn-in test

l   LED indicator for power on

l   Withstand 5G vibration test

l   Universal AC input 1 Full range

l   Cooling by free air convection

l   No load power consumption<0.3W

l   Miniature size and 1U low profile

l   Operating altitude up to 5000 meters

l   High operating temperature up to 70℃

l   High efficiency, long life and high reliability

l   Withstand 300V AC surge input for 5 second

l   Protections: Short circuit/Overload/Over voltage

Meanwell LRS-75-48 Features

Meanwell LRS-75-48 Applications

l  Industrial Automation Machinery

l  Industrial Control System

l  Mechanical and electrical equipment

l  Electronic instruments, equipment and devices

l  Household appliances

Meanwell LRS-75-48 Applications

Meanwell LRS-75-48 Mechanical Diagram

Meanwell LRS-75-48 Mechanical DiagramMeanwell LRS-75-48 Mechanical DiagramMeanwell LRS-75-48 Mechanical Diagram
