LRS-50-15
10.52
Details

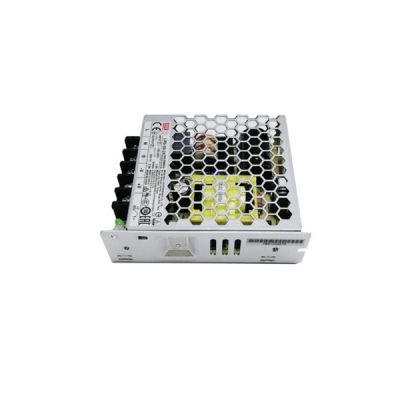

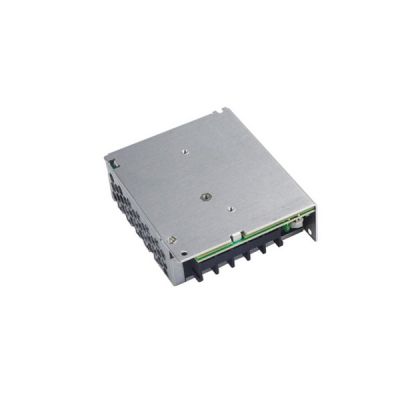

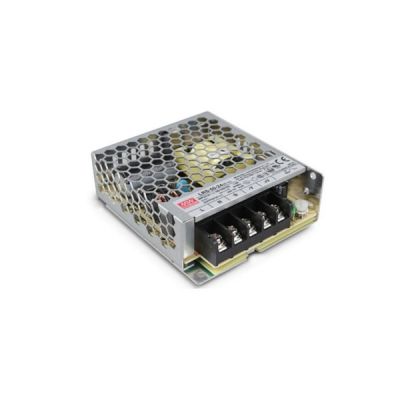

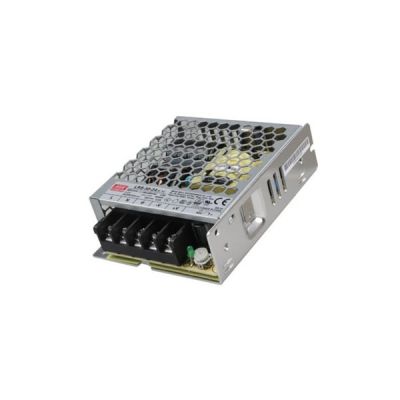

Meanwell LRS-50-15 is a 50W single-output enclosed type power supply with 15V3.4A0-3.4A51W and 30mm low profile design. In addition to the high efficiency up to 90%, the design of metallic mesh case enhances the heat dissipation, and it operates from -30℃ through 70℃ under air convection without a fan. Because of delivering an extremely low no load power consumption (less than 0.2W), it allows the end system to easily meet the worldwide energy requirement, and complied with the international safety regulations such as TUV EN62368-1,EN60335-1,EN61558-1/-2-16, UL62368-1 and GB4943. L RS- 50-15 functions as a high price-to-performance power supply solution for various industrial applications.
Meanwell LRS-50-15 Specifications
| Model | LRS-50-15 | |
| Output | DC VOLTAGE (V) | 15V |
| RATED CURRENT | 3.4A | |
| CURRENT RANGE | 0-3.4A | |
| RATED POWER | 51W | |
| RIPPLE & NOISE (max.) mVp-p | 120 | |
| VOLTAGE ADJ. RANGE | 13.5 ~ 18V | |
| VOLTAGE TOLERANCE | ±1% | |
| LINE REGUL ATION | ±0.5% | |
| LOAD REGULATION | ±0.5% | |
| SETUP, RISE TIME | 1000ms, 30ms/230VAC 2000ms,30ms/115VAC at full load | |
| HOLD UP TIME | 30ms/230VAC 12ms/115VAC at full load | |
| Input | VOLTAGE RANGE | 85 ~ 264VAC 120 ~ 373VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 88% | |
| AC CURRENT (Typ.) | 0.95A/115VAC 0.56A/230VAC | |
| INRUSH CURRENT (Typ. ) | COLD START 45A/230VAC | |
| LEAKAGE CURR ENT | <0.75mA / 240VAC | |
| PROTECTION | OVERL OAD | 110 ~ 150% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 18.75 ~ 21.75V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes | |
| OVER VOLTAGE CATEGORY | Ⅲ; Compliance to EN61558, EN50178, EN60664-1, EN62477-1; altitude up to 2000 meters | |
| SAFETY &EMC | SAFETY STANDARDS | UL62368-1, TUV EN62368-1, EN60335-1, EN61558-1/-2-16,CCC GB4943.1, BSMI CNS14336-1, EAC TP TC 004 |
| AS/NZS 60950.1(by CB),KC K60950-1(for LRS-50-12/24 only), BIS IS13252(Part1): 2010/IEC 60950-1: 2005 approved | ||
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to EN55032 (CISPR32) Class B, EN55014, EN61000-3-2,-3, GB/T 9254, BSMI CNS13438, EAC TP TC 020, | |
| KC KN32,KN35(for LRS-50-12/24 only) | ||
| EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2), heavy industry level, criteria A, EAC TP TC 020, | |
| KC KN32,KN35(for LRS-50-12/24 only) | ||
| Others | MTBF | 645K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 99*82*30mm (L*W*H) | |
| PACKING | 0.23Kg; 60pcs/14.8Kg/0.88CUFT | |
Meanwell LRS-50-15 Features
l 3 years warranty
l LED indicator for power on
l Withstand 5G vibration test
l Cooling by free air convection
l Universal AC input/ Full range
l No load power consumption<0.2W
l Miniature size and 1U low profile
l Operating altitude up to 5000 meters
l High efficiency, long life and high reliability
l Withstand 300VAC surge input for 5 second
l High operating temperature up to 70℃
l Protections: Short circuit /Overload /Over voltage
l Compliance to IEC/EN 60335-1(PD3) and IEC/EN61558-1, -2-16 for household appliances·
Meanwell LRS-50-15 Applications
l Industrial automation machinery
l Industrial control system
l Mechanical and electrical equipment
l Electronic instruments, equipment or apparatus
l Household appliances
Meanwell LRS-50-15 Mechanical Diagram
