LRS-35-48
10.12
Details

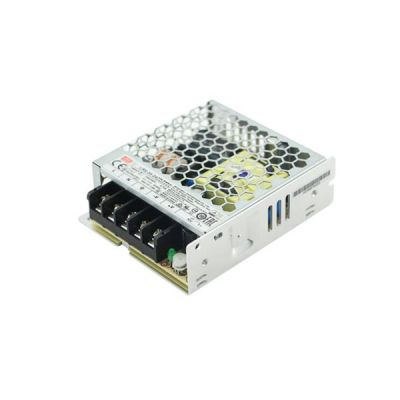

Meanwell LRS-35-48 is a 35W single-output AC/DC enclosed type power supply with 48V0.8A0-0.8A38.4W. except of its high efficiency up to 89%, the metallic mesh case design enhances the heat dissipation, and work from -30C to 70C under air convection without fan. This model offers a very low no load power consumption less than 0.2W, and permit the end system to easily meet the worldwide energy requirement. It is complied with the international safety regulations such as TUV EN62368-1,EN60335-1,EN61558-1/-2-16, UL62368-1 and GB4943.Furthermore, It has the full protection functions and 5G anti-vibration capability as well. Because of the high efficiency, long life and high reliability.LRS-35-48 gives a high price-to-performance power supply solution for various industrial areas.
Meanwell LRS-35-48 Specifications
| Model | LRS-35-48 | |
| Output | DC VOLTAGE (V) | 48V |
| RATED CURRENT | 0.8A | |
| CURRENT RANGE | 0-0.8A | |
| RATED POWER | 38.4W | |
| RIPPLE & NOISE | 200(max.) mVp-p | |
| VOLTAGE ADJ. RANGE | 43.2 ~ 52.8V | |
| VOLTAGE TOLERANCE | ±1% | |
| LINE REGUL ATION | ±0.5% | |
| LOAD REGULATION | ±0.5% | |
| SETUP, RISE TIME | 1000ms, 30ms/230VAC 2000ms,30ms/115VAC at full load | |
| HOLD UP TIME | 30ms/230VAC 12ms/115VAC at full load | |
| Input | VOLTAGE RANGE | 85 ~ 264VAC 120 ~ 373VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 89% | |
| AC CURRENT (Typ.) | 0.7A/115VAC 0.42A/230VAC | |
| INRUSH CURRENT (Typ. ) | COLD START 45A/230VAC | |
| LEAKAGE CURR ENT | <0.75mA / 240VAC | |
| PROTECTION | OVERL OAD | 110 ~ 150% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 55.2 ~ 64.8V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes | |
| OVER VOLTAGE CATEGORY | Ⅲ; According to EN61558, EN50178, EN60664-1, EN62477-1; altitude up to 2000 meters | |
| SAFETY &EMC | SAFETY STANDARDS | UL62368-1, TUV EN62368-1, EN60335-1, EN61558-1/-2-16,CCC GB4943.1, BSMI CNS14336-1, EAC TP TC 004, AS/NZS 60950.1(by CB),KC K60950-1(for LRS-35-12/24 only), BIS IS13252(Part1): 2010/IEC 60950-1: 2005 approved |
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to EN55032 (CISPR32) Class B, EN55014, EN61000-3-2,-3, GB/T 9254, BSMI CNS13438, EAC TP TC 020, KC KN32,KN35(for LRS-35-12/24 only) |
|
| EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2), heavy industry level, criteria A, EAC TP TC 020, KC KN32,KN35(for LRS-35-12/24 only) |
|
| Others | MTBF | 763.6K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 99*82*30mm (L*W*H) | |
| PACKING | 0.23Kg ; 60pcs/14.8Kg/0.88CUFT | |
Meanwell LRS-35-48 Features
l 3 years warranty
l 100% full load burn-in test
l Universal AC input/ Full range
l Cooling by free air convection
l Withstand 5G vibration test
l LED indicator for power on
l No load power consumption<0. 2W
l Miniature size and 1U low profile
l High operating temperature up to 70℃
l High efficiency, long life and high reliability
l Protections: Short circuit /Overload/Over voltage
l Operating altitude up to 5000 meters
l Withstand 300VAC surge input for 5 second
Meanwell LRS-35-48 Applications
l Industrial automation machinery
l Industrial control system
l Mechanical and electrical equipment
l Electronic instruments, equipment or apparatus
l Household appliances
Meanwell LRS-35-48 Mechanical Diagram
