LRS-35-15
9.97
Details

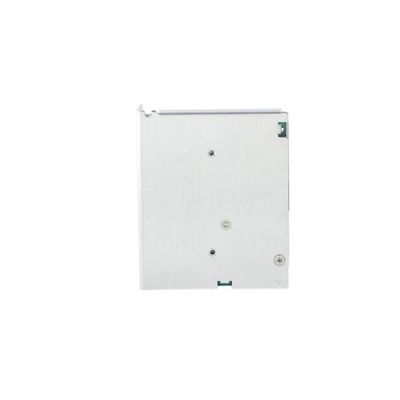

Meanwell LRS-35-15 is a 35W single-output AC/DC enclosed type power supply with 15V2.4A0-2.4A36W. Besides its high efficiency up to 89%, the metallic mesh case design enhances the heat dissipation, and run from -30C through 70C under air convection without fan. This power supply gives an extremely low no load power consumption less than 0.2W, and allows the end system to easily meet the worldwide energy requirement. Furthermore, It has the protection functions and 5G anti-vibration capability as well. Thanks to its high efficiency, long life and high reliability.LRS-35-15 plays a high price-to-performance power supply solution for various industrial applications.
Meanwell LRS-35-15 Specifications
| Model | LRS-35-15 | |
| Output | DC VOLTAGE (V) | 15V |
| RATED CURRENT | 2.4A | |
| CURRENT RANGE | 0-2.4A | |
| RATED POWER | 36W | |
| RIPPLE & NOISE | 120(max.) mVp-p | |
| VOLTAGE ADJ. RANGE | 13.5 ~ 18V | |
| VOLTAGE TOLERANCE | ±1% | |
| LINE REGUL ATION | ±0.5% | |
| LOAD REGULATION | ±0.5% | |
| SETUP, RISE TIME | 1000ms, 30ms/230VAC 2000ms,30ms/115VAC at full load | |
| HOLD UP TIME | 30ms/230VAC 12ms/115VAC at full load | |
| Input | VOLTAGE RANGE | 85 ~ 264VAC 120 ~ 373VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 86% | |
| AC CURRENT (Typ.) | 0.7A/115VAC 0.42A/230VAC | |
| INRUSH CURRENT (Typ. ) | COLD START 45A/230VAC | |
| LEAKAGE CURR ENT | <0.75mA / 240VAC | |
| PROTECTION | OVERL OAD | 110 ~ 150% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 18.75 ~ 21.75V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes | |
| OVER VOLTAGE CATEGORY | Ⅲ; According to EN61558, EN50178, EN60664-1, EN62477-1; altitude up to 2000 meters | |
| SAFETY &EMC | SAFETY STANDARDS | UL62368-1, TUV EN62368-1, EN60335-1, EN61558-1/-2-16,CCC GB4943.1, BSMI CNS14336-1, EAC TP TC 004, AS/NZS 60950.1(by CB),KC K60950-1(for LRS-35-12/24 only), BIS IS13252(Part1): 2010/IEC 60950-1: 2005 approved |
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to EN55032 (CISPR32) Class B, EN55014, EN61000-3-2,-3, GB/T 9254, BSMI CNS13438, EAC TP TC 020, KC KN32,KN35(for LRS-35-12/24 only) |
|
| EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11, EN61000-6-2 (EN50082-2), heavy industry level, criteria A, EAC TP TC 020, KC KN32,KN35(for LRS-35-12/24 only) |
|
| Others | MTBF | 763.6K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 99*82*30mm (L*W*H) | |
| PACKING | 0.23Kg ; 60pcs/14.8Kg/0.88CUFT |
Meanwell LRS-35-15 Features
l 3 years warranty
l Over voltage category III
l 1 00% full load burn-in test
l Universal AC input/ Full range
l Cooling by free air convection
l Withstand 5G vibration test
l LED indicator for power on
l No load power consumption<0. 2W
l Miniature size and 1U low profile
l High operating temperature up to 70 degree
l Protections: Short circuit /Overload/Over voltage
l Operating altitude up to 5000 meters
l Withstand 300VAC surge input for 5 second
l High efficiency, long life and high reliability
l Compliance to IEC/EN 60335-1(PD3) and IEC/EN61558-1, -2-16 for household appliances
Meanwell LRS-35-15 Applications
l Household appliances
l Industrial control system
l Industrial automation machinery
l Mechanical and electrical equipment
l Electronic instruments, equipment or apparatus
Meanwell LRS-35-15 Mechanical Diagram
