LRS-200
20.25
Details

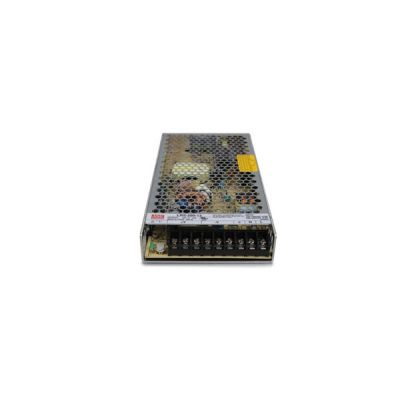

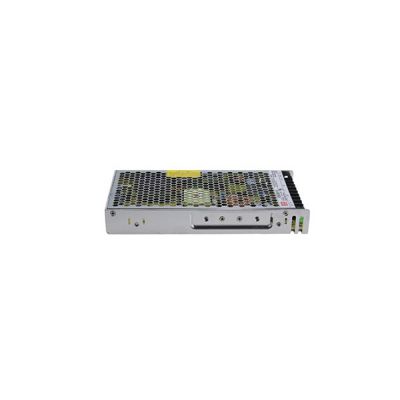

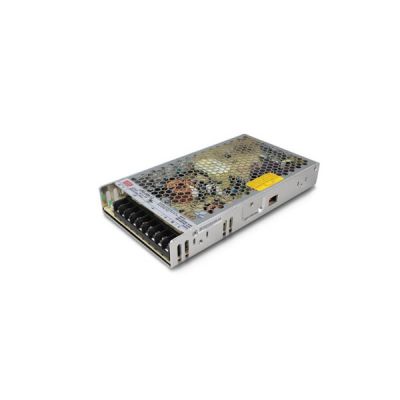

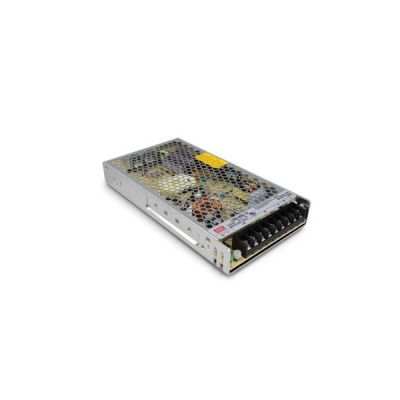

Meanwell LRS-200 Series is a 200W single-output enclosed type power supply with 30 mm low profile design. By adopting the input of from the high efficiency up to 90%, the metallic mesh case design enhances the heat dissipation, and operates from -25 ℃through 70℃ under air convection with no fan. With delivering an extremely low no load power consumption (less than O.75W), it permits the end system to easily fulfill the worldwide energy requirement, and complied with the international safety regulations such as IEC/UL 62368-1. Moreover, it has the complete protection functions and 5G anti-vibration capability. Considering the high efficiency, long life and high reliability. Meanwell LRS -200 series serves as a high price-to-performance power supply solution for various industrial applications.
Meanwell LRS-200 Series Model Specifications
| Model | LRS-200-3.3 | LRS-200-4.2 | LRS-200-5 | LRS-200-12 | LRS-200-15 | LRS-200-24 | LRS-200-36 | LRS-200-48 | |
| Output | DC VOLTAGE | 3.3V | 4.2V | 5V | 12V | 15V | 24V | 36V | 48V |
| RATED CURRENT | 40A | 40A | 40A | 17A | 14A | 8.8A | 5.9A | 4.4A | |
| CURRENT RANGE | 0-40A | 0-40A | 0-40A | 0-17A | 0-14A | 0-8.8A | 0-5.9A | 0-4.4A | |
| RATED POWER | 132W | 168W | 200W | 204W | 210W | 211.2W | 212.4W | 211.2W | |
| RIPPLE & NOISE (max.) mVp-p | 150 | 150 | 150 | 150 | 150 | 150 | 200 | 200 | |
| VOLTAGE ADJ. RANGE | 2.97-3.6V | 3.6-4.4V | 4.5-5.5V | 10.2-13.8V | 13.5 - 18V | 21.6 - 28.8V | 32.4 - 39.6V | 43.2 - 52.8V | |
| VOLTAGE TOLERANCE | ±3% | ±4% | ±3% | ±1.5% | ±1% | ±1% | ±1% | ±1% | |
| LINE REGUL ATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGULATION | ±2.5% | ±2.5% | ±2% | ±1% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| SETUP, RISE TIME | 1300ms, 50ms/230VAC 1300ms,50ms/115VAC at full load | ||||||||
| HOLD UP TIME | 16ms/230VAC 12ms/115VAC at full load | ||||||||
| Input | VOLTAGE RANGE | 90 ~ 132VAC / 180 ~ 264VAC by switch 240 ~ 370VDC (switch on 230VAC) | |||||||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||||||
| EFFICIENCY (Typ.) | 83.00% | 86.00% | 87.00% | 87.00% | 88.00% | 89.50% | 89.50% | 90.00% | |
| AC CURRENT (Typ.) | 4A/115VAC 2.2A/230VAC | ||||||||
| INRUSH CURRENT (Typ. ) | COLD STAR 60A/115VAC 60A/230VAC | ||||||||
| LEAKAGE CURR ENT | <2mA / 240VAC | ||||||||
| PROTECTION | OVERL OAD | 110 ~ 140% rated output power | |||||||
| 3.3~36V Hiccup mode, recovers automatically after fault condition is removed.48V Shut down and latch off o/p voltage, re-power on to recover. | |||||||||
| OVER VOLTAGE | 3.8~4.45V | 4.6-5.4V | 5.75~ 6.75V | 13.8 ~ 16.2V | 18 ~ 21V | 28.8 ~ 33.6V | 41.4 ~ 46.8V | 55.2 ~ 64.8V | |
| 3.3~36V Hiccup mode, recovers automatically after fault condition is removed.48V Shut down and latch off o/p voltage, re-power on to recover. | |||||||||
| ENVIRONMENT | WORKING TEMP. | -25 ~ +70℃ (Refer to "Derating Curve") | |||||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | ||||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | ||||||||
| VIBRATION | 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes | ||||||||
| SAFETY &EMC | SAFETY STANDARDS | IEC/UL 62368-1, BSMI CNS14336-1, EAC TP TC 004, KC K60950-1(for LRS-200-12/24 only),BIS IS13252(Part1): 2010/IEC 60950-1: 2005, AS/NZS62368.1 approved | |||||||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||||
| EMC EMISSION | Compliance to BSMI CNS13438, EAC TP TC 020,KC KN32,KN35(for LRS-200-12/24 only) | ||||||||
| EMC IMMUNITY | Compliance to EAC TP TC 020,KC KN32,KN35(for LRS-200-12/24 only) | ||||||||
| Others | MTBF | 347.5K hrs min. MIL-HDBK-217F (25℃) | |||||||
| DIMENSION | 215*115*30mm (L*W*H) | ||||||||
| PACKING | 0.66Kg; 15pcs/10.9Kg/0.78CUFT | ||||||||
Meanwell LRS-200 Series Features
l AC input range selectable by switch
l Withstand 300VAC surge input for 5 second
l Protections: Short circuit/Overload/Over voltage /Over temperature
l Cooling by free air convection
l 1U low profile
l Withstand 5G vibration test
l LED indicator for power on
l No load power consumption<0.75W
l 100% full load burn-in test
l High operating temperature up to 70℃
l Operating altitude up to 5000 meters
l High efficiency, long life and high reliability
l 3 years warranty
Meanwell LRS-200 Series Applications
l Industrial automation machinery
l Industrial control system
l Mechanical and electrical equipment
l Electronic instruments, equipment or apparatus
l Household appliances
Meanwell LRS-200 Series Mechanical Diagram
