LRS-150F
15.23
Details

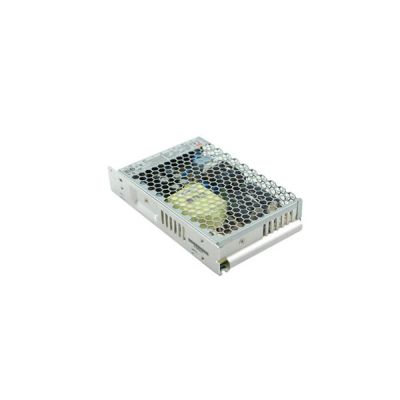

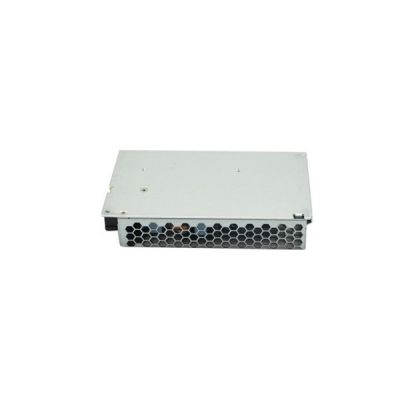

Meanwell LRS-150F series is a 1 50W single-output enclosed type power supply with 30mm of low-profile design. With adopting the full range 85~264VAC input, the entire series offers an output voltage line of 5V, 12V, 15V,24V, 36V and 48V. Apart from the high efficiency up to 90%, the design of metallic mesh case enhances the heat dissipation, and the whole series operates from -30 ℃through 70℃ under air convection with no fan. Offering an extremely low no load power consumption (less than 0.5W), it allows the end system to easily fit the worldwide energy requirement and complied with the international safety regulations such as TUV BS EN/EN62368-1,BS EN/EN60335-1,BS EN/EN61558-1/-2-16, UL62368-1 and GB4943.Moreever, it has the complete protection functions and 5G anti-vibration capability as well.Considering their high efficiency, long life and high reliability, Meanwell LRS-150F series functions as a high price-to-performance power supply solution for various industrial applications.
Meanwell LRS-150F Series Model Specifications
| Model | LRS-150F-5 | LRS-150F-12 | LRS-150F-15 | LRS-150F-24 | LRS-150F-36 | LRS-150F-48 | |
| Output | DC VOLTAGE | 5V | 12V | 15V | 24V | 36V | 48V |
| RATED CURRENT | 22A | 12.5A | 10A | 6.5A | 4.3A | 3.3A | |
| CURRENT RANGE | 0-22A | 0-12.5A | 0-10A | 0-6.5A | 0-4.3A | 0-3.3A | |
| RATED POWER | 110W | 150W | 150W | 156W | 154.8W | 158.4W | |
| RIPPLE & NOISE (max.) mVp-p | 100 | 150 | 150 | 200 | 200 | 200 | |
| VOLTAGE ADJ. RANGE | 4.5-5.5V | 10.2-13.8V | 13.5 ~ 18V | 21.6 ~ 28.8V | 32.4 ~ 39.6V | 43.2 ~ 52.8V | |
| VOLTAGE TOLERANCE | ±2% | ±1% | ±1% | ±1% | ±1% | ±1% | |
| LINE REGUL ATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGULATION | ±1% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| SETUP, RISE TIME | 500ms, 30ms/230VAC 500ms,30ms/115VAC at full load | ||||||
| HOLD UP TIME | 16ms/230VAC 12ms/115VAC at full load | ||||||
| Input | VOLTAGE RANGE | 85 ~ 264VAC 120 ~ 370VDC | |||||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||||
| EFFICIENCY (Typ.) | 85.00% | 87.50% | 89.00% | 89.00% | 89.00% | 90.00% | |
| AC CURRENT (Typ.) | 3A/115VAC 1.7A/230VAC | ||||||
| INRUSH CURRENT (Typ. ) | COLD STAR 60A/230VAC | ||||||
| LEAKAGE CURR ENT | <0.75mA / 240VAC | ||||||
| PROTECTION | OVERL OAD | 110 ~ 140% rated output power | |||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||||
| OVER VOLTAGE | 5.75-6.75V | 13.8 ~ 16.2V | 18.75 ~ 21.75V | 28.8 ~ 33.6V | 41.4 ~ 48.6V | 55.2 ~ 64.8V | |
| Protection type : Shut down o/p voltage, re-power on to recover | |||||||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃ (Refer to "Derating Curve") | |||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | ||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | ||||||
| VIBRATION | 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes | ||||||
| OVER VOLTAGE CATEGORY | Ⅲ; Compliance to BS EN/EN61558, BS EN/EN50178, BS EN/EN60664-1, BS EN/EN62477-1; altitude up to 2000 meters | ||||||
| SAFETY &EMC | SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1, BS EN/EN60335-1, BS EN/EN61558-1/-2-16,CCC GB4943.1, BSMI CNS14336-1,EAC TP TC004, AS/NZS 62368.1(by CB) approved | |||||
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC | ||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||
| EMC EMISSION | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, criteria A, EAC TP TC 020 | ||||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, criteria A, EAC TP TC 020 | ||||||
| Others | MTBF | 648.6K hrs min. MIL-HDBK-217F (25℃) | |||||
| DIMENSION | 159*97*30mm (L*W*H) | ||||||
| PACKING | 0.48Kg ; 30pcs/15.4Kg/0.75CUFT | ||||||
Meanwell LRS-150F Series Features
l Universal AC input/ Full range
l Withstand 300VAC surge input for 5 second
l No load power consumption<0.5W
l Miniature size and 1U low profile
l High operating temperature up to 70C
l Protections: Short circuit /Overload/Over voltage/Over temperature
l Cooling by free air convection
l Compliance to IEC/BS EN/EN 60335-1(PD3) andIEC/BS EN/EN61558-1, 2-16 for household appliances
l Operating altitude up to 5000 meters
l Withstand 5G vibration test
l High efficiency, long life and high reliability
l LED indicator for power on
l Over voltage category III
l 100% full load burn-in test
l 3 years warranty
Meanwell LRS-150F Series Applications
l Household appliances
l Industrial control system
l Industrial automation machinery
l Mechanical and electrical equipment
l Electronic instruments, equipment or apparatus
Meanwell LRS-150F Series Mechanical Diagram
