LRS-150F-5
15.23
Details

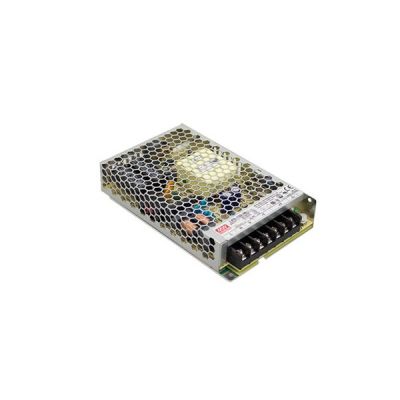

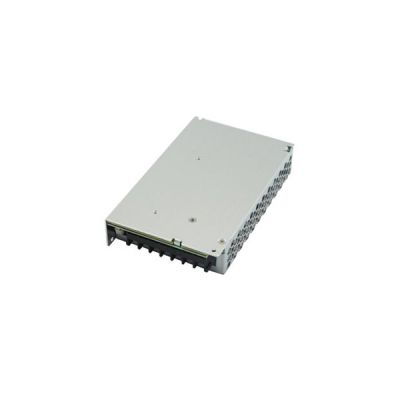

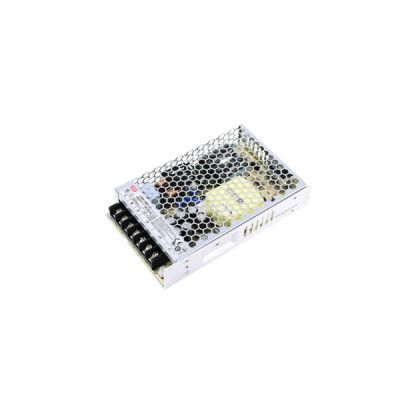

Meanwell LRS-150F-5 is 150W single-output enclosed type power supply with 30mm of low-profile design and 5V22A0-22A110W. In addition to the high efficiency up to 90%, the metallic mesh case design enhances the heat dissipation, and it can operates from -30 ℃through 70℃ under air convection with no fan. By offering an extremely low no load power consumption (less than 0.5W), it permits the end system to easily meet the worldwide energy requirement and complied with the international safety regulations such as TUV BS EN/EN62368-1,BS EN/EN60335-1,BS EN/EN61558-1/-2-16, UL62368-1 and GB4943.Thanks to its high efficiency, long life and high reliability, Meanwell LRS-150F-5 is a high price-to-performance power supply solution for various industrial areas.
Meanwell LRS-150F-5 Specifications
| Model | LRS-150F-5 | |
| Output | DC VOLTAGE | 5V |
| RATED CURRENT | 22A | |
| CURRENT RANGE | 0-22A | |
| RATED POWER | 110W | |
| RIPPLE & NOISE (max.) mVp-p | 100 | |
| VOLTAGE ADJ. RANGE | 4.5-5.5V | |
| VOLTAGE TOLERANCE | ±2% | |
| LINE REGUL ATION | ±0.5% | |
| LOAD REGULATION | ±1% | |
| SETUP, RISE TIME | 500ms, 30ms/230VAC 500ms,30ms/115VAC at full load | |
| HOLD UP TIME | 16ms/230VAC 12ms/115VAC at full load | |
| Input | VOLTAGE RANGE | 85 ~ 264VAC 120 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 85.00% | |
| AC CURRENT (Typ.) | 3A/115VAC 1.7A/230VAC | |
| INRUSH CURRENT (Typ. ) | COLD STAR 60A/230VAC | |
| LEAKAGE CURR ENT | <0.75mA / 240VAC | |
| PROTECTION | OVERL OAD | 110 ~ 140% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 5.75-6.75V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes | |
| OVER VOLTAGE CATEGORY | Ⅲ; Compliance to BS EN/EN61558, BS EN/EN50178, BS EN/EN60664-1, BS EN/EN62477-1; altitude up to 2000 meters | |
| SAFETY &EMC | SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1, BS EN/EN60335-1, BS EN/EN61558-1/-2-16,CCC GB4943.1, BSMI CNS14336-1,EAC TP TC004, AS/NZS 62368.1(by CB) approved |
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, criteria A, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, criteria A, EAC TP TC 020 | |
| Others | MTBF | 648.6K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 159*97*30mm (L*W*H) | |
| PACKING | 0.48Kg ; 30pcs/15.4Kg/0.75CUFT | |
Meanwell LRS-150F-5 Features
l 3 years warranty
l Over voltage category III
l 100% full load burn-in test
l Universal AC input/ Full range
l LED indicator for power on
l Withstand 5G vibration test
l No load power consumption<0.5W
l Miniature size and 1U low profile
l Cooling by free air convection
l High operating temperature up to 70℃
l Operating altitude up to 5000 meters
l High efficiency, long life and high reliability
l Withstand 300VAC surge input for 5 second
l Protections: Short circuit /Overload/Over voltage/Over temperature
l Compliance to IEC/BS EN/EN 60335-1(PD3) andIEC/BS EN/EN61558-1, 2-16 for household appliances
Meanwell LRS-150F-5 Applications
l Household appliances
l Industrial control system
l Industrial automation machinery
l Mechanical and electrical equipment
l Electronic instruments, equipment or apparatus
Meanwell LRS-150F-5 Mechanical Diagram
