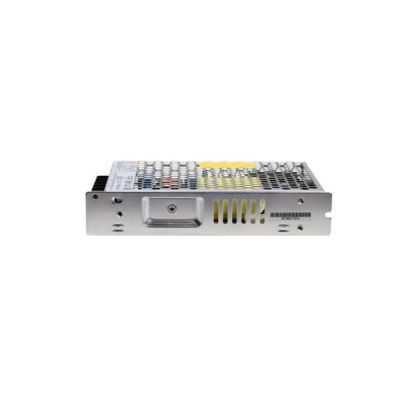

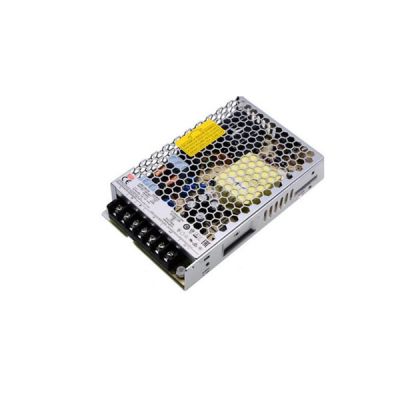

Meanwell LRS-150 Series is a 150W single-output enclosed type power supply with 30mm low profile design. By adopting the input of 11 5VAC or 230V AC, the entire series offers an output voltage line of 12V, 15V, 24V, 36V and 48V. Apart from the high efficiency reaching up to 90%, the metallic mesh case design enhances the heat dissipation, that the whole series works from -30C through 70C under air convection without fan.With delivering an extremely low no load power consumption (less than 0. 5W), it allows the end system to easily fit the worldwide energy requirement. Moreover, LRS- 150 has the complete protection functions and 5G anti-vibration capability as well. Meanwell LRS-1 50 series functions as a high price-to-performance power supply solution for various industrial fields.
Meanwell LRS-150 Series Model Specifications
| Model | LRS-150-12 | LRS-150-15 | LRS-150-24 | LRS-150-36 | LRS-150-48 | |
| Output | DC VOLTAGE | 12V | 15V | 24V | 36V | 48V |
| RATED CURRENT | 12.5A | 10A | 6.5A | 4.3A | 3.3A | |
| CURRENT RANGE | 0-12.5A | 0-10A | 0-6.5A | 0-4.3A | 0-3.3A | |
| RATED POWER | 150W | 150W | 156W | 154.8W | 158.4W | |
| RIPPLE & NOISE (max.) | 150 mVp-p | 150 mVp-p | 200 mVp-p | 200 mVp-p | 200 mVp-p | |
| VOLTAGE ADJ. RANGE | 10.2-13.8V | 13.5 ~ 18V | 21.6 ~ 28.8V | 32.4 ~ 39.6V | 43.2 ~ 52.8V | |
| VOLTAGE TOLERANCE | ±1% | ±1% | ±1% | ±1% | ±1% | |
| LINE REGUL ATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| SETUP, RISE TIME | 500ms, 30ms/230VAC 500ms,30ms/115VAC at full load | |||||
| HOLD UP TIME | 40ms/230VAC 35ms/115VAC at full load | |||||
| Input | VOLTAGE RANGE | 85 ~ 132VAC / 170 ~ 264VAC by switch 240 ~ 370VDC(switch on 230VAC) | ||||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||
| EFFICIENCY (Typ.) | 87.50% | 88.50% | 89.00% | 89.00% | 90.00% | |
| AC CURRENT (Typ.) | 3A/115VAC 1.7A/230VAC | |||||
| INRUSH CURRENT (Typ. ) | COLD STAR 60A/230VAC | |||||
| LEAKAGE CURR ENT | <0.75mA / 240VAC | |||||
| PROTECTION | OVERL OAD | 110 ~ 140% rated output power | ||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||||
| OVER VOLTAGE | 13.8 ~ 16.2V | 18.75 ~ 21.75V | 28.8 ~ 33.6V | 41.4 ~ 48.6V | 55.2 ~ 64.8V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||||||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃ (Refer to "Derating Curve") | ||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||||
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |||||
| VIBRATION | 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes | |||||
| OVER VOLTAGE CATEGORY | Ⅲ; Compliance to BS EN/EN61558, BS EN/EN50178, BS EN/EN60664-1, BS EN/EN62477-1; altitude up to 2000 meters | |||||
| SAFETY &EMC | SAFETY STANDARDS | UL 62368-1, TUV BS EN/EN62368-1, BS EN/EN60335-1, BS EN/EN61558-1/-2-16,CCC GB4943.1,BSMI CNS14336-1, EAC TP TC 004,S/NZS62368.1(by CB),KC K60950-1(for LRS-100-12/24 only), BIS IS13252(Part1): 2010/IEC 60950-1: 2005 approved | ||||
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC | |||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||||
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN55014, BS EN/EN61000-3-2,-3, GB/T 9254, BSMI CNS13438, EAC TP TC 020,KC KN32,KN35(for LRS-100-12/24 only) |
|||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, criteria A, EAC TP TC 020,KC KN32,KN35(for LRS-100-12/24 only) | |||||
| Others | MTBF | 601K hrs min. MIL-HDBK-217F (25℃) | ||||
| DIMENSION | 159*97*30mm (L*W*H) | |||||
| PACKING | 0.48Kg ; 30pcs/15.4Kg/0.75CUFT | |||||
Meanwell LRS-150 Series Model Features
l AC input range selectable by switch
l Withstand 300VAC surge input for 5 second
l No load power consumption<O.5W
l Miniature size and 1U low profile
l High operating temperature up to 70C
l Protections: Short circuit/Overload/Over voltage/Over temperature
l Cooling by free air convection
l Compliance to IEC/BS EN/EN 60335-1(PD3) and IEC/BS EN/EN61 558-1, 2-16 for household appliances
l Operating altitude up to 5000 meters
l Withstand 5G vibration test
l High efficiency, long life andhigh reliability
l LED indicator for power on
l Over voltage category III
l 100% full load burn-in test
l 3 years warranty
Meanwell LRS-150 Series Applications
l Industrial automation machinery
l Industrial control system
l Mechanical and electrical equipment
l Electronic instruments, equipment orapparatus
l Household appliances

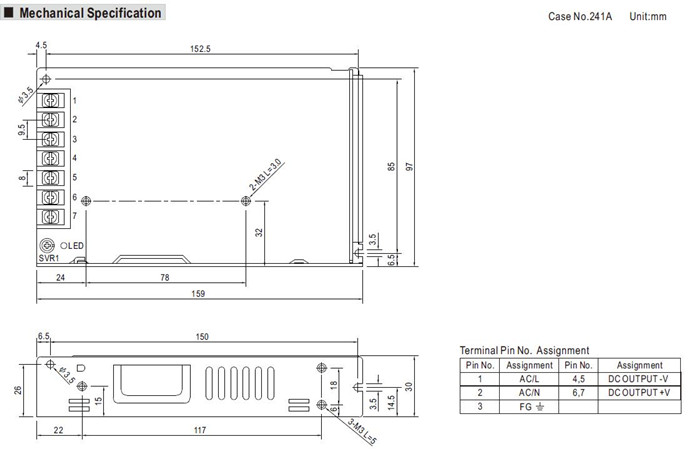

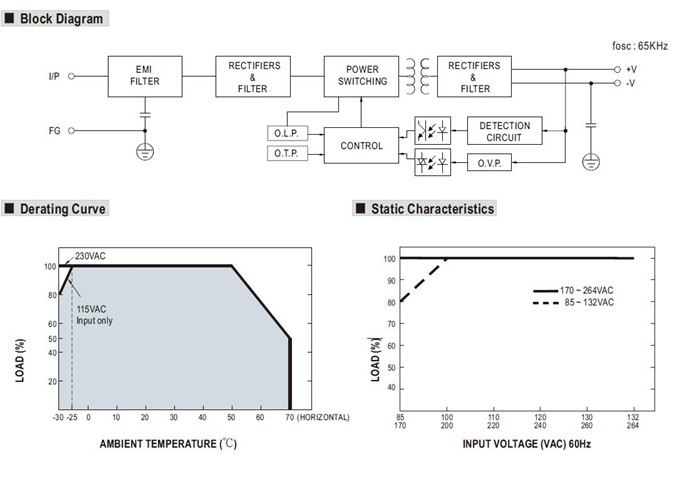

Meanwell LRS-150 Series Mechanical Diagram
