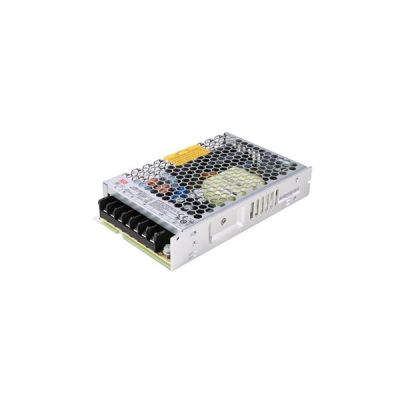

LRS-150-48
13.76
Details
Meanwell LRS-150-48 is a 150W single-output enclosed type power supply with 48V3.3A0-3.3A158.4W and 30mm low profile. In addition to the high efficiency up to 90%, the metallic mesh case design enhances its heat dissipation, and operate from -30 ℃through 70 ℃under air convection with no fan. By offering an extremely low no load power consumption less than 0. 5W, LRS-150-48 permits the end system to easily meet with the worldwide energy requirement and also international safety regulations such as TUV BS EN/EN62368-1BS EN/EN60335-1, BS EN/EN61 558-1/-2-16, UL62368-1 and GB4943. Furthermore, it has the complete protection functions and 5G anti-vibration capability. Thanks to high efficiency, long life and high reliability, Meanwell LRS-1 50-48 functions as a high price-to-performance power supply solution for various industrial applications.
Meanwell LRS-150-48 Specifications
| Model | LRS-150-48 | |
| Output | DC VOLTAGE | 48V |
| RATED CURRENT | 3.3A | |
| CURRENT RANGE | 0-3.3A | |
| RATED POWER | 158.4W | |
| RIPPLE & NOISE (max.) mVp-p | 200 | |
| VOLTAGE ADJ. RANGE | 43.2 ~ 52.8V | |
| VOLTAGE TOLERANCE | ±1% | |
| LINE REGUL ATION | ±0.5% | |
| LOAD REGULATION | ±0.5% | |
| SETUP, RISE TIME | 500ms, 30ms/230VAC 500ms,30ms/115VAC at full load | |
| HOLD UP TIME | 40ms/230VAC 35ms/115VAC at full load | |
| Input | VOLTAGE RANGE | 85 ~ 132VAC / 170 ~ 264VAC by switch 240 ~ 370VDC(switch on 230VAC) |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 90.00% | |
| AC CURRENT (Typ.) | 3A/115VAC 1.7A/230VAC | |
| INRUSH CURRENT (Typ. ) | COLD STAR 60A/230VAC | |
| LEAKAGE CURR ENT | <0.75mA / 240VAC | |
| PROTECTION | OVERL OAD | 110 ~ 140% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 55.2 ~ 64.8V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes | |
| OVER VOLTAGE CATEGORY | Ⅲ; Compliance to BS EN/EN61558, BS EN/EN50178, BS EN/EN60664-1, BS EN/EN62477-1; altitude up to 2000 meters | |
| SAFETY &EMC | SAFETY STANDARDS | UL 62368-1, TUV BS EN/EN62368-1, BS EN/EN60335-1, BS EN/EN61558-1/-2-16,CCC GB4943.1,BSMI CNS14336-1, EAC TP TC 004,S/NZS62368.1(by CB),KC K60950-1(for LRS-100-12/24 only), BIS IS13252(Part1): 2010/IEC 60950-1: 2005 approved |
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN55014, BS EN/EN61000-3-2,-3, GB/T 9254, BSMI CNS13438, EAC TP TC 020,KC KN32,KN35(for LRS-100-12/24 only) |
|
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, criteria A, EAC TP TC 020,KC KN32,KN35(for LRS-100-12/24 only) | |
| Others | MTBF | 601K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 159*97*30mm (L*W*H) | |
| PACKING | 0.48Kg ; 30pcs/15.4Kg/0.75CUFT | |
Meanwell LRS-150-48 Features
l AC input range selectable by switch
l Withstand 300VAC surge input for 5 second
l No load power consumption<O.5W
l Miniature size and 1U low profile
l High operating temperature up to 70C
l Cooling by free air convection
l Operating altitude up to 5000 meters
l Withstand 5G vibration test
l High efficiency, long life andhigh reliability
l LED indicator for power on
l Over voltage category III
l 100% full load burn-in test
l 3 years warranty
l Protections: Short circuit/Overload/Over voltage/Over temperature
Meanwell LRS-150-48 Applications
l Industrial automation machinery
l Industrial control system
l Mechanical and electrical equipment
l Electronic instruments, equipment orapparatus
l Household appliances
Meanwell LRS-150-48 Mechanical Diagram
