LRS-150-12
13.02
Details

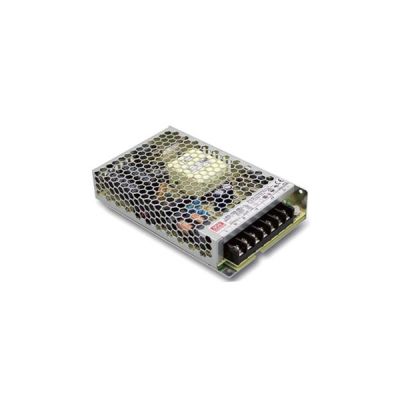

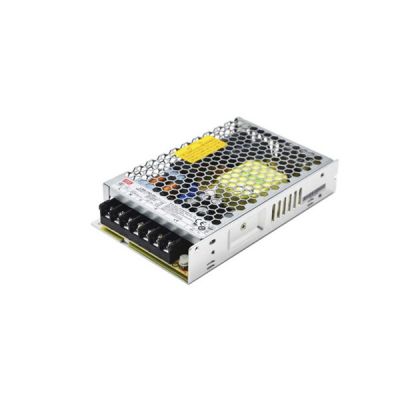

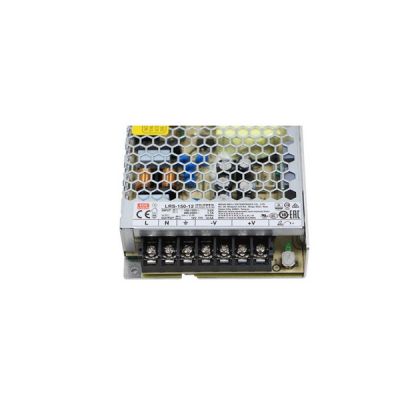

Meanwell LRS-150-12 is a 150W single-output enclosed type power supply with 30mm low profile design and 12V12.5A0-12.5A150W. In addition to the high efficiency up to 90%, the metallic mesh case design increases the heat dissipation, and works from -30C through 70C under air convection without a fan. Delivering an extremely low no load power consumption, this allows the end system to easily meet the worldwide energy requirement. It is complied with the international safety regulations such as TUV BS EN/EN62368-1BS EN/EN60335-1, BS EN/EN61 558-1/-2-16, UL62368-1 and GB4943.Moreover, it has the complete protection functions and 5G anti-vibration capability as well. Meanwell LRS-1 50-12 is a high price-to-performance power supply solution for various industrial areas.
Meanwell LRS-150-12 Specifications
| Model | LRS-150-12 | |
| Output | DC VOLTAGE | 12V |
| RATED CURRENT | 12.5A | |
| CURRENT RANGE | 0-12.5A | |
| RATED POWER | 150W | |
| RIPPLE & NOISE (max.) mVp-p | 150 | |
| VOLTAGE ADJ. RANGE | 10.2-13.8V | |
| VOLTAGE TOLERANCE | ±1% | |
| LINE REGUL ATION | ±0.5% | |
| LOAD REGULATION | ±0.5% | |
| SETUP, RISE TIME | 500ms, 30ms/230VAC 500ms,30ms/115VAC at full load | |
| HOLD UP TIME | 40ms/230VAC 35ms/115VAC at full load | |
| Input | VOLTAGE RANGE | 85 ~ 132VAC / 170 ~ 264VAC by switch 240 ~ 370VDC(switch on 230VAC) |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 87.50% | |
| AC CURRENT (Typ.) | 3A/115VAC 1.7A/230VAC | |
| INRUSH CURRENT (Typ. ) | COLD STAR 60A/230VAC | |
| LEAKAGE CURR ENT | <0.75mA / 240VAC | |
| PROTECTION | OVERL OAD | 110 ~ 140% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 13.8 ~ 16.2V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes | |
| OVER VOLTAGE CATEGORY | Ⅲ; Compliance to BS EN/EN61558, BS EN/EN50178, BS EN/EN60664-1, BS EN/EN62477-1; altitude up to 2000 meters | |
| SAFETY &EMC | SAFETY STANDARDS | UL 62368-1, TUV BS EN/EN62368-1, BS EN/EN60335-1, BS EN/EN61558-1/-2-16,CCC GB4943.1,BSMI CNS14336-1, EAC TP TC 004,S/NZS62368.1(by CB),KC K60950-1(for LRS-100-12/24 only), BIS IS13252(Part1): 2010/IEC 60950-1: 2005 approved |
| WITHSTAND VOLTAGE | I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN55014, BS EN/EN61000-3-2,-3, GB/T 9254, BSMI CNS13438, EAC TP TC 020,KC KN32,KN35(for LRS-100-12/24 only) |
|
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, criteria A, EAC TP TC 020,KC KN32,KN35(for LRS-100-12/24 only) | |
| Others | MTBF | 601K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 159*97*30mm (L*W*H) | |
| PACKING | 0.48Kg ; 30pcs/15.4Kg/0.75CUFT | |
Meanwell LRS-150-12 Features
l 3 years warranty
l Over voltage category III
l 100% full load burn-in test
l LED indicator for power on
l Withstand 5G vibration test
l AC input range selectable by switch
l No load power consumption<O.5W
l Miniature size and 1U low profile
l High operating temperature up to 70C
l Cooling by free air convection
l Operating altitude up to 5000 meters
l High efficiency, long life and high reliability
l Withstand 300VAC surge input for 5 second
l Protections: Short circuit/Overload/Over voltage/Over temperature
l Compliance to IEC/BS EN/EN 60335-1(PD3) and IEC/BS EN/EN61 558-1, 2-16 for household appliances
Meanwell LRS-150-12 Applications
l Industrial automation machinery
l Industrial control system
l Mechanical and electrical equipment
l Electronic instruments, equipment orapparatus
l Household appliances
Meanwell LRS-150-12 Mechanical Diagram
