LPV-60
8.02

LPV-60

As low as $8.02

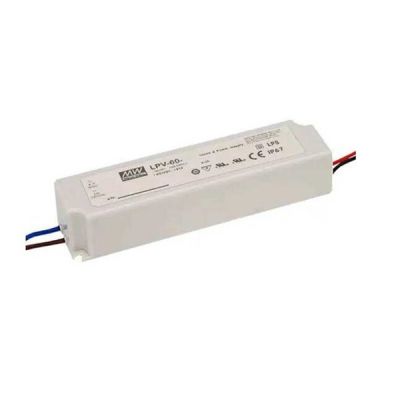

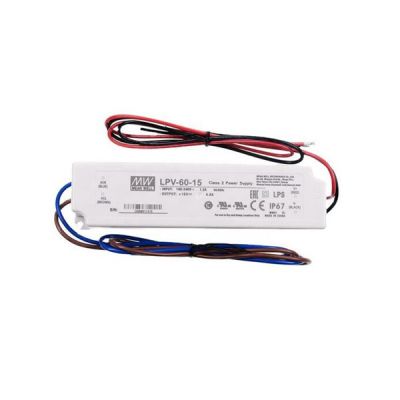

Meanwell 60W Single Output Switching Power Supply

- +
Availability:In stock
SKU Meanwell LPV-60
Brand Meanwell
Details

Meanwell LPV-60 Series is 60W Single Output Switching Power Supply highlighting constant voltage and universal AC input/Full range. Since the work efficiency reaches high up to 86%, and fully encapsulated design enhances heat dissipation. it is able to operate from -30℃ through 65℃ under free air convection. At the same time, LPV-60 delivers extremely low no load power consumption, allowing the end system to easily meet the worldwide energy requirement. Apart from them, the series is equipped with various protections such as Short circuit, Overload and Over voltage. Considering its high efficiency, excellent quality, and competitive price, Meanwell LPV-60 Series serves as ideally suitable for LED related fixture or appliance such as LED decoration or advertisement devices, etc.

Meanwell LPV-60 price and specs 60w Power Supply LPV-60-5 LPV-60-12 LPV-60-15 LPV-60-24 LPV-60-36 LPV-60-48 YCICT

Meanwell LPV-60 Series Model Specifications

Model LPV-60-5 LPV-60-12 LPV-60-15 LPV-60-24 LPV-60-36 LPV-60-48
OUTPUT DC VOLTAGE 5V 12V 15V 24V 36V 48V
RATED CURRENT 8A 5A 4A 2.5A 1.67A 1.25A
CURRENT RANGE 0-8A 0-5A 0-4A 0-2.5A 0-1.6A 0-1.25A
RATED POWER 40W 60W 60W 60W 60W 60W
RIPPLE & NOISE (max.) 80mVp-p 120mVp-p 120mVp-p 150mVp-p 150mVp-p 150mVp-p
VOLTAGE TOL ERANCE ±8.0% ±5.0%
LINE REGULATION ±1.0%
LOAD REGULATION ±6.0% ±2.0%
SETUP, RISE TIME 500ms, 20ms / 230VAC 500ms, 20ms / 115VAC at full load(for 5~36V) ; 500ms, 30ms / 230VAC 500ms, 30ms / 115VAC at full load(for 48V)
HOLD UP TIME (Typ.) 50ms/230VAC 16ms/115VAC at full load
Input VOLTAGE RANGE 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 76.00% 83.00% 83.00% 86.00% 86.00% 86.00%
AC CURRENT (Typ.) 1.2A/115VAC 1A/230VAC
INRUSH CURRENT(Typ.) COLD START 60A(twidth=525μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER 3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT 0.25mA / 240VAC
PROTECTION OVERLOAD 110 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 5.75-6.75V 13.8-16.2V 17.25-20.25V 27.6-32.4V 41.4-48.6V 55.2-64.8V
Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT WORKING TEMP. -30 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS UL879(except for LPV-60-5), UL1310(except for LPV-60-5), CSA C22.2 No. 207-M89(except for LPV-60-5, LPV-60-48), CAN/CSA C22.2 No. 223-M91(except for LPV-60-5,LPV-60-48), BIS IS15885(for LPV-60-12,LPV-60-24 only), EAC TP TC 004, IP67, IEC62368-1 , BS EN/EN62368-1 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC
ISOLATION RESISTANCE I/P-O/P:>100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2 Class A, BS EN/EN61000-3-3, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020
Others MTBF 5188.4K hrs min. Telcordia SR-332 (Bellcore) ; 732.1Khrs min. MIL-HDBK-217F (25)
DIMENSION 162.5*42.5*32mm (L*W*H)
PACKING 0.4Kg; 32pcs/13.8Kg/0.63CUFT

Meanwell LPV-60 Series Features

l  Constant voltage design

l  Universal AC input /Full range

l  Withstand 300VAC surge input for 5 seconds

l  Protections: Short circuit/Over load/Over voltage

l  Cooling by free air convection

l  Fully encapsulated with IP67 level

l  Fully isolated plastic case

l  Class I power unit, no FG

l  Class 2 power unit

l  Pass LPS

l  Suitable for LED related fixture or appliance such as LED Decoration or Advertisement devices

l  100% full load burn-in test

l  Low cost, high reliability

l  2 years warranty

Meanwell LPV-60 price and specs Power Supply Low cost LPV-60-5 LPV-60-12 LPV-60-15 LPV-60-24 LPV-60-36 LPV-60-48 YCICT

Meanwell LPV-60 Series Mechanical Diagram

Meanwell LPV-60 price and specs Power Supply LPV-60-5 LPV-60-12 LPV-60-15 LPV-60-24 LPV-60-36 LPV-60-48 YCICT
