LPV-60-5
8.02
Details

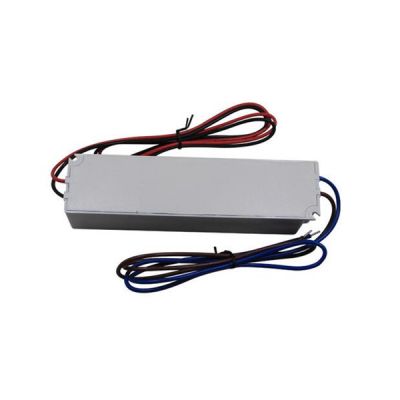

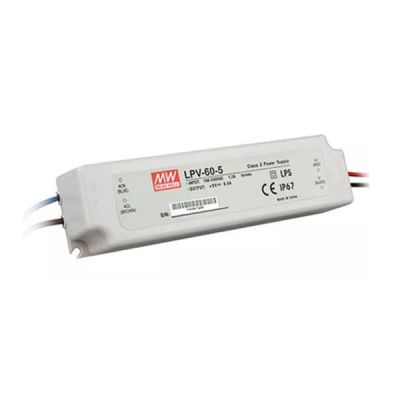

Meanwell LPV-60-5 is 60W Single Output Switching Power Supply with 5V8A0-8A40W80mVp-p±8.0%±1.0%±6.0%47~63Hz76.00%. The product features constant voltage and universal AC input/Full range. As the work efficiency reaches high up to 86%, and fully encapsulated design enhances heat dissipation. it is able to operate from -30℃ through 65℃ under air convection with no fan. Meanwhile, LPV-60-5 delivers extremely low no load power consumption, permitting end system to easily meet the worldwide energy requirement. In addition, the item is equipped with various protections such as Short circuit, Overload and Over voltage. Due to its high efficiency, excellent quality, and competitive price, Meanwell LPV-60-5 is ideally suitable for LED related fixture or appliance such as LED decoration or advertisement devices, etc.
Meanwell LPV-60-5 Specifications
| Model | LPV-60-5 | |
| OUTPUT | DC VOLTAGE | 5V |
| RATED CURRENT | 8A | |
| CURRENT RANGE | 0-8A | |
| RATED POWER | 40W | |
| RIPPLE & NOISE (max.) | 80mVp-p | |
| VOLTAGE TOL ERANCE | ±8.0% | |
| LINE REGULATION | ±1.0% | |
| LOAD REGULATION | ±6.0% | |
| SETUP, RISE TIME | 500ms, 20ms / 230VAC 500ms, 20ms / 115VAC at full load(for 5~36V) ; 500ms, 30ms / 230VAC 500ms, 30ms / 115VAC at full load(for 48V) | |
| HOLD UP TIME (Typ.) | 50ms/230VAC 16ms/115VAC at full load | |
| Input | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 76.00% | |
| AC CURRENT (Typ.) | 1.2A/115VAC 1A/230VAC | |
| INRUSH CURRENT(Typ.) | COLD START 60A(twidth=525μs measured at 50% Ipeak) at 230VAC | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC | |
| LEAKAGE CURRENT | 0.25mA / 240VAC | |
| PROTECTION | OVERLOAD | 110 ~ 150% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 5.75-6.75V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | UL879(except for LPV-60-5), UL1310(except for LPV-60-5), CSA C22.2 No. 207-M89(except for LPV-60-5, LPV-60-48), CAN/CSA C22.2 No. 223-M91(except for LPV-60-5,LPV-60-48), BIS IS15885(for LPV-60-12,LPV-60-24 only), EAC TP TC 004, IP67, IEC62368-1 , BS EN/EN62368-1 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2 Class A, BS EN/EN61000-3-3, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020 | |
| Others | MTBF | 5188.4K hrs min. Telcordia SR-332 (Bellcore) ; 732.1Khrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 162.5*42.5*32mm (L*W*H) | |
| PACKING | 0.4Kg; 32pcs/13.8Kg/0.63CUFT | |
Meanwell LPV-60-5 Features
l Pass LPS
l 100% full load burn-in test
l Low cost, high reliability
l 2 years warranty
l Constant voltage design
l Universal AC input /Full range
l Withstand 300VAC surge input for 5 seconds
l Protections: Short circuit/Over load/Over voltage
l Cooling by free air convection
l Fully encapsulated with IP67 level
l Fully isolated plastic case
l Class I power unit, no FG
l Class 2 power unit
l Suitable for LED related fixture or appliance such as LED Decoration or Advertisement devices
Meanwell LPV-60-5 Mechanical Diagram
