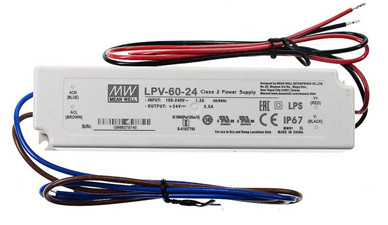

LPV-60-24
8.83

LPV-60-24

$8.83

Meanwell 60W Single Output Switching Power Supply with 24V2.5A0-2.5A60W150mVp-p±5.0%±1.0%±2.0%47~63Hz86.00%

- +
Availability:In stock
SKU Meanwell LPV-60-24
Brand Meanwell
Details

Meanwell LPV-60-24 is 60W Single Output Switching Power Supply with 24V2.5A0-2.5A60W150mVp-p±5.0%±1.0%±2.0%47~63Hz86.00%. The unit stands out with constant voltage and universal AC input/Full range. As the efficiency reaches high up to 86%, and fully encapsulated design enhances heat dissipation. LPV-60-24 could work from -30℃ through 65℃ under free air convection. Besides them, the item delivers extremely low no load power consumption, allowing end system to easily satisfy the worldwide energy requirement and safety standards. Apart from them, it is provided with various protections such as Short circuit, Overload and Over voltage. In view of its high efficiency, excellent quality, and competitive price, Meanwell LPV-60-24 is ideally suitable for LED related fixture or appliance such as LED decoration or advertisement devices, etc.

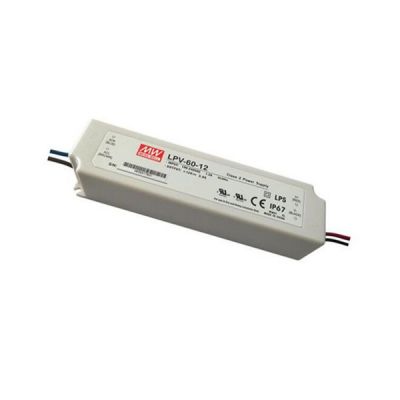

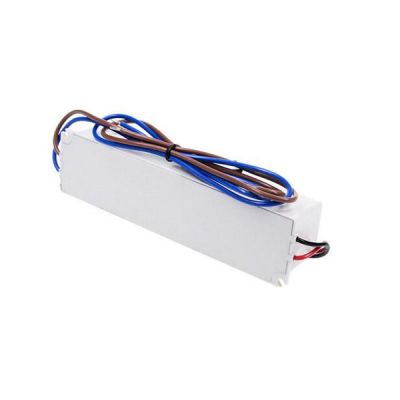

Meanwell LPV-60-24 price and specs 60w Power Supply LPV-60-5 LPV-60-12 LPV-60-15 LPV-60-24 LPV-60-36 LPV-60-48 YCICT

Meanwell LPV-60-24 Specifications

Model LPV-60-24
OUTPUT DC VOLTAGE 24V
RATED CURRENT 2.5A
CURRENT RANGE 0-2.5A
RATED POWER 60W
RIPPLE & NOISE (max.) 150mVp-p
VOLTAGE TOL ERANCE ±5.0%
LINE REGULATION ±1.0%
LOAD REGULATION ±2.0%
SETUP, RISE TIME 500ms, 20ms / 230VAC 500ms, 20ms / 115VAC at full load(for 5~36V) ; 500ms, 30ms / 230VAC 500ms, 30ms / 115VAC at full load(for 48V)
HOLD UP TIME (Typ.) 50ms/230VAC 16ms/115VAC at full load
Input VOLTAGE RANGE 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 86.00%
AC CURRENT (Typ.) 1.2A/115VAC 1A/230VAC
INRUSH CURRENT(Typ.) COLD START 60A(twidth=525μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER 3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT 0.25mA / 240VAC
PROTECTION OVERLOAD 110 ~ 150% rated output power
Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 27.6-32.4V
Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT WORKING TEMP. -30 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS UL879(except for LPV-60-5), UL1310(except for LPV-60-5), CSA C22.2 No. 207-M89(except for LPV-60-5, LPV-60-48), CAN/CSA C22.2 No. 223-M91(except for LPV-60-5,LPV-60-48), BIS IS15885(for LPV-60-12,LPV-60-24 only), EAC TP TC 004, IP67, IEC62368-1 , BS EN/EN62368-1 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC
ISOLATION RESISTANCE I/P-O/P:>100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2 Class A, BS EN/EN61000-3-3, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020
Others MTBF 5188.4K hrs min. Telcordia SR-332 (Bellcore) ; 732.1Khrs min. MIL-HDBK-217F (25)
DIMENSION 162.5*42.5*32mm (L*W*H)
PACKING 0.4Kg; 32pcs/13.8Kg/0.63CUFT

Meanwell LPV-60-24 Features

l  Pass LPS

l  2 years warranty

l  Class 2 power unit

l  Fully isolated plastic case

l  Class I power unit, no FG

l  100% full load burn-in test

l  Low cost, high reliability

l  Constant voltage design

l  Cooling by free air convection

l  Fully encapsulated with IP67 level

l  Universal AC input /Full range

l  Withstand 300VAC surge input for 5 seconds

l  Protections: Short circuit/Over load/Over voltage

l  Suitable for LED related fixture or appliance such as LED Decoration or Advertisement devices

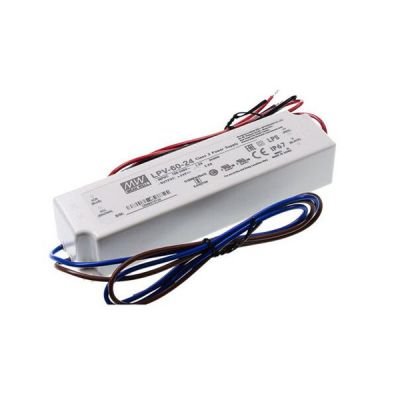

Meanwell LPV-60-24 price and specs 60w Power Supply LPV-60-5 LPV-60-12 LPV-60-15 LPV-60-24 LPV-60-36 LPV-60-48 YCICT

Meanwell LPV-60-24 Mechanical Diagram

Meanwell LPV-60-24 price and datasheet 60w Power Supply LPV-60-5 LPV-60-12 LPV-60-15 LPV-60-24 LPV-60-36 LPV-60-48 YCICT
