LPV-35
7.03
Details

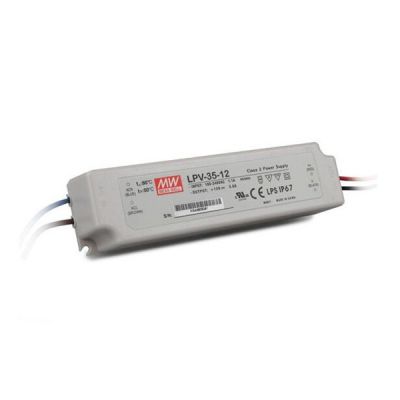

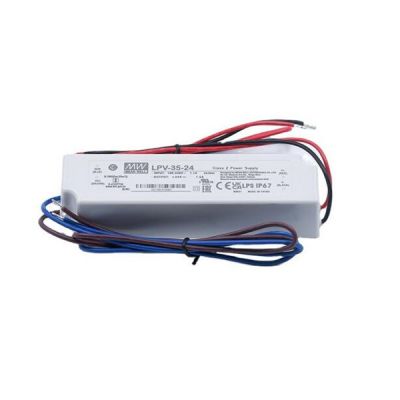

Meanwell LPV-35 Series is 35W Single Output Switching Power Supply highlighting constant voltage and universal AC input/Full range. At the same time, the work efficiency reaches high up to 85%, and fully encapsulated design enhances heat dissipation. In addition, LPV-35 could operate from -30℃ through 65℃ under free air convection, and delivers extremely low no load power consumption. This permits the end system to easily meet the worldwide energy requirement. Apart from them, LPV-35 is equipped with various protections like Short circuit, Overload and Over voltage. Considering its high efficiency, excellent quality, and competitive price, Meanwell LPV-35 Series serves as ideally suitable for LED related fixture or appliance such as LED Decoration or Advertisement devices, etc.
Meanwell LPV-35 Series Model Specifications
| Model | LPV-35-5 | LPV-35-12 | LPV-35-15 | LPV-35-24 | LPV-35-36 | |
| OUTPUT | DC VOLTAGE | 5V | 12V | 15V | 24V | 36V |
| RATED CURRENT | 5A | 3A | 2.4A | 1.5A | 1A | |
| CURRENT RANGE | 0-6A | 0-3A | 0-2.4A | 0-1.5A | 0-1A | |
| RATED POWER | 30W | 36W | 36W | 36W | 36W | |
| RIPPLE & NOISE (max.) | 80mVp-p | 120mVp-p | 120mVp-p | 150mVp-p | 150mVp-p | |
| VOLTAGE TOL ERANCE | ±6.0% | ±5.0% | ||||
| LINE REGULATION | ±1.0% | |||||
| LOAD REGULATION | ±4.0% | ±2.0% | ||||
| SETUP, RISE TIME | 500ms, 20ms / 230VAC 500ms, 20ms / 115VAC at full load | |||||
| HOLD UP TIME (Typ.) | 50ms/230VAC 16ms/115VAC at full load | |||||
| Input | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC | ||||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||
| EFFICIENCY (Typ.) | 77.00% | 84.00% | 84.00% | 85.00% | 85.00% | |
| AC CURRENT (Typ.) | 1.1A/115VAC 0.7A/230VAC | |||||
| INRUSH CURRENT(Typ.) | COLD START 55A(twidth=510μs measured at 50% Ipeak) at 230VAC | |||||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 4 units (circuit breaker of type B) / 7 units (circuit breaker of type C) at 230VAC | |||||
| LEAKAGE CURRENT | 0.25mA / 240VAC | |||||
| PROTECTION | OVERLOAD | 110 ~ 150% rated output power | ||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||||
| OVER VOLTAGE | 5.75-6.75V | 13.8-16.2V | 17.25-20.25V | 27.6-32.4V | 41.4-48.6V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||||||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +65℃ (Refer to "Derating Curve") | ||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |||||
| SAFETY & EMC | SAFETY STANDARDS | UL1310 class 2, CAN/CSA No. 223-M91, BIS IS15885(for LPV-35-12,LPV-35-24 only), IEC62368-1, EAC TP TC 004, IP67, BS EN/EN62368-1 approved | ||||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC | |||||
| ISOLATION RESISTANCE | I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH | |||||
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2 Class A, BS EN/EN61000-3-3, EAC TP TC 020 | |||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020 | |||||
| Others | MTBF | 5170.3K hrs min. Telcordia SR-332 (Bellcore) ; 743.5Khrs min. MIL-HDBK-217F (25℃) | ||||
| DIMENSION | 148*40*30mm (L*W*H) | |||||
| PACKING | 0.34Kg; 40pcs/14.6Kg/0.70CUFT | |||||
Meanwell LPV-35 Series Features
l Constant voltage design
l Universal AC input / Full range
l Withstand 300VAC surge input for 5 seconds
l Protections: Short circuit/Overload/Over voltage
l Cooling by free air convection
l Fully encapsulated with IP67 level
l Fully isolated plastic case
l Class II power unit, no FG
l Class 2 power unit
l Pass LPS
l Suitable for LED related fixture or appliance (such as LED Decoration or Advertisement devices
l 100% full load burn-in test
l Low cost, high reliability
l 2 years warranty
Meanwell LPV-35 Series Mechanical Diagram
