LPV-35-36
8.15
Details

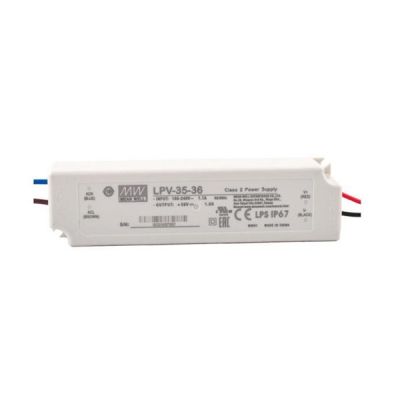

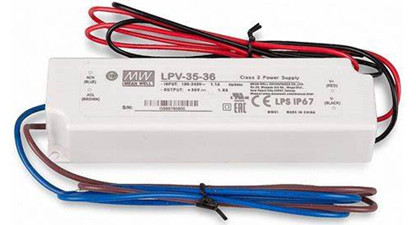

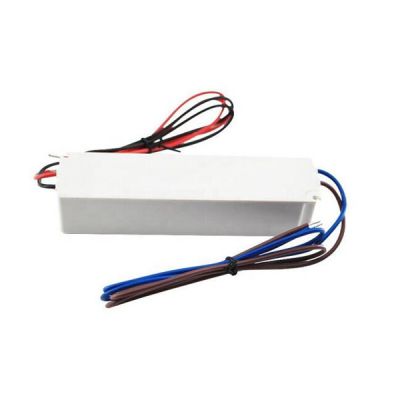

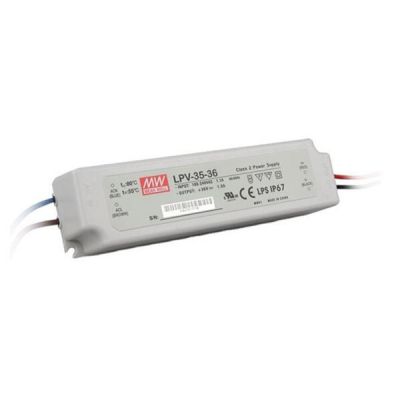

Meanwell LPV-35-36 is 35W Single Output Switching Power Supply with 36V1A0-1A36W150mVp-p±5.0%±1.0%±2.0%47~63Hz85.00%. The item provides constant voltage and universal AC input/Full range. With the efficiency high up to 85%, and fully encapsulated design enhancing heat dissipation, LPV-35-36 is able to work from -30℃ through 65℃ under free air convection. Meanwhile, the unit delivers extremely low no load power consumption, allowing the end system to easily meet the worldwide energy requirement. Additionally, the model is equipped with various protections such as Short circuit, Overload and Over voltage. As a result of its high efficiency, excellent quality, and competitive price, Meanwell LPV-35-36 is ideally suitable for LED related fixture or appliance such as LED Decoration or Advertisement devices, etc.
Meanwell LPV-35-36 Specifications
| Model | LPV-35-36 | |
| OUTPUT | DC VOLTAGE | 36V |
| RATED CURRENT | 1A | |
| CURRENT RANGE | 0-1A | |
| RATED POWER | 36W | |
| RIPPLE & NOISE (max.) | 150mVp-p | |
| VOLTAGE TOL ERANCE | ±5.0% | |
| LINE REGULATION | ±1.0% | |
| LOAD REGULATION | ±2.0% | |
| SETUP, RISE TIME | 500ms, 20ms / 230VAC 500ms, 20ms / 115VAC at full load | |
| HOLD UP TIME (Typ.) | 50ms/230VAC 16ms/115VAC at full load | |
| Input | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 85.00% | |
| AC CURRENT (Typ.) | 1.1A/115VAC 0.7A/230VAC | |
| INRUSH CURRENT(Typ.) | COLD START 55A(twidth=510μs measured at 50% Ipeak) at 230VAC | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 4 units (circuit breaker of type B) / 7 units (circuit breaker of type C) at 230VAC | |
| LEAKAGE CURRENT | 0.25mA / 240VAC | |
| PROTECTION | OVERLOAD | 110 ~ 150% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 41.4-48.6V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +65℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | UL1310 class 2, CAN/CSA No. 223-M91, BIS IS15885(for LPV-35-12,LPV-35-24 only), IEC62368-1, EAC TP TC 004, IP67, BS EN/EN62368-1 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2 Class A, BS EN/EN61000-3-3, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020 | |
| Others | MTBF | 5170.3K hrs min. Telcordia SR-332 (Bellcore) ; 743.5Khrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 148*40*30mm (L*W*H) | |
| PACKING | 0.34Kg; 40pcs/14.6Kg/0.70CUFT | |
Meanwell LPV-35-36 Features
l Pass LPS
l 2 years warranty
l Class 2 power unit
l 100% full load burn-in test
l Low cost, high reliability
l Fully isolated plastic case
l Class II power unit, no FG
l Constant voltage design
l Universal AC input / Full range
l Cooling by free air convection
l Fully encapsulated with IP67 level
l Withstand 300VAC surge input for 5 seconds
l Protections: Short circuit/Overload/Over voltage
l Suitable for LED related fixture or appliance (such as LED Decoration or Advertisement devices
Meanwell LPV-35-36 Mechanical Diagram
