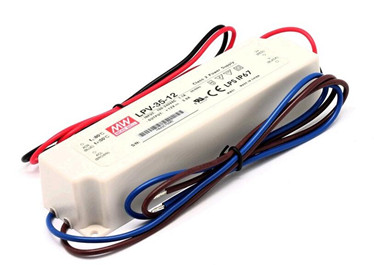

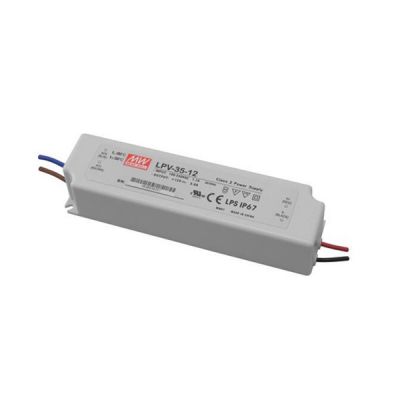

LPV-35-12
7.37
Details
Meanwell LPV-35-12 is 35W Single Output Switching Power Supply with 12V3A0-3A36W120mVp-p±5.0%±1.0%±2.0%47~63Hz84.00%. The item highlights constant voltage and universal AC input/Full range. Since the work efficiency reaches high up to 85%, and fully encapsulated design enhances heat dissipation, LPV-35-12 is able to operate from -30℃ through 65℃ under free air convection delivering extremely low no load power consumption. These permit the end system to easily meet the worldwide energy requirement. In addition, the unit is supplied with various protections such as Short circuit, Overload and Over voltage. Thanks to its high efficiency, excellent quality, and competitive price, Meanwell LPV-35-12 is ideally suitable for LED related fixture or appliance such as LED Decoration or Advertisement devices, etc.
Meanwell LPV-35-12 Specifications
| Model | LPV-35-12 | |
| OUTPUT | DC VOLTAGE | 12V |
| RATED CURRENT | 3A | |
| CURRENT RANGE | 0-3A | |
| RATED POWER | 36W | |
| RIPPLE & NOISE (max.) | 120mVp-p | |
| VOLTAGE TOL ERANCE | ±5.0% | |
| LINE REGULATION | ±1.0% | |
| LOAD REGULATION | ±2.0% | |
| SETUP, RISE TIME | 500ms, 20ms / 230VAC 500ms, 20ms / 115VAC at full load | |
| HOLD UP TIME (Typ.) | 50ms/230VAC 16ms/115VAC at full load | |
| Input | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 84.00% | |
| AC CURRENT (Typ.) | 1.1A/115VAC 0.7A/230VAC | |
| INRUSH CURRENT(Typ.) | COLD START 55A(twidth=510μs measured at 50% Ipeak) at 230VAC | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 4 units (circuit breaker of type B) / 7 units (circuit breaker of type C) at 230VAC | |
| LEAKAGE CURRENT | 0.25mA / 240VAC | |
| PROTECTION | OVERLOAD | 110 ~ 150% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 13.8-16.2V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +65℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | UL1310 class 2, CAN/CSA No. 223-M91, BIS IS15885(for LPV-35-12,LPV-35-24 only), IEC62368-1, EAC TP TC 004, IP67, BS EN/EN62368-1 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2 Class A, BS EN/EN61000-3-3, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020 | |
| Others | MTBF | 5170.3K hrs min. Telcordia SR-332 (Bellcore) ; 743.5Khrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 148*40*30mm (L*W*H) | |
| PACKING | 0.34Kg; 40pcs/14.6Kg/0.70CUFT | |
Meanwell LPV-35-12 Features
l 100% full load burn-in test
l Low cost, high reliability
l 2 years warranty
l Pass LPS
l Fully isolated plastic case
l Class II power unit, no FG
l Class 2 power unit
l Constant voltage design
l Universal AC input / Full range
l Withstand 300VAC surge input for 5 seconds
l Protections: Short circuit/Overload/Over voltage
l Cooling by free air convection
l Fully encapsulated with IP67 level
l Suitable for LED related fixture or appliance (such as LED Decoration or Advertisement devices

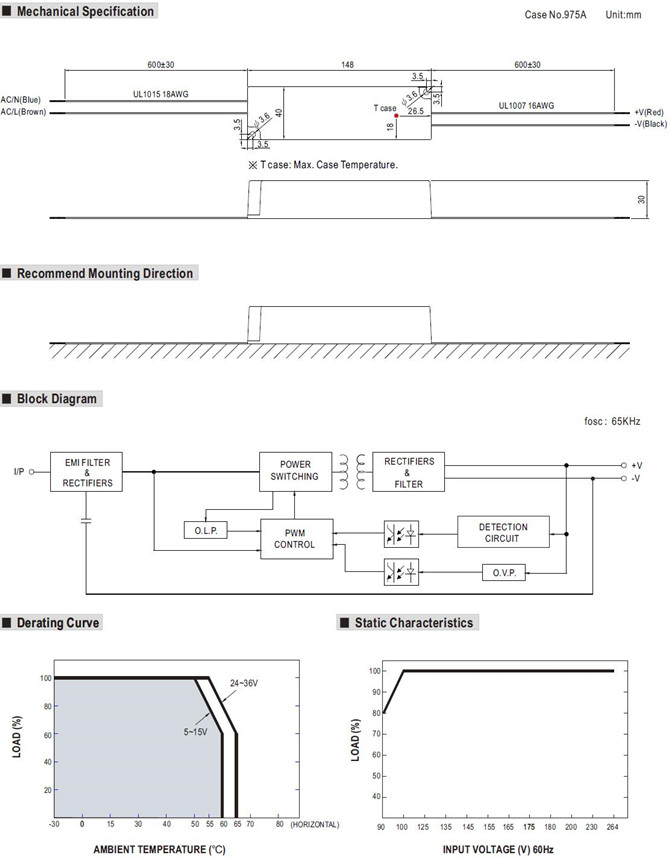

Meanwell LPV-35-12 Mechanical Diagram
