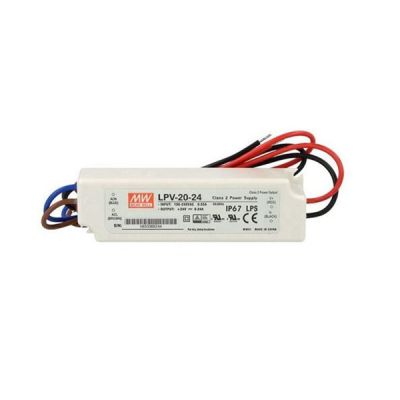

LPV-20
5.97
Details

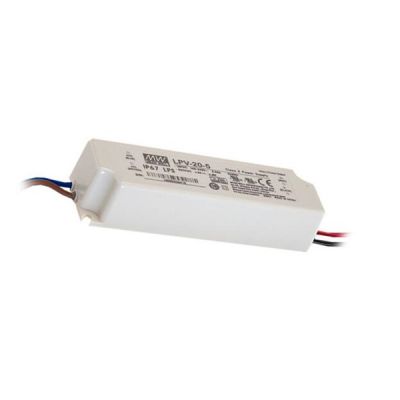

Meanwell LPV-20 Series is 20W Single Output Switching Power Supply highlighting constant voltage and universal AC input/Full range. The work efficiency reaches high up to 83%, and fully encapsulated design enhances heat dissipation, LPV-20 could operate from -30℃ through 70℃ under air convection with no fan. At the same time, LPV-20 delivers extremely low no load power consumption, and allows the end system to easily meet the worldwide energy requirement. In addition, it is equipped with various protections like Short circuit, Overload and Over voltage. Considering its high reliability, excellent quality, and competitive price, Meanwell LPV-20 Series serves as ideally suitable for LED related fixture or appliance such as LED Decoration or Advertisement devices, etc.
Meanwell LPV-20 Series Model Specifications
| Model | LPV-20-5 | LPV-20-12 | LPV-20-15 | LPV-20-24 | |
| OUTPUT | DC VOLTAGE | 5V | 12V | 15V | 24V |
| RATED CURRENT | 3A | 1.67A | 1.33A | 0.84A | |
| CURRENT RANGE | 0-3A | 0-1.67A | 0-1.33A | 0-0.84A | |
| RATED POWER | 15W | 20W | 20W | 20.2W | |
| RIPPLE & NOISE (max.) | 80mVp-p | 120mVp-p | 120mVp-p | 150mVp-p | |
| VOLTAGE TOL ERANCE | ±5.0% | ||||
| LINE REGULATION | ±1.0% | ||||
| LOAD REGULATION | ±2.0% | ||||
| SETUP, RISE TIME | 500ms, 20ms / 230VAC 500ms, 20ms / 115VAC at full load | ||||
| HOLD UP TIME (Typ.) | 50ms/230VAC 16ms/115VAC at full load | ||||
| Input | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC | |||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||
| EFFICIENCY (Typ.) | 77.00% | 81.00% | 83.00% | 83.00% | |
| AC CURRENT (Typ.) | 0.55A/115VAC 0.35A/230VAC | ||||
| INRUSH CURRENT(Typ.) | COLD START 70A(twidth=215μs measured at 50% Ipeak) at 230VAC | ||||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 8 units (circuit breaker of type B) / 14 units (circuit breaker of type C) at 230VAC | ||||
| LEAKAGE CURRENT | 0.25mA / 240VAC | ||||
| PROTECTION | OVERLOAD | 110 ~ 150% rated output power | |||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||
| OVER VOLTAGE | 5.75-6.75V | 13.8-16V | 17.5-21V | 28-32V | |
| Protection type : Shut off o/p voltage, clamping by zener diode | |||||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃ (Refer to "Derating Curve") | |||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | ||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | ||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||
| SAFETY & EMC | SAFETY STANDARDS | UL879, UL1310, CSA C22.2 No. 207-M89,CAN/CSA C22.2 No. 223-M91,IEC/BS EN/EN 62368-1,EAC TP TC 004,IP67 approved | |||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC | ||||
| ISOLATION RESISTANCE | I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH | ||||
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2 Class A, BS EN/EN61000-3-3,EAC TP TC 020 | ||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020 | ||||
| Others | MTBF | 6025.8K hrs min. Telcordia SR-332 (Bellcore) ; 786.5Khrs min. MIL-HDBK-217F (25℃) | |||
| DIMENSION | 118*35*26mm (L*W*H) | ||||
| PACKING | 0.22Kg; 60pcs/14.2Kg/0.72CUFT | ||||
Meanwell LPV-20 Series Features
l Constant voltage design
l Universal AC input/Full range
l Withstand 300V AC surge input for 5 seconds
l Protections: Short circuit/Over load/Over voltage
l Cooling by free air convection
l Small and compact size
l Fully encapsulated with IP67 level
l Fully isolated plastic case
l ClassⅡpower unit, no FG
l Class 2 power unit
l Pass LPS
l Suitable for LED related fixture or appliance (such as LED Decoration or Advertisement devices)
l 100% full load burn-in test
l Low cost, high reliability
l 2 years warranty

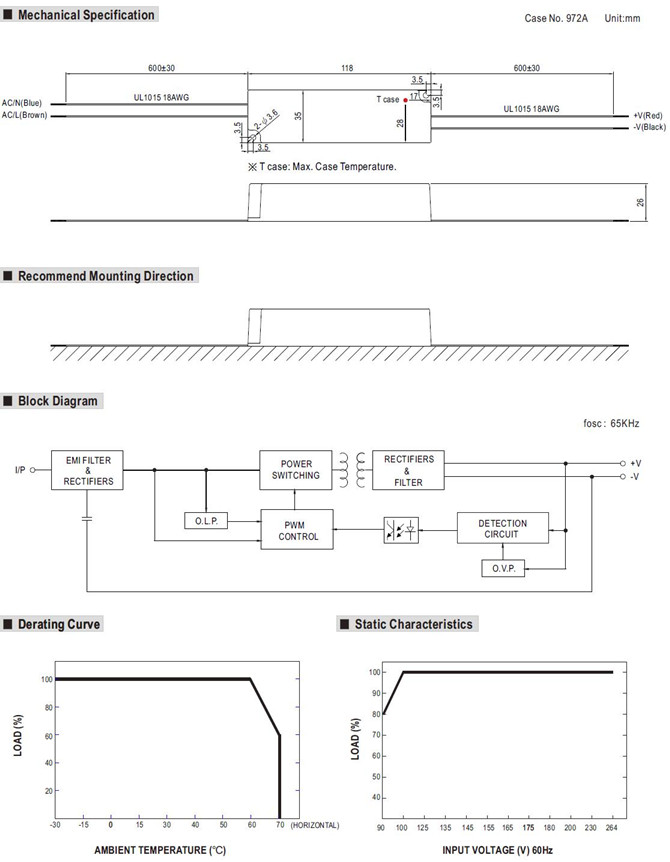

Meanwell LPV-20 Series Mechanical Diagram
