LPV-150
12.26
Details

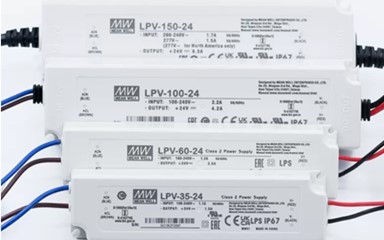

Meanwell LPV-150 Series is 150W single output power supply offering 12V, 15V, 24V, 36V and 48V. The entire series highlights constant voltage design and180~305VAC input. As a classⅡpower unit, LPV-150 is housed with the UL 94V-0 rated flame retardant plastic enclosure. Since the work efficiency reaches high up to 90%, and fully encapsulated design with IP 67 level enhances heat dissipation, this allows every model to fit the use at dry, damp and wet locations. In addition, it is equipped with various protections like Short circuit, Overload, Over voltage and Over temperature. Considering its high efficiency, excellent quality, and competitive price, Meanwell LPV-150 series is ideally suitable for LED lighting and LED moving sign applications.
Meanwell LPV-150 Series Encoding
| LPV | Series Name |
| L | Black: AC Input range 180-305 VAC |
| L: AC Input range 90-132 VAC | |
| 150 | Output wattage |
| 12 | Output voltage |
Meanwell LPV-150 Series Model Specifications
| Model | LPV□-150-12 | LPV-150-15 | LPV□-150-24 | LPV-150-36 | LPV-150-48 | ||
| OUTPUT | DC VOLTAGE | 12V | 15V | 24V | 36V | 48V | |
| RATED CURRENT | 10A | 8A | 6.3A | 4.2A | 3.2A | ||
| CURRENT RANGE | 0-10A | 0-8A | 0-6.3A | 0-4.2A | 0-3.2A | ||
| RATED POWER | 120W | 120W | 151.2W | 151.2W | 153.6W | ||
| RIPPLE & NOISE (max.) | 200mVp-p | 200mVp-p | 200mVp-p | 200mVp-p | 200mVp-p | ||
| VOLTAGE TOL ERANCE | ±5.0% | ||||||
| LINE REGULATION | ±1.0% | ||||||
| LOAD REGULATION | ±2.0% | ||||||
| SETUP, RISE TIME | LPV-150: 500ms, 50ms / 230VAC 500ms, 50ms / 277VAC; LPVL-150: 1500ms, 50ms / 115VAC | ||||||
| HOLD UP TIME (Typ.) | LPV-150: 18ms/230VAC 20ms/277VAC at full load; LPVL-150: 10ms/115VAC at full load | ||||||
| Input | VOLTAGE RANGE | LPV-150: 180 ~ 305VAC 254 ~ 431VDC; LPVL-150: 90~132VAC | |||||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||||
| EFFICIENCY (Typ.) | 87.00% | 88.00% | 89.00% | 89.00% | 90.00% | ||
| AC CURRENT | LPV-150: 1.7A/230VAC 1.5A/277VAC; LPVL-150: 3.0A/115VAC | ||||||
| INRUSH CURRENT(Typ.) | Black Type | COLD START 60A(twidth=900μs measured at 50% Ipeak) at 230VAC | |||||
| L Type | COLD START 75A(twidth=900μs measured at 50% Ipeak) at 115VAC | ||||||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | Black Type | 2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC | |||||
| L Type | 1 units (circuit breaker of type B) / 2 units (circuit breaker of type C) at 115VAC | ||||||
| LEAKAGE CURRENT | LPV-150: 0.25mA / 240VAC LPVL-150:0.25mA / 120VAC | ||||||
| PROTECTION | OVERLOAD | 110 ~ 150% rated output power | |||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||||
| OVER VOLTAGE | 13.5-18V | 17-25V | 27-35V | 40-49V | 52-63V | ||
| Protection type : Shut down o/p voltage, re-power on to recover | |||||||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | ||||||
| ENVIRONMENT | WORKING TEMP. | -25 ~ +65℃ (Refer to "Derating Curve") | |||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | ||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 40℃ for LPV-150-12,15 and LPVL-150-12,24;0~50℃ for LPV-150-24,36,48) | ||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||||
| SAFETY & EMC | SAFETY STANDARDS | Black Type | UL8750,CSA C22.2 No 250.13-12,UL879,CSA C22.2 No.207-M89,BIS IS15885(for LPV-150-12,24 only),EAC TP TC 004, IP67, IEC62368-1, BS EN/EN62368-1 approved | ||||
| L Type | UL8750(type”HL”),CSA C22.2 No 250.13-12,UL879,CSA C22.2 No.207-M89,IP67 approved | ||||||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC | ||||||
| ISOLATION RESISTANCE | I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH | ||||||
| EMC EMISSION | Black Type | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2 Class A(<=80% load), BS EN/EN61000-3-3, EAC TP TC 020 | |||||
| L Type | Compliance to FCC part 15 | ||||||
| EMC IMMUNITY | Black Type | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN55035, light industry level, EAC TP TC 020 | |||||
| L Type | Design refer to IEC61000-4-2,3,4,5,6,8,11; light industry level | ||||||
| Others | MTBF | 3361.2K hrs min. Telcordia SR-332 (Bellcore) ; 391.9Khrs min. MIL-HDBK-217F (25℃) | |||||
| DIMENSION | 191*63*37.5mm (L*W*H) | ||||||
| PACKING | LPV-150: 0.74Kg;20pcs/15.8Kg/0.95CUFT; LPVL-150: 0.85Kg;20pcs/17Kg/0.95CUFT | ||||||
Meanwell LPV-150 Series Features
l Constant voltage design
l 90~132VAC input forLPVL-150
l 180~305VAC input for LPV-150
l Fully encapsulated with IP67 level
l ClassⅡpower unit, no FG
l Protections: Short circuit/Overload/Over voltage/Over temperature
l Fully isolated plastic case
l Fanless design, cooling by free air convection
l 100% full load burn-in test
l Low cost, high reliability
l Listed in UL Sign Component Manual (SAM)
l Type "HL" for use in class l, Division 2 hazardous (Classified) location luminaires for LPVL-150
l 2 years warranty

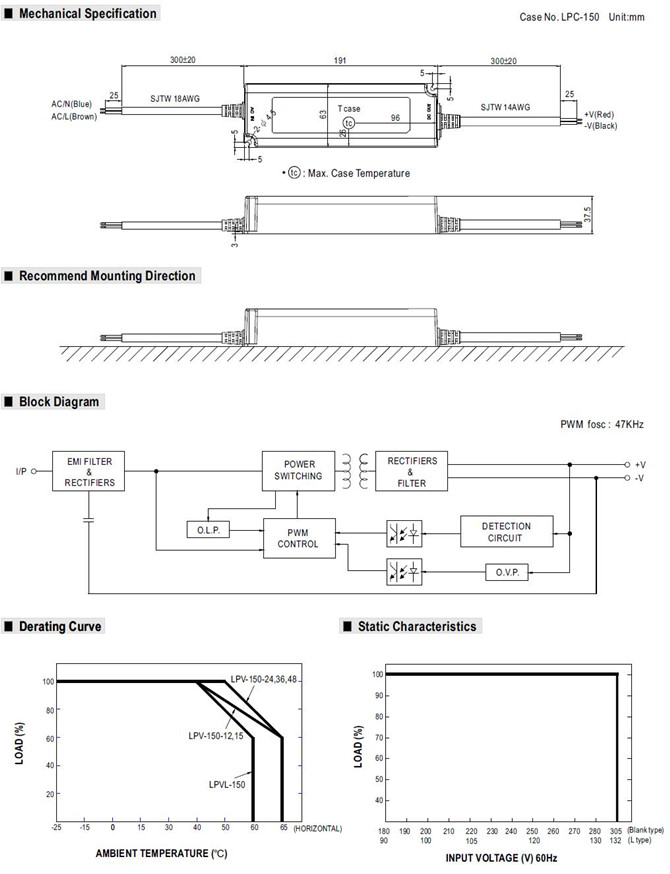

Meanwell LPV-150 Series Mechanical Diagram
