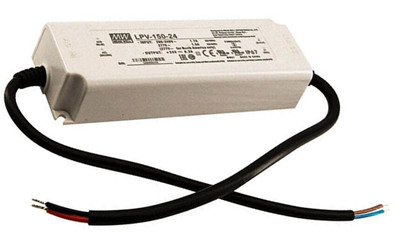

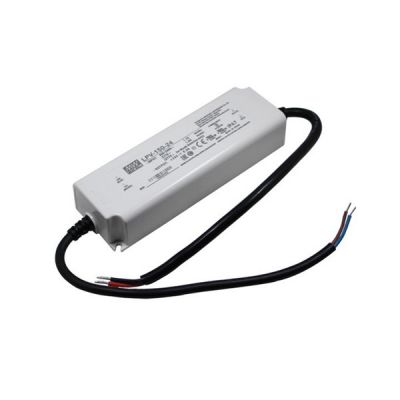

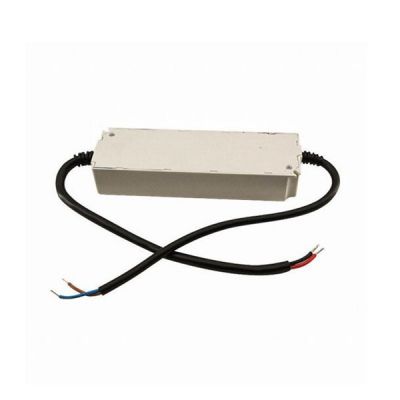

LPV-150-24
12.81
Details
Meanwell LPV-150-24 is 150W single output power supply with 24V6.3A0-6.3A151.2W200mVp-p±5.0%±1.0%±2.0%47~63Hz89.00%. The unit stands out with constant voltage design and180~305VAC input. At the same time, LPV-150-24 is housed with the UL 94V-0 rated flame retardant plastic enclosure. Since the work efficiency reaches high up to 90%, and fully encapsulated design with IP 67 level enhancing heat dissipation, this permits the model to suit the use at dry, damp and wet locations. What’s more, the item is supplied with various protections such as Short circuit, Overload, Over voltage and Over temperature. In light of its high efficiency, excellent quality, and competitive price, Meanwell LPV-150-24 is ideally suitable for LED lighting and LED moving sign applications.
Meanwell LPV-150-24 Encoding
| LPV | Series Name |
| L | Black: AC Input range 180-305 VAC |
| L: AC Input range 90-132 VAC | |
| 150 | Output wattage |
| 24 | Output voltage |
Meanwell LPV-150-24 Specifications
| Model | LPV□-150-24 | ||
| OUTPUT | DC VOLTAGE | 24V | |
| RATED CURRENT | 6.3A | ||
| CURRENT RANGE | 0-6.3A | ||
| RATED POWER | 151.2W | ||
| RIPPLE & NOISE (max.) | 200mVp-p | ||
| VOLTAGE TOL ERANCE | ±5.0% | ||
| LINE REGULATION | ±1.0% | ||
| LOAD REGULATION | ±2.0% | ||
| SETUP, RISE TIME | LPV-150: 500ms, 50ms / 230VAC 500ms, 50ms / 277VAC; LPVL-150: 1500ms, 50ms / 115VAC | ||
| HOLD UP TIME (Typ.) | LPV-150: 18ms/230VAC 20ms/277VAC at full load; LPVL-150: 10ms/115VAC at full load | ||
| Input | VOLTAGE RANGE | LPV-150: 180 ~ 305VAC 254 ~ 431VDC; LPVL-150: 90~132VAC | |
| FREQUENCY RANGE | 47 ~ 63Hz | ||
| EFFICIENCY (Typ.) | 89.00% | ||
| AC CURRENT | LPV-150: 1.7A/230VAC 1.5A/277VAC; LPVL-150: 3.0A/115VAC | ||
| INRUSH CURRENT(Typ.) | Black Type | COLD START 60A(twidth=900μs measured at 50% Ipeak) at 230VAC | |
| L Type | COLD START 75A(twidth=900μs measured at 50% Ipeak) at 115VAC | ||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | Black Type | 2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC | |
| L Type | 1 units (circuit breaker of type B) / 2 units (circuit breaker of type C) at 115VAC | ||
| LEAKAGE CURRENT | LPV-150: 0.25mA / 240VAC LPVL-150:0.25mA / 120VAC | ||
| PROTECTION | OVERLOAD | 110 ~ 150% rated output power | |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||
| OVER VOLTAGE | 27-35V | ||
| Protection type : Shut down o/p voltage, re-power on to recover | |||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | ||
| ENVIRONMENT | WORKING TEMP. | -25 ~ +65℃ (Refer to "Derating Curve") | |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | ||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 40℃ for LPV-150-12,15 and LPVL-150-12,24;0~50℃ for LPV-150-24,36,48) | ||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||
| SAFETY & EMC | SAFETY STANDARDS | Black Type | UL8750,CSA C22.2 No 250.13-12,UL879,CSA C22.2 No.207-M89,BIS IS15885(for LPV-150-12,24 only),EAC TP TC 004, IP67, IEC62368-1, BS EN/EN62368-1 approved |
| L Type | UL8750(type”HL”),CSA C22.2 No 250.13-12,UL879,CSA C22.2 No.207-M89,IP67 approved | ||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC | ||
| ISOLATION RESISTANCE | I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH | ||
| EMC EMISSION | Black Type | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2 Class A(<=80% load), BS EN/EN61000-3-3, EAC TP TC 020 | |
| L Type | Compliance to FCC part 15 | ||
| EMC IMMUNITY | Black Type | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN55035, light industry level, EAC TP TC 020 | |
| L Type | Design refer to IEC61000-4-2,3,4,5,6,8,11; light industry level | ||
| Others | MTBF | 3361.2K hrs min. Telcordia SR-332 (Bellcore) ; 391.9Khrs min. MIL-HDBK-217F (25℃) | |
| DIMENSION | 191*63*37.5mm (L*W*H) | ||
| PACKING | LPV-150: 0.74Kg;20pcs/15.8Kg/0.95CUFT; LPVL-150: 0.85Kg;20pcs/17Kg/0.95CUFT | ||
Meanwell LPV-150-24 Features
l 2 years warranty
l Constant voltage design
l ClassⅡpower unit, no FG
l Fully isolated plastic case
l 100% full load burn-in test
l Low cost, high reliability
l 90~132VAC input forLPVL-150
l 180~305VAC input for LPV-150
l Fully encapsulated with IP67 level
l Listed in UL Sign Component Manual (SAM)
l Fanless design, cooling by free air convection
l Protections: Short circuit/Overload/Over voltage/Over temperature
l Type "HL" for use in class l, Division 2 hazardous (Classified) location luminaires for LPVL-150
Meanwell LPV-150-24 Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
Custom Tab
Abundant supply to meet market demand. The warehouse is rich in goods with all kinds of commodities, which Can meet the needs of different customers.
Fast delivery and high efficiency. The warehouse has sufficient supply, when customers need to order, we can quickly find the goods, and deliver out, which effectively improves the efficiency and saves valuable time for customers
Our products have more advantages in price. We always believe that you should enjoy higher quality with lower price. Therefore, we are committed to providing consumers with the most cost-effective products.
No matter how great our goals are, or how many great things waiting for us to do, we must keep our promises and do it well. Because these is one word that cannot be missing in the secret of success. That is "integrity".
