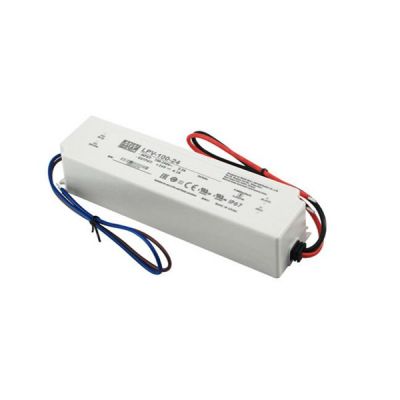

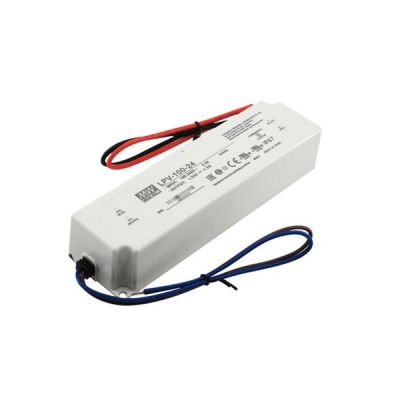

Meanwell LPV-100 Series is 100W Single Output Switching Power Supply highlighting constant voltage and universal AC input/Full range. Since the work efficiency reaches high up to 89%, and fully encapsulated design enhances heat dissipation. LPV-100 is able to operate from -25℃ through 70℃ under free air convection. In addition, the entire series delivers extremely low no load power consumption, permitting end system to easily meet the worldwide energy requirement and safety standards. Apart from them, it is equipped with various protections like Short circuit, Overload and Over voltage. Considering its high efficiency, excellent quality, and competitive price, Meanwell LPV-100 series serves as ideally suitable for LED related fixture or appliance such as LED decoration or advertisement devices, etc.
Meanwell LPV-100 Series Model Specifications
| Model | LPV-100-5 | LPV-100-12 | LPV-100-15 | LPV-100-24 | LPV-100-36 | LPV-100-48 | |
| OUTPUT | DC VOLTAGE | 5V | 12V | 15V | 24V | 36V | 48V |
| RATED CURRENT | 12A | 8.5A | 6.7A | 4.2A | 2.8A | 2.1A | |
| CURRENT RANGE | 0-12A | 0-8.5A | 0-6.7A | 0-4.2A | 0-2.8A | 0-2.1A | |
| RATED POWER | 60W | 102W | 100.5W | 100.8W | 100.8W | 100.8W | |
| RIPPLE & NOISE (max.) | 80mVp-p | 120mVp-p | 120mVp-p | 150mVp-p | 150mVp-p | 150mVp-p | |
| VOLTAGE TOL ERANCE | ±8.0% | ±5.0% | |||||
| LINE REGULATION | ±1.0% | ||||||
| LOAD REGULATION | ±6.0% | ±2.0% | |||||
| SETUP, RISE TIME | 2000ms, 25ms / 230VAC 2000ms, 25ms / 115VAC | ||||||
| HOLD UP TIME (Typ.) | 50ms/230VAC 14ms/115VAC at full load | ||||||
| Input | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC | |||||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||||
| EFFICIENCY (Typ.) | 80.00% | 85.00% | 87.00% | 88.00% | 88.00% | 89.00% | |
| AC CURRENT (Typ.) | 2.2A/115VAC 1.2A/230VAC | ||||||
| INRUSH CURRENT(Typ.) | COLD START 75A(twidth=700μs measured at 50% Ipeak) at 230VAC | ||||||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC | ||||||
| LEAKAGE CURRENT | 0.25mA / 240VAC | ||||||
| PROTECTION | OVERLOAD | 110 ~ 150% rated output power | |||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||||
| OVER VOLTAGE | 5.75-6.75V | 13.8-16.2V | 17.25-20.25V | 27.6-32.4V | 41.4-48.6V | 55.2-64.8V | |
| Protection type : Shut down o/p voltage, re-power on to recover | |||||||
| ENVIRONMENT | WORKING TEMP. | -25 ~ +70℃ (Refer to "Derating Curve") | |||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | ||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | ||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||||
| SAFETY & EMC | SAFETY STANDARDS | UL8750,CSA C22.2 No 250.13-12,UL879,CSA C22.2 No.207-M89,BIS IS15885(for LPV-100-12,LPV-100-24 only), EAC TP TC 004,IP67, IEC62368-1 , BS EN/EN62368-1 approved | |||||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC | ||||||
| ISOLATION RESISTANCE | I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH | ||||||
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2 Class A(<=80% load), BS EN/EN61000-3-3, EAC TP TC 020 | ||||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN55035, light industry level, EAC TP TC 020 | ||||||
| Others | MTBF | 4497.1K hrs min. Telcordia SR-332 (Bellcore) ; 681.6Khrs min. MIL-HDBK-217F (25℃) | |||||
| DIMENSION | 190*52*37mm (L*W*H) | ||||||
| PACKING | 0.63Kg;20pcs/13.6Kg/0.55CUFT | ||||||
Meanwell LPV-100 Series Features
l Constant voltage design
l Universal AC input/Full range
l Fully encapsulated with IP67 level
l Withstand 300V AC surge input for 5 seconds
l Protections: Short circuit/ Overload / Over voltage
l Fully isolated plastic case
l Cooling by free air convection
l 100% full load burn-in test
l Low cost, high reliability
l Suitable for L ED related fixture or appliance such as LED Decoration or Advertisement devices
l 2 years warranty

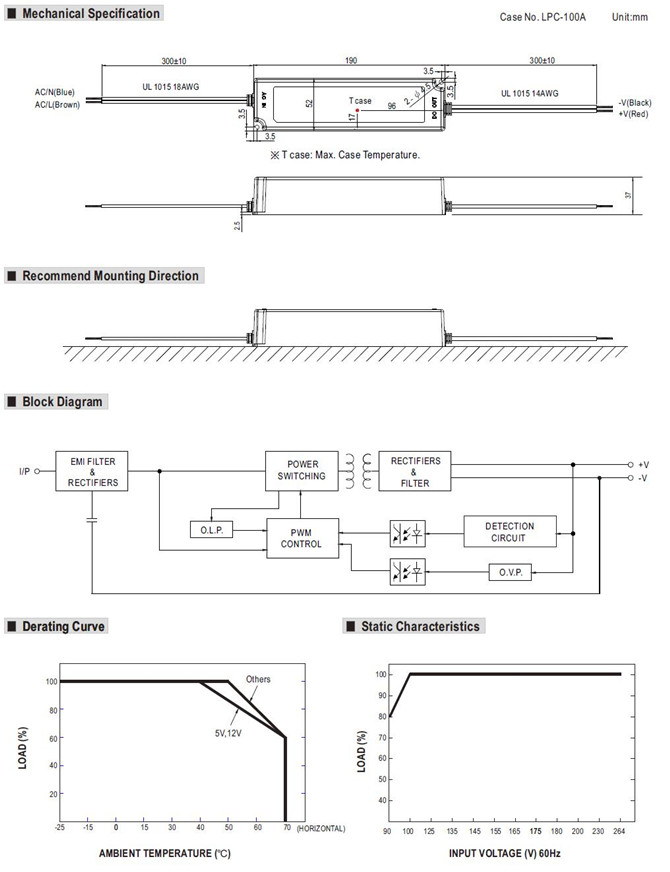

Meanwell LPV-100 Series Mechanical Diagram
