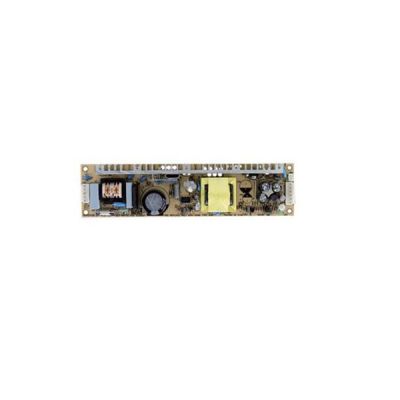

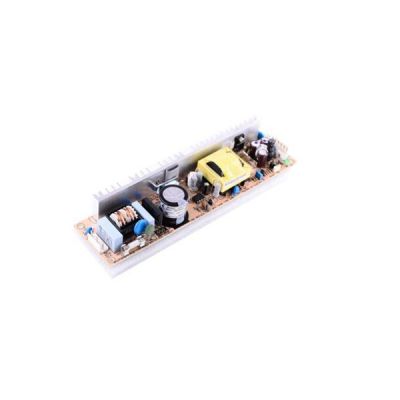

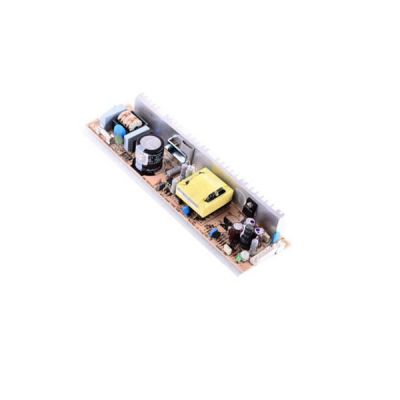

Meanwell LPS-75 Series is 75W Single Output Switching Power Supply which is designed with compact size and low profile. The entire series features with Built-in remote ON-OFF control and Universal AC input/Full range. Apart from them, It accepts 90~264VAC input and gives various output voltages between 3.3V and 48V. The working efficiency can reach up to 83% and operates from -20 ℃through 70 ℃ under air convection without fan. Since it delivers an extremely low no load power consumption, this allows the end system to easily meet the worldwide energy requirements. Additionally, LPS-75 provides the various protection functions such as Short circuit, Overload and Over voltage, and pass 100% full load burn-in test. Moreover, LPS-75 complies with the international safety regulations such as UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004. Considering its High efficiency, low cost and longevity, Meanwell LPS-75 series serves as a high price-to-performance power supply solution for various industrial applications.
Meanwell LPS-75 Series Model Specifications
| Model | LPS-75-3.3 | LPS-75-5 | LPS-75-12 | LPS-75-15 | LPS-75-24 | LPS-75-48 | |
| OUTPUT | DC VOLTAGE | 3.3V | 5V | 12V | 15V | 24V | 48V |
| RATED CURRENT | 15A | 15A | 6.2A | 5A | 3.2A | 1.56A | |
| CURRENT RANGE | 0-16.5A | 0-16.5A | 0-6.8A | 0-5.5A | 0-3.5A | 0-1.7A | |
| RATED POWER | 49.5W | 75W | 74.4W | 75W | 76.8W | 75W | |
| PEAK LOAD(10sec.) | 54.45W | 82.5W | 81.6W | 82.5W | 84W | 74.88W | |
| RIPPLE & NOISE (max.) | 80mVp-p | 80mVp-p | 100mVp-p | 100mVp-p | 120mVp-p | 120mVp-p | |
| VOLTAGE ADJ. RANGE | 3.0-3.5V | 4.75-5.5V | 11-13.5V | 13.5-16.5V | 22-27V | 45-54V | |
| VOLTAGE TOL ERANCE | ±3.0% | ±3.0% | ±2.0% | ±2.0% | ±2.0% | ±2.0% | |
| LINE REGULATION | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | |
| LOAD REGUL .ATION | ±3% | ±3% | ±2% | ±2% | ±1% | ±1% | |
| SETUP, RISE TIME | 100ms, 35ms/230VAC 100ms, 35ms/115VAC at full load | ||||||
| HOLD UP TIME (Typ.) | 60ms/230VAC 12ms/115VAC at full load | ||||||
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC | |||||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||||
| EFFICIENCY (Typ.) | 69.00% | 77.00% | 80.00% | 81.00% | 83.00% | 83.00% | |
| AC CURRENT (Typ.) | 1.9A/115VAC 1.1A/230VAC | ||||||
| INRUSH CURRENT(Typ.) | COLD START 18A/115VAC 36A/230VAC | ||||||
| LEAKAGE CURRENT | <1mA / 240VAC | ||||||
| PROTECTION | OVERL OAD | 115 ~ 150% rated output power | |||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||||
| OVER VOLTAGE | 3.8 ~ 4.45V | 5.75 ~ 6.75V | 13.8-16.2V | 17.25-20.25V | 27.6-32.4V | 57.6-67.2V | |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||||
| FUNCTION | REMOTE ON/OFF | RC+/RC- : 0 ~ 0.8V power on ; 4 ~ 10V power off | |||||
| ENVIRONMENT | WORKING TEMP. | -20 ~ +70℃(Refer to "Derating Curve") | |||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||||
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH | ||||||
| TEMP. COEFFICIENT | ±0.04%/℃(0 ~ 50℃) | ||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||||
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved | |||||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC/ 25℃/ 70% RH | ||||||
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 | ||||||
| EMS IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, criteria A, EAC TP TC 020 |
||||||
| OTHERS | MTBF | 355Khrs min. MIL-HDBK-217F (25℃) | |||||
| DIMENSION | 222*55*30mm (L*W*H) | ||||||
| PACKING | 0.3Kg; 48pcs/15.6Kg/1.23CUFT | ||||||
Meanwell LPS-75 Series Features
l Universal AC input/ Full range
l Protections: Short circuit/ Overload/Over voltage
l Cooling by free air convection
l PWM control and regulated
l Small and compact size
l Built-in remote ON-OFF control
l LED indicator for power on
l 100% full load burn-in test
l 2 years warranty

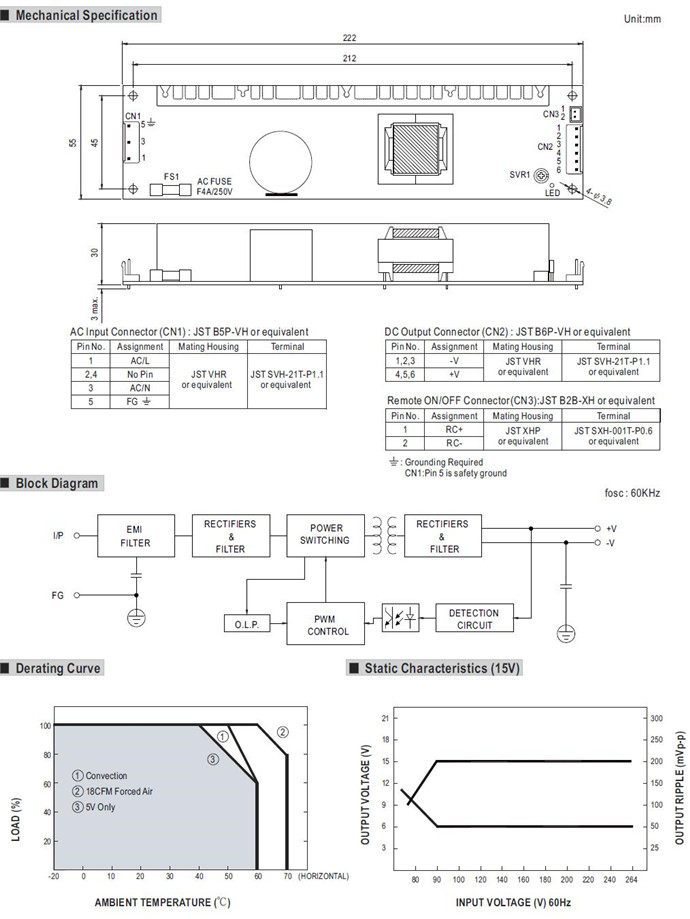

Meanwell LPS-75 Series Mechanical Diagram
