LPS-50
13.03
Details

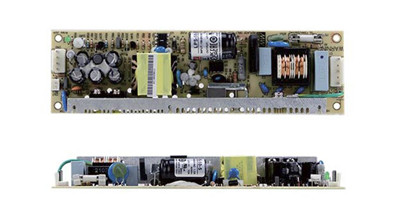

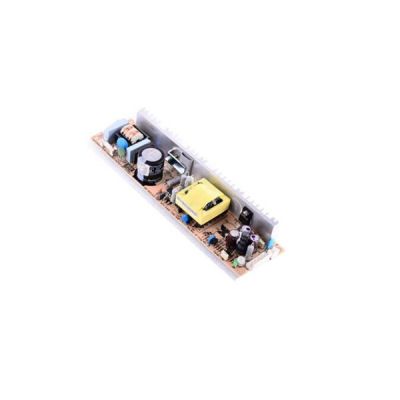

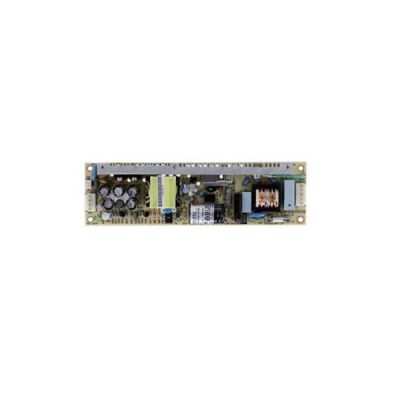

Meanwell LPS-50 Series is 50W Single Output Switching Power Supply which is designed with compact size and low profile. The entire series features with Built-in remote ON-OFF control and Universal AC input/Full range. At the same time, It accepts 90~264VAC input and gives various output voltages between 3.3V and 48V. The working efficiency can reach up to 86% and operates from -20 ℃through 70 ℃ under air convection without fan. Since it delivers an extremely low no load power consumption, this allows the end system to easily meet the worldwide energy requirement. Apart from them, LPS-50 provides the various protection functions such as Short circuit, Overload and Over voltage. Moreover, LPS-50 complies with the international safety regulations such as UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004. Considering its High efficiency, low cost and longevity, Meanwell LPS-50 serves as a high price-to-performance power supply solution for various industrial applications.
Meanwell LPS-50 Series Model Specifications
| Model | LPS-50-3.3 | LPS-50-5 | LPS-50-12 | LPS-50-15 | LPS-50-24 | LPS-50-48 | |
| OUTPUT | DC VOLTAGE | 3.3V | 5V | 12V | 15V | 24V | 48V |
| RATED CURRENT | 10A | 10A | 4.2A | 3.4A | 2.1A | 1.1A | |
| CURRENT RANGE | 0-12A | 0-12A | 0-5A | 0-4.1A | 0-2.5A | 0-1.3A | |
| RATED POWER | 33W | 50W | 50.4W | 51A | 50.4W | 52.8W | |
| PEAK LOAD(10sec.) | 39.6W | 60W | 60W | 61.5W | 60W | 62.4W | |
| RIPPLE & NOISE (max.) | 50mVp-p | 50mVp-p | 80mVp-p | 80mVp-p | 80mVp-p | 100mVp-p | |
| VOLTAGE ADJ. RANGE | 3.0-3.6V | 4.5-5.5V | 10.8-13.2V | 13.5-16.5V | 21.6-27.2V | 43.2-52.8V | |
| VOLTAGE TOL ERANCE | ±3.0% | ±3.0% | ±2.0% | ±2.0% | ±1.0% | ±1.0% | |
| LINE REGULATION | ±1% | ±1% | ±1% | ±1% | ±1% | ±1% | |
| LOAD REGUL .ATION | ±3% | ±3% | ±2% | ±2% | ±1% | ±1% | |
| SETUP, RISE TIME | 100ms, 40ms/230VAC 100ms, 40ms/115VAC at full load | ||||||
| HOLD UP TIME (Typ.) | 70ms/230VAC 12ms/115VAC at full load | ||||||
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC | |||||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||||
| EFFICIENCY (Typ.) | 75.00% | 81.00% | 82.00% | 84.00% | 85.00% | 86.00% | |
| AC CURRENT (Typ.) 115VAC | 0.9A% | 1.2A% | |||||
| AC CURRENT (Typ.) 230VAC | 0.6A | 0.8A | |||||
| INRUSH CURRENT(Typ.) | COLD START 18A/115VAC 35A/230VAC | ||||||
| LEAKAGE CURRENT | <1mA / 240VAC | ||||||
| PROTECTION | OVERL OAD | 122 ~ 160% rated output power | |||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | |||||||
| OVER VOLTAGE | 3.8 ~ 4.45V | 5.75 ~ 6.75V | 13.8-16.2V | 17.25-20.25V | 27.6-32.4V | 57.6-67.2V | |
| Protection type : Shut down o/p voltage, Clamping by zener diode | |||||||
| FUNCTION | REMOTE ON/OFF | RC+/RC- : 0 ~ 0.8V power on ; 4 ~ 10V power off | |||||
| ENVIRONMENT | WORKING TEMP. | -20 ~ +70℃(Refer to "Derating Curve") | |||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||||
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH | ||||||
| TEMP. COEFFICIENT | ±0.04%/℃(0 ~ 50℃) | ||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||||
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved | |||||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | ||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 | ||||||
| EMS IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, criteria A, EAC TP TC 020 |
||||||
| OTHERS | MTBF | 341.7Khrs min. MIL-HDBK-217F (25℃) | |||||
| DIMENSION | 195*55*23mm (L*W*H) | ||||||
| PACKING | 0.24Kg; 48pcs/12.5Kg/0.87CUFT | ||||||
Meanwell LPS-50 Series Features
l Universal AC input/Full range
l Protections: Short circuit/Overload/Over voltage
l Cooling by free air convection
l Small and compact size
l Built-in remote ON-OFF control
l LED indicator for power on
l 100% full load burn-in test
l Low profile:23mm thickness
l 2 years warranty

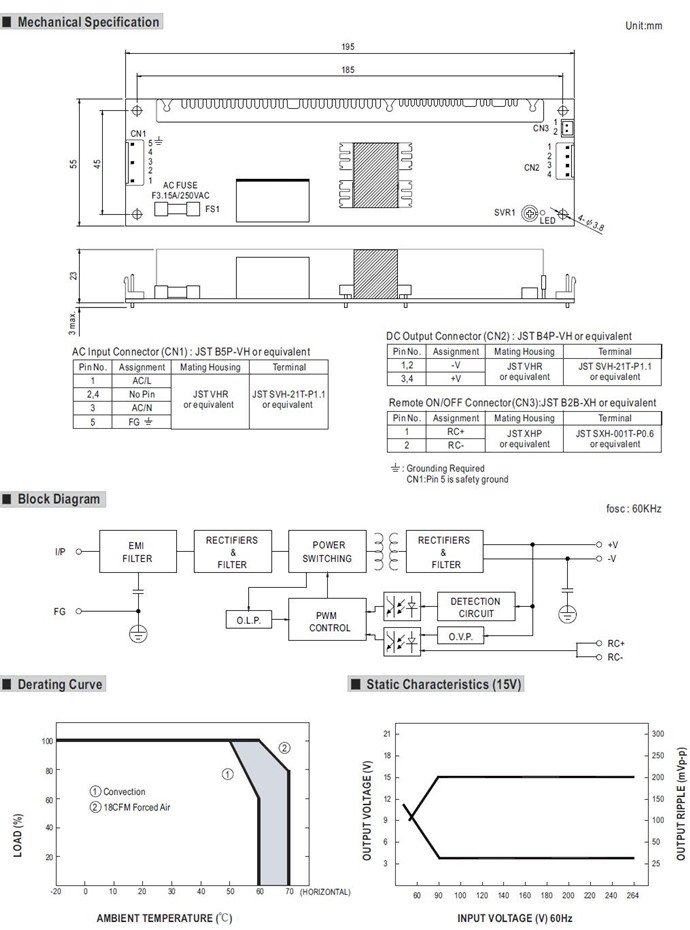

Meanwell LPS-50 Series Mechanical Diagram
