LPS-50-48
14.56
Details

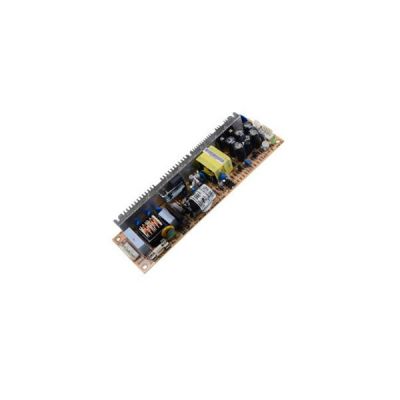

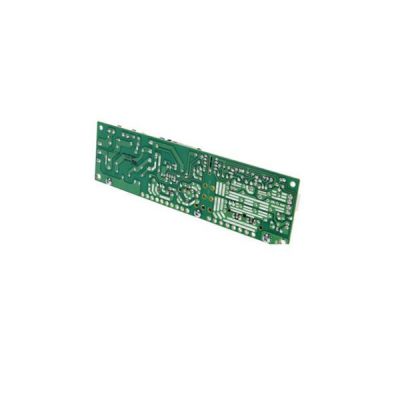

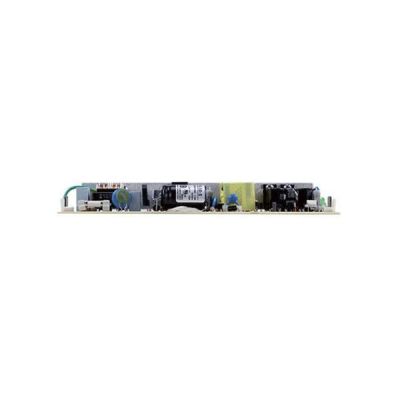

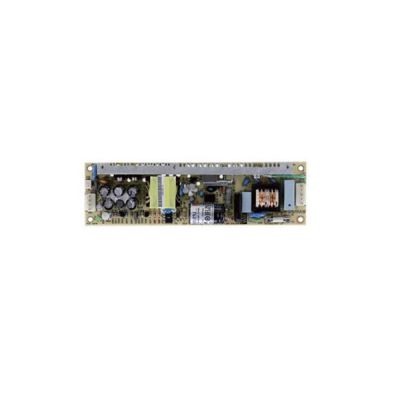

Meanwell LPS-50-48 is 50W Single Output Switching Power Supply with 48V1.1A0-1.3A52.8W62.4W100mVp-p43.2-52.8V. It is designed in compact size and low profile, and outstanding with Universal AC input/Full range and Built-in remote ON-OFF control. With the high working efficiency up to 86%, it can operate from -20 ℃through 70 ℃ under free air convection without fan. Since the product delivers an extremely low no load power consumption, this allows the end system to easily fit the worldwide energy requirements. Besides them, LPS-50-48 supplies the various protection functions such as Short circuit, Overload and Over voltage. Moreover, it complies with the international safety regulations such as UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004. Because of its High efficiency, low cost and longevity, Meanwell LPS-50-48 is a high price-to-performance power supply solution for various industrial applications.
Meanwell LPS-50-48 Specifications
| Model | LPS-50-48 | |
| OUTPUT | DC VOLTAGE | 48V |
| RATED CURRENT | 1.1A | |
| CURRENT RANGE | 0-1.3A | |
| RATED POWER | 52.8W | |
| PEAK LOAD(10sec.) | 62.4W | |
| RIPPLE & NOISE (max.) | 100mVp-p | |
| VOLTAGE ADJ. RANGE | 43.2-52.8V | |
| VOLTAGE TOL ERANCE | ±1.0% | |
| LINE REGULATION | ±1% | |
| LOAD REGUL .ATION | ±1% | |
| SETUP, RISE TIME | 100ms, 40ms/230VAC 100ms, 40ms/115VAC at full load | |
| HOLD UP TIME (Typ.) | 70ms/230VAC 12ms/115VAC at full load | |
| INPUT | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 86.00% | |
| AC CURRENT (Typ.) 115VAC | 0.9A/1.2A | |
| AC CURRENT (Typ.) 230VAC | 0.6A/0.8A | |
| INRUSH CURRENT(Typ.) | COLD START 18A/115VAC 35A/230VAC | |
| LEAKAGE CURRENT | <1mA / 240VAC | |
| PROTECTION | OVERL OAD | 122 ~ 160% rated output power |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 57.6-67.2V | |
| Protection type : Shut down o/p voltage, Clamping by zener diode | ||
| FUNCTION | REMOTE ON/OFF | RC+/RC- : 0 ~ 0.8V power on ; 4 ~ 10V power off |
| ENVIRONMENT | WORKING TEMP. | -20 ~ +70℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.04%/℃(0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 | |
| EMS IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, BS EN/EN61000-6-2 (BS EN/EN50082-2), heavy industry level, criteria A, EAC TP TC 020 |
|
| OTHERS | MTBF | 341.7Khrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 195*55*23mm (L*W*H) | |
| PACKING | 0.24Kg; 48pcs/12.5Kg/0.87CUFT | |
Meanwell LPS-50-48 Features
l Cooling by free air convection
l Small and compact size
l Built-in remote ON-OFF control
l LED indicator for power on
l 100% full load burn-in test
l Low profile:23mm thickness
l 2 years warranty
l Universal AC input/Full range
l Protections: Short circuit/Overload/Over voltage
Meanwell LPS-50-48 Mechanical Diagram
