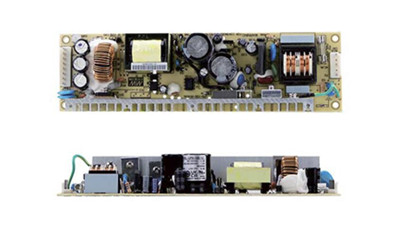

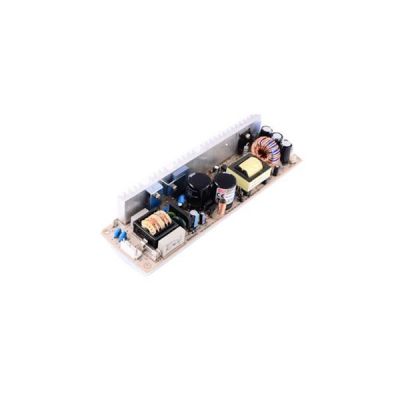

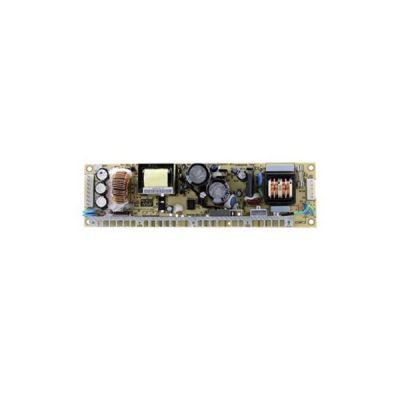

Meanwell LPS-100 Series is 100W Single Output Switching Power Supply without PFC Function. The entire series is designed with compact size and low profile highlighting with Universal AC input/Full range. At the same time, It accepts 90~264VAC input and gives various output voltages between 3.3V and 48V. The working efficiency can reach up to 81% and operate from -10 ℃through 60 ℃ under air convection without fan. Since it delivers an extremely low no load power consumption, this allows the end system to easily meet the worldwide energy requirements. Moreover, LPS-100 provides the various protection functions such as Short circuit, Overload and Over voltage, and pass 100% full load burn-in test. Moreover, LPS-100 complies with the international safety regulations such as UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004. Considering its High efficiency, low cost and longevity, Meanwell LPS-100 series serves as a high price-to-performance power supply solution for various industrial applications.
Meanwell LPS-100 Series Model Specifications
| Model | LPS-100-3.3 | LPS-100-5 | LPS-100-7.5 | LPS-100-12 | LPS-100-13.5 | LPS-100-15 | LPS-100-24 | LPS-100-27 | LPS-100-48 | |
| OUTPUT | DC VOLTAGE | 3.3V | 5V | 7.5V | 12V | 13.5V | 15V | 24V | 27V | 48V |
| RATED CURRENT | 20A | 20A | 13.3A | 8.4A | 7.5A | 6.7A | 4.2A | 3.8A | 2.1A | |
| CURRENT RANGE | 0-20A | 0-20A | 0-13.3A | 0-8.4A | 0-7.5A | 0-6.7A | 0-4.2A | 0-3.8A | 0-2.1A | |
| RATED POWER | 66W | 100W | 99.75W | 100.8W | 101.25W | 100.5W | 100.8W | 102.6W | 100.8W | |
| RIPPLE & NOISE (max.) | 150mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 150mVp-p | 150mVp-p | 200mVp-p | |
| VOLTAGE ADJ. RANGE | 3.0-3.6V | 4.5-5.7V | 6-9V | 10-13.2V | 12-15V | 13.5-18V | 20-26.4V | 26-32V | 41-56V | |
| VOLTAGE TOL ERANCE | ±3.0% | ±3.0% | ±2.0% | ±2.0% | ±2.0% | ±2.0% | ±1.0% | ±1.0% | ±1.0% | |
| LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
| LOAD REGUL .ATION | ±2.0% | ±2.0% | ±1.5% | ±1.5% | ±1.5% | ±1.5% | ±0.5% | ±0.5% | ±0.5% | |
| SETUP, RISE TIME | 800ms, 50ms/230VAC 1200ms, 50ms/115VAC at full load | |||||||||
| HOLD UP TIME (Typ.) | 20ms/230VAC 20ms/115VAC at full load | |||||||||
| INPUT | VOLTAGE RANGE | 88 ~ 132VAC / 176 ~ 264VAC auto switch 248 ~ 370VDC [DC input operation possible by connecting AC/N(-), AC/L(+)] | ||||||||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||||||
| EFFICIENCY (Typ.) | 69.00% | 77.00% | 77.00% | 79.00% | 79.00% | 80.00% | 80.00% | 81.00% | 81.00% | |
| AC CURRENT (Typ.) | 2.3A/115VAC 1.5A/230VAC | |||||||||
| INRUSH CURRENT(Typ.) | COLD START 30A/115VAC 60A/230VAC | |||||||||
| LEAKAGE CURRENT | <1mA / 240VAC | |||||||||
| PROTECTION | OVERL OAD | 105 ~ 140% (+24V: above 6.5A) rated output power | ||||||||
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||||||||
| OVER VOLTAGE | 3.8 ~ 4.45V | 5.75 ~ 6.75V | 9.4-10.9V | 13.8-16.2V | 15.5-18.2V | 18-21V | 27.6-32.4V | 33.7-39.2V | 57.6-67.2V | |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||||||||||
| ENVIRONMENT | WORKING TEMP. | -10 ~ +60℃(Refer to "Derating Curve") | ||||||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||||||||
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH | |||||||||
| TEMP. COEFFICIENT | ±0.05%/℃(0 ~ 50℃) | |||||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |||||||||
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved | ||||||||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |||||||||
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||||||||
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 | |||||||||
| EMS IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,11, light industry level, criteria A, EAC TP TC 020 | |||||||||
| OTHERS | MTBF | 203.6Khrs min. MIL-HDBK-217F (25℃) | ||||||||
| DIMENSION | 222*62*32mm (L*W*H) | |||||||||
| PACKING | 0.45Kg; 24pcs/12.5Kg/1.63CUFT | |||||||||
Meanwell LPS-100 Series Features
l Universal AC input/ Full range
l Protections: Short circuit/Overload/Over voltage
l Cooling by free air convection
l 100% full load burn-in test
l Fix switching frequency at 134KHz
l 2 years warranty

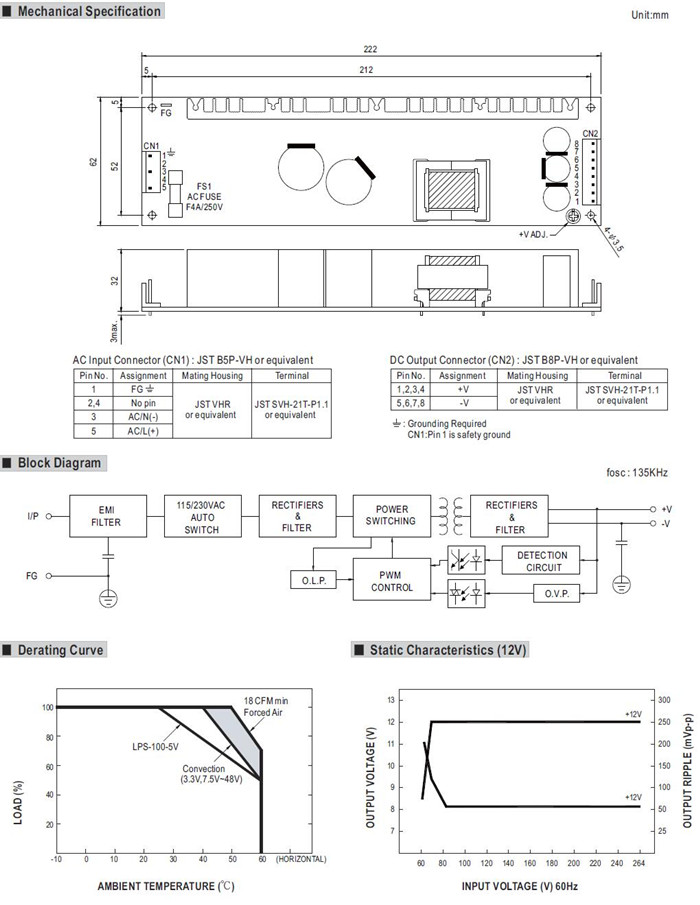

Meanwell LPS-100 Series Mechanical Diagram
