LPP-150-7.5
30.62
Details

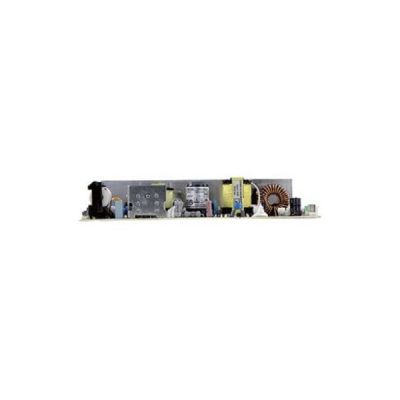

Meanwell LPP-150-7.5 is 150W Single Output Switching Power Supply with 7.5V20A0-20A150W100mVp-p7.13-8.25V. The product is equipped with PFC Function in compact size and low profile and highlighted with Universal AC input/Full range and Fixed switching frequency. At the same time, it accepts 85~264VAC input. Since the working efficiency could go up to 85% and work from -10 ℃through 60 ℃ under air convection without fan, and delivers an extremely low no load power consumption, this permits the end system to easily meet the worldwide energy requirements. In addition, LPP-150-7.5 offers the various protections such as Short circuit, Overload, Over voltage, Over temperature (optional) and 100% full load burn-in test as well. Moreover, it complies with the international safety regulations such as UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004. In view of its High efficiency, low cost and longevity, Meanwell LPP-150-7.5 is a high price-to-performance power supply solution for various industrial applications.
Meanwell LPP-150-7.5 Specifications
| Model | LPP-150-7.5 | |
| OUTPUT | DC VOLTAGE | 7.5V |
| RATED CURRENT | 20A | |
| CURRENT RANGE | 0-20A | |
| RATED POWER | 150W | |
| RIPPLE & NOISE (max.) | 100mVp-p | |
| VOLTAGE ADJ. RANGE | 7.13-8.25V | |
| VOLTAGE TOL ERANCE | ±2.0% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGUL .ATION | ±1.0% | |
| SETUP, RISE TIME | 600ms, 30ms at full load | |
| HOLD UP TIME (Typ.) | 30ms at full load | |
| INPUT | VOLTAGE RANGE | 85 ~ 264VAC 120 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | PF>0.96/230VAC PF>0.97/115VAC at full load | |
| EFFICIENCY (Typ.) | 76.00% | |
| AC CURRENT (Typ.) | 2.5A/115VAC 1.2A/230VAC | |
| INRUSH CURRENT(Typ.) | COLD START 55A/230VAC | |
| LEAKAGE CURRENT | <3.5mA / 240VAC | |
| PROTECTION | OVERL OAD | 105 ~ 150% rated output power |
| Protection type : Constant current limiting, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 8.25-10.1V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| ENVIRONMENT | WORKING TEMP. | -10 ~ +60℃with cooling FAN (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.05%/℃(0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 | |
| EMS IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, light industry level, criteria A, EAC TP TC 020 | |
| OTHERS | MTBF | 191.8Khrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 222*75*41mm (L*W*H) | |
| PACKING | 0.62Kg; 24pcs/16.6Kg/1.63CUFT | |
Meanwell LPP-150-7.5 Features
l 3 years warranty
l Cooling by free air convection
l 100% full load burn-in test
l Universal AC input/ Full range
l Built-in active PFC function, PF>0.96
l Protections: Short circuit/Overload /Over voltage
l Protections: Over temperature (option)
l Fixed switching frequency at PFC:67KHz PWM:134KHz
Meanwell LPP-150-7.5 Mechanical Diagram
