LPP-100-27
25.37
Details

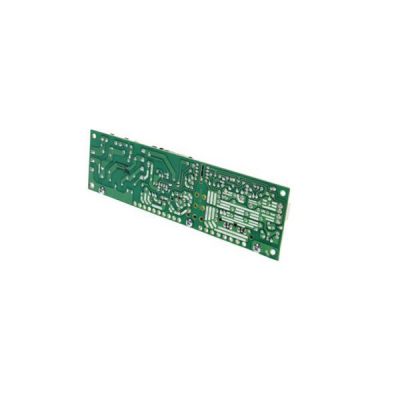

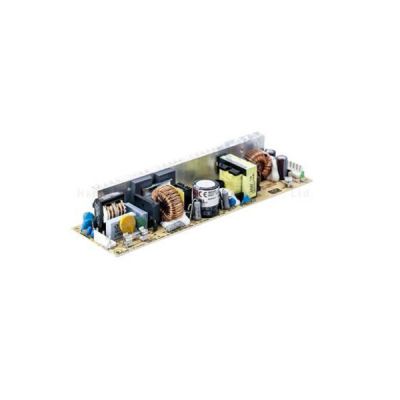

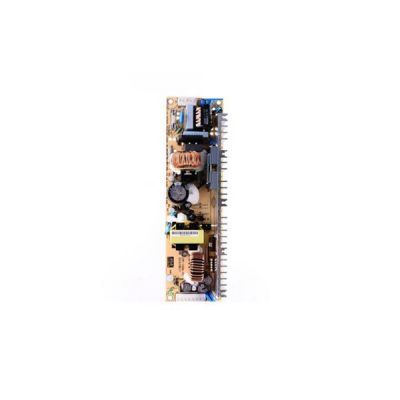

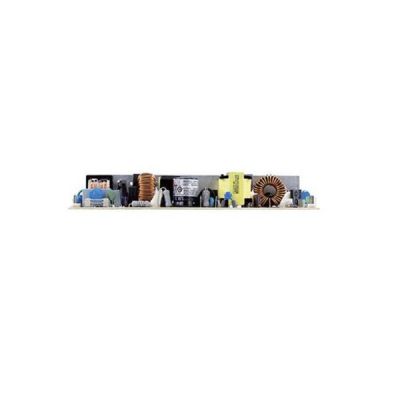

Meanwell LPP-100-27 is 100W Single Output PFC function Switching Power Supply with 27V3.8A0-3.8A102.6W150mVp-p25.7-29.7V. The product is designed in compact size and low profile offering 85~264VAC input. In addition, it outstands with Universal AC input/Full range and Fix switching frequency at 134KHz. The working efficiency reaches up to 83% and operates from -10 ℃through 60 ℃ under air convection without fan. As it delivers an extremely low no load power consumption and pass 100% full load burn-in test., this allows the end system to easily meet the worldwide energy requirements. What’s more, LPP-100-27 provides the various protection types such as Short circuit, Overload and Over voltage. and it complies with the international safety regulations such as UL62368-1, TUV BS EN/EN62368-1, EAC TP TC. Considering its High efficiency, low cost and longevity, Meanwell LPP-100-27 is a high price-to-performance power supply solution for various industrial applications.
Meanwell LPP-100-27 Specifications
| Model | LPP-100-27 | |
| OUTPUT | DC VOLTAGE | 27V |
| RATED CURRENT | 3.8A | |
| CURRENT RANGE | 0-3.8A | |
| RATED POWER | 102.6W | |
| RIPPLE & NOISE (max.) | 150mVp-p | |
| VOLTAGE ADJ. RANGE | 25.7-29.7V | |
| VOLTAGE TOL ERANCE | ±1.0% | |
| LINE REGULATION | ±0.5% | |
| LOAD REGUL .ATION | ±0.5% | |
| SETUP, RISE TIME | 600ms, 30ms/230VAC 1200ms, 30ms/115VAC at full load | |
| HOLD UP TIME (Typ.) | 28ms/230VAC 28ms/115VAC at full load | |
| INPUT | VOLTAGE RANGE | 85 ~ 264VAC 120 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | PF>0.95/230VAC PF>0.98/115VAC at full load | |
| EFFICIENCY (Typ.) | 83.00% | |
| AC CURRENT (Typ.) | 1.7A/115VAC 0.75A/230VAC | |
| INRUSH CURRENT(Typ.) | COLD START 30A/230VAC | |
| LEAKAGE CURRENT | <2mA / 240VAC | |
| PROTECTION | OVERL OAD | 105 ~ 150% rated output power |
| Protection type : Constant current limiting, recovers automatically after fault condition is removed | ||
| OVER VOLTAGE | 31-36.45V | |
| Protection type : Shut down o/p voltage, re-power on to recover | ||
| ENVIRONMENT | WORKING TEMP. | -10 ~ +60℃(Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -20 ~ +85℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.05%/℃(0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | UL62368-1, TUV BS EN/EN62368-1, EAC TP TC 004 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3, EAC TP TC 020 | |
| EMS IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55024, light industry level, criteria A, EAC TP TC 020 | |
| OTHERS | MTBF | 224.3Khrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 222*62*33.6mm (L*W*H) | |
| PACKING | 0.51Kg; 24pcs/13.9Kg/1.63CUFT | |
Meanwell LPP-100-27 Features
l Cooling by free air convection
l 3 years warranty
l 100% full load burn-in test
l Fixed switching frequency at PFC:67KHz PWM:134KHz
l Universal AC input/ Full range
l Built-in active PFC function
l Protections: Short circuit/Overload/Over voltage
Meanwell LPP-100-27 Mechanical Diagram
