LPHC-18
8.38
Details

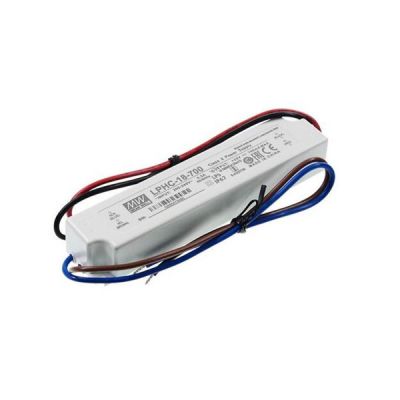

Meanwell LPHC-18 Series is 18W Single Output Switching Power Supply highlighting constant current mode and 180~264VAC input only. Since the work efficiency reaches high up to 80%, and fully encapsulated design with IP67 level enhances heat dissipation, this allows every model to fit the use at dry, damp and wet conditions. Apart from them, LPHC-18 is equipped with various protections like Short circuit, Over voltage and Over temperature. Considering its high efficiency, excellent quality, and low price, Meanwell LPHC-18 series serves as ideally suitable for LED related fixture or appliance such as LED Decoration or Advertisement.
Meanwell LPHC-18 Series Model Specifications
| Model | LPHC-18-350 | LPHC-18-700 | |
| RATED CURRENT | 350mA | 700mA | |
| DC VOLTAGE RANGE | 6-48V | 6-25V | |
| RATED POWER | 16.8W | 17.5W | |
| RIPPLE & NOISE (max.) | 300mVp-p | 250mVp-p | |
| VOLTAGE TOL ERANCE | ±5.0% | ||
| CURRENT ACCURACY | ±8.0% | ||
| LINE REGULATION | ±1.0% | ||
| LOAD REGULATION | ±3.0% | ||
| SETUP, RISE TIME | 3600ms, 100ms / 230VAC | ||
| HOLD UP TIME (Typ.) | 20ms/230VAC at full load | ||
| Input | VOLTAGE RANGE | 180 ~ 264VAC 254 ~ 370VDC | |
| FREQUENCY RANGE | 47 ~ 63Hz | ||
| EFFICIENCY (Typ.) | 80.00% | 80.00% | |
| AC CURRENT | 0.3A/230VAC | ||
| INRUSH CURRENT(Typ.) | COLD START 50A(twidth=190μs measured at 50% Ipeak) at 230VAC | ||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 13 units (circuit breaker of type B) / 22 units (circuit breaker of type C) at 230VAC | ||
| LEAKAGE CURRENT | 0.25mA / 240VAC | ||
| PROTECTION | OVER VOLTAGE | 50.4~ 60V | 28.75~ 33.75V |
| Protection type : Shut off o/p voltage, clamping by zener diode | |||
| OVER TEMPERATURE | Tj 170℃ typically (U1) Detect on main control IC | ||
| Protection type : Hiccup mode, recovers automatically after temperature goes down | |||
| ENVIRONMENT | WORKING TEMP. | -30~ +70℃ (Refer to "Derating Curve") | |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | ||
| TEMP. COEFFICIENT | ±0.2%/℃ (0 ~ 50℃) | ||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||
| SAFETY & EMC | SAFETY STANDARDS | BIS IS15885, EAC TP TC 004, IP67,LVD BS EN/EN62368-1 approved; design refer to UL1310 Class 2, CAN/CSA C22.2 No. 223-M91 | |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC | ||
| ISOLATION RESISTANCE | I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH | ||
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class A, BS EN/EN61000-3-2 Class A, BS EN/EN61000-3-3, EAC TP TC 020 | ||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020 | ||
| Others | MTBF | 7399.9K hrs min. Telcordia SR-332 (Bellcore) ; 1086.9Khrs min. MIL-HDBK-217F (25℃) | |
| DIMENSION | 140*30*22(L*W*H) | ||
| PACKING | 0.175Kg; 70pcs/13.3Kgs/0.71CUFT | ||
Meanwell LPHC-18 Series Features
l Constant current mode power supply
l 180-264VAC input only
l Fully encapsulated with IP67 level
l Protections: Short circuit/Over voltage/Over temperature
l Cooling by free air convection
l Class Ⅱ power unit, no FG
l Pass LPS
l 100% full load burn-in test
l Suitable for LED related fixture or appliance (such as LED Decoration or Advertisement devices)
l High reliability/Low cost
l 2 years warranty

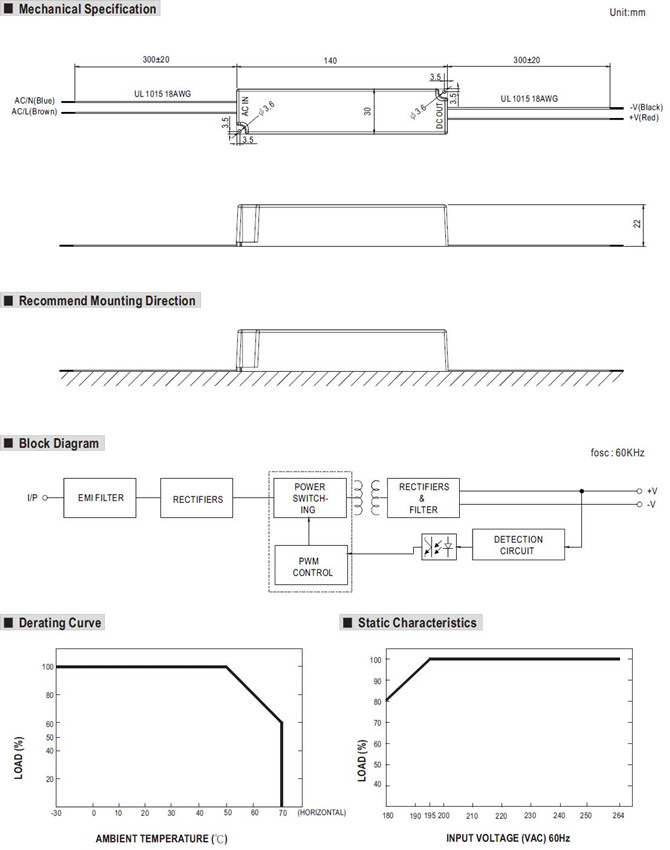

Meanwell LPHC-18 Series Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
Custom Tab
Abundant supply to meet market demand. The warehouse is rich in goods with all kinds of commodities, which Can meet the needs of different customers.
Fast delivery and high efficiency. The warehouse has sufficient supply, when customers need to order, we can quickly find the goods, and deliver out, which effectively improves the efficiency and saves valuable time for customers
Our products have more advantages in price. We always believe that you should enjoy higher quality with lower price. Therefore, we are committed to providing consumers with the most cost-effective products.
No matter how great our goals are, or how many great things waiting for us to do, we must keep our promises and do it well. Because these is one word that cannot be missing in the secret of success. That is "integrity".
