LPF-90D
23.02
Details
Meanwell LPF-90D Series is 90W AC/DC LED driver highlighting the constant current output. The entire series operates from 90 ~ 305 V AC and offers models with different rated voltage ranging between 15V and 54V. Since the high efficiency reaches up to 90.5% based on the fanless design, LPF-90D is able to work for-40℃ ~ +70℃ case temperature under free air convection. Apart from them, the product is rated with IP67 ingress protection level, and equipped with the 3 in 1 dimming function so as to providethe design flexibility for LED lighting system. Considering its longevity, high reliability and excellent quality, Meanwell LPF-90D Series is suitable to work for a variety of applications at dry or damp and wet locations.
Meanwell LPF-90D Series Encoding
| LPF | Series Name |
| 90D | Rated Wattage |
| 24 | Rated output voltage (15V/20/24V/30V/36V/42V/48V/54V) |
Meanwell LPF-90D Series Model Specifications
| Model | LPF-90D-15 | LPF-90D-20 | LPF-90D-24 | LPF-90D-30 | LPF-90D-36 | LPF-90D-42 | LPF-90D-48 | LPF-90D-54 | |
| OUTPUT | DC VOLTAGE | 15V | 20V | 24V | 30V | 36V | 42V | 48V | 54V |
| RATED CURRENT | 5A | 4.5A | 3.75A | 3A | 2.5A | 2.15A | 1.85A | 1.67A | |
| RATED POWER | 75W | 90W | 90W | 90W | 90W | 90.3W | 90.24W | 90.18W | |
| CONSTANT CURRENT REGION | 9-15V | 12-20V | 14.4-24V | 18-30V | 21.6-36V | 25.2-42V | 28.8-48V | 32.4-54V | |
| CURRENT RIPPLE | 5.0% max. at rated current | ||||||||
| CURRENT TOLERANCE | ±5.0% | ||||||||
| SETUP, RISE TIME | 1200ms, 200ms / 115VAC 500ms, 200ms / 230VAC | ||||||||
| HOLD UP TIME (Typ.) | 16ms/230VAC 16ms/115VAC | ||||||||
| Input | VOLTAGE RANGE | 90~305VAC 127~431VDC (Please refer to "STATIC CHARACTERISTIC" section) | |||||||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||||||
| POWER FACTOR | PF>=0.97/115VAC, PF>=0.96/230VAC, PF>=0.95/277VAC at full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section) | ||||||||
| TOTAL HARMONIC DISTORTION | THD< 20%(at load>=60%/115VC,230VAC; at load>=75%/277VAC) (Please refer to“TOTAL HARMONIC DISTORTION(THD)"section) | ||||||||
| EFFICIENCY (Typ.) | 89.00% | 89.50% | 90.00% | 90.50% | 90.50% | 90.50% | 90.50% | 90.50% | |
| AC CURRENT | 0.95A / 115VAC 0.5A / 230VAC 0.4A / 277VAC | ||||||||
| INRUSH CURRENT(Typ.) | COLD START 70A(twidth=435μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 | ||||||||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 4 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC | ||||||||
| LEAKAGE CURRENT | <0.75mA / 240VAC | ||||||||
| PROTECTION | OVER CURRENT | 95 ~ 108% | |||||||
| Constant current limiting, recovers automatically after fault condition is removed | |||||||||
| OVER VOLTAGE | 19-21V | 23-27V | 28-34V | 34-38V | 41-46V | 47-53V | 54-60V | 59-65V | |
| Shut down o/p voltage, re-power on to recover | |||||||||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover | ||||||||
| ENVIRONMENT | WORKING TEMP. | Tcase=-40 ~ +70℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section) | |||||||
| MAX. CASE TEMP. | Tcase=+70℃ | ||||||||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | ||||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | ||||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | ||||||||
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | ||||||||
| SAFETY & EMC | SAFETY STANDARDS | UL8750(type”HL”), CSA C22.2 No.250.13-12, TUV BS EN/EN61347-1, BS EN/EN61347-2-13, EAC TP TC 004, GB19510.1,GB19510.14,IP67 approved ; Design refer to UL60950-1 | |||||||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC | ||||||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | ||||||||
| EMC EMISSION | Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (at load>=60%) ; BS EN/EN61000-3-3, GB17743 and GB17625.1,EAC TP TC 020 | ||||||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Line 2KV),EAC TP TC 020 | ||||||||
| Others | MTBF | 3110.7K hrs min. Telcordia SR-332 (Bellcore) ; 267.3Khrs min. MIL-HDBK-217F (25℃) | |||||||
| DIMENSION | 161*61*36mm (L*W*H) | ||||||||
| PACKING | 0.7Kg;20pcs/15Kg/0.73CUFT | ||||||||
Meanwell LPF-90D Series Features
l Constant Current mode output
l Plastic housing with ClassⅡdesign
l Built-in active PFC function
l Class 2 power unit
l IP67 rating for indoor or outdoor installations
l Function:3 in 1 dimming
l Typical lifetime>50000 hours
l 5 years warranty
Meanwell LPF-90D Series Applications
l LED panel lighting
l LED downlight
l LED decorative lighting
l LED tunnel lighting
l Moving sign
l Type “HL" for use in Class l, Division 2 hazardous (Classified) location

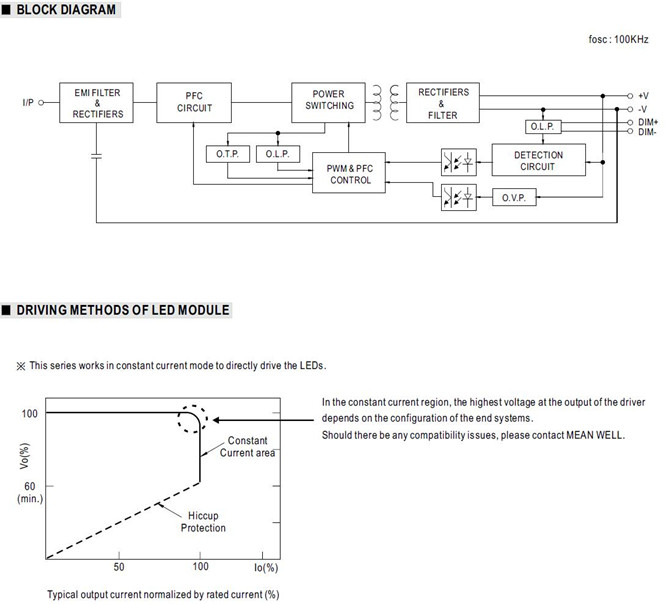

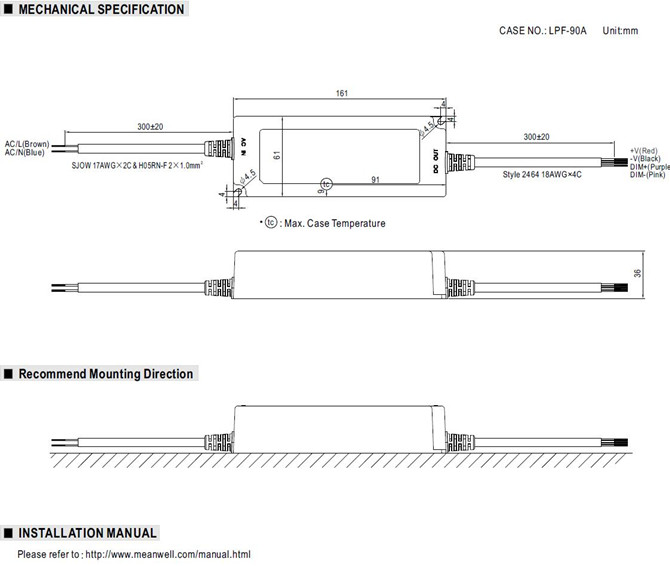

Meanwell LPF-90D Series Mechanical Diagram
