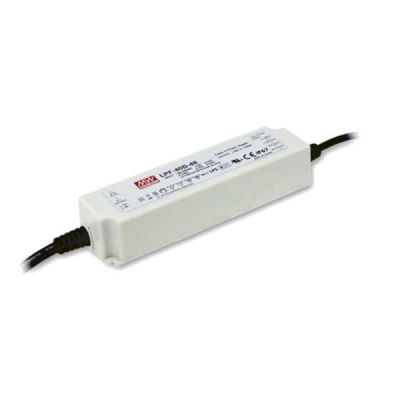

LPF-40D
17.85

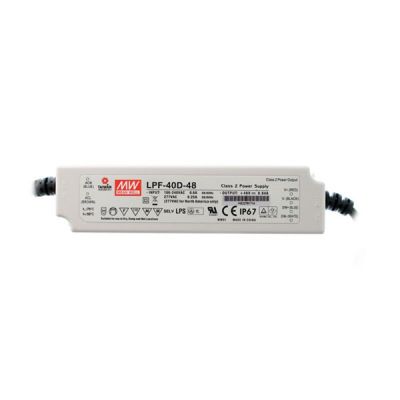

Details
Meanwell LPF-40D Series is 40W AC/DC LED driver highlighting the constant current output. At the same time, the entire series could operate from 90~305VAC and offer the models with different rated voltage ranging between 12V and 54V. Since the efficiency reaches high up to 89% based on fanless design, and rated with IP 67 ingress protection level. LPF-40D is able to work for -40°C ~ +80°C case temperature under free air convection. Apart from them, the product is equipped with the 3 in 1 dimming function, so as to providethe design flexibility for LED lighting system. Considering its longevity, high reliability and excellent quality, Meanwell LPF-40D Series is suitable to work for a variety of applications at dry or damp and wet locations.
Meanwell LPF-40D Series Encoding
| LPF | Series Name |
| 40D | Rated Wattage |
| 48 | Rated output voltage (12V/15V/20/24V/30V/36V/42V/48V/54V) |
Meanwell LPF-40D Series Model Specifications
| Model | LPF-40D-12 | LPF-40D-15 | LPF-40D-20 | LPF-40D-24 | LPF-40D-30 | LPF-40D-36 | LPF-40D-42 | LPF-40D-48 | LPF-40D-54 | |
| OUTPUT | DC VOLTAGE | 12V | 15V | 20V | 24V | 30V | 36V | 42V | 48V | 54V |
| RATED CURRENT | 3.34A | 2.67A | 2A | 1.67A | 1.34A | 1.12A | 0.96A | 0.84A | 0.76A | |
| RATED POWER | 40.08W | 40.08W | 40W | 40.08W | 40.2W | 40.32W | 40.32W | 40.32W | 41.04W | |
| CONSTANT CURRENT REGION | 7.2-12V | 9-15V | 12-20V | 14.4-24V | 18-30V | 21.6-36V | 25.2-42V | 28.8-48V | 32.4-54V | |
| CURRENT RIPPLE | 5.0% max. at rated current | |||||||||
| CURRENT TOLERANCE | ±5.0% | |||||||||
| SETUP, RISE TIME | 1000ms, 80ms / 115VAC 500ms, 80ms / 230VAC | |||||||||
| HOLD UP TIME (Typ.) | 16ms/230VAC 16ms/115VAC | |||||||||
| Input | VOLTAGE RANGE | 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section) | ||||||||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||||||
| POWER FACTOR | PF>=0.97/115VAC, PF>=0.95/230VAC, PF>=0.92/277VAC at full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section) | |||||||||
| TOTAL HARMONIC DISTORTION | THD< 20%(at load>=60%/115VC,230VAC; at load>=75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section) | |||||||||
| EFFICIENCY (Typ.) | 84.00% | 85.00% | 86.00% | 87.00% | 88.00% | 88.00% | 88.50% | 89.00% | 89.00% | |
| AC CURRENT | 0.6A / 115VAC 0.3A / 230VAC 0.25A/277VAC | |||||||||
| INRUSH CURRENT(Typ.) | COLD START 50A(twidth=210μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 | |||||||||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 12 units (circuit breaker of type B) / 20 units (circuit breaker of type C) at 230VAC | |||||||||
| LEAKAGE CURRENT | <0.75mA / 240VAC | |||||||||
| PROTECTION | OVER CURRENT | 95 ~ 108% | ||||||||
| Constant current limiting, recovers automatically after fault condition is removed | ||||||||||
| SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed. | |||||||||
| OVER VOLTAGE | 15-17V | 17.5-21V | 23-27V | 28-35V | 34-40V | 41-49V | 46-54V | 54-63V | 59-66V | |
| Shut down o/p voltage, re-power on to recover | ||||||||||
| OVER TEMPERATURE | Shut down o/p voltage, re-power on to recover | |||||||||
| ENVIRONMENT | WORKING TEMP. | Tcase=-40 ~ +80℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section) | ||||||||
| MAX. CASE TEMP. | Tcase=+80℃ | |||||||||
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |||||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |||||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |||||||||
| VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes | |||||||||
| SAFETY & EMC | SAFETY STANDARDS | UL8750, CSA C22.2 No. 250.0-08, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384,EAC TP TC 004, IP67, GB19510.1,GB19510.14 approved ; design refer to UL60950-1 | ||||||||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC | |||||||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |||||||||
| EMC EMISSION | Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (at load>60%) ; BS EN/EN61000-3-3, GB17743 and GB17625.1,EAC TP TC 020 | |||||||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Line 2KV),EAC TP TC 020 | |||||||||
| Others | MTBF | 3439.0K hrs min. Telcordia SR-332 (Bellcore) ; 394.9Khrs min. MIL-HDBK-217F (25℃) | ||||||||
| DIMENSION | 162.5*43*32mm (L*W*H) | |||||||||
| PACKING | 0.45Kg; 32pcs/15.4Kg/0.93CUFT | |||||||||

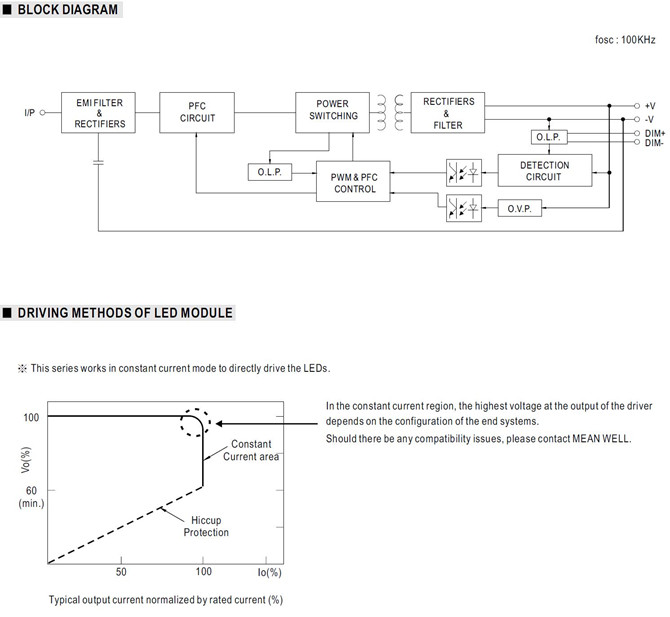

Meanwell LPF-40D Series Features
l Constant Current mode output
l Plastic housing with ClassⅡdesign
l Built-in active PFC function
l Class 2 power unit
l IP67 rating for indoor or outdoor installations
l Function: 3 in 1 dimming
l Typical lifetime> 50000 hours
l 5 years warranty
Meanwell LPF-40D Series Applications
l LED downlight
l Moving sign
l LED decorative lighting
l LED tunnel lighting
l LED panel lighting
Meanwell LPF-40D Series Mechanical Diagram

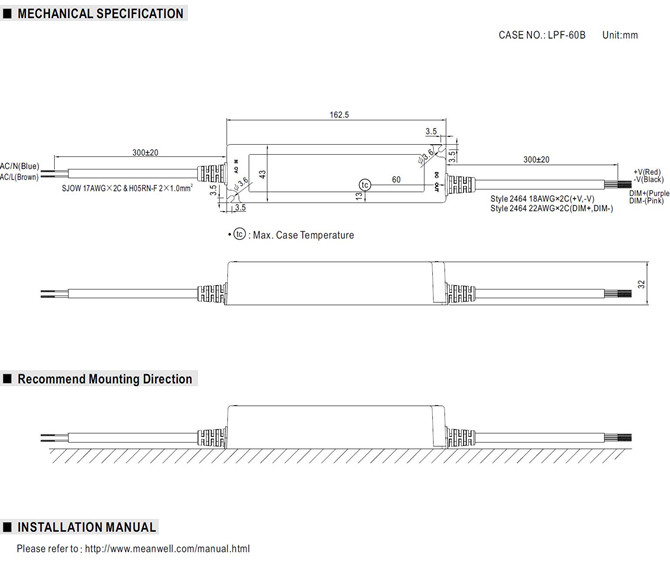

More Information
