Meanwell 16W Constant Voltage + Constant Current LED Driver

- +
Availability:In stock
SKU Meanwell LPF-16
Brand Meanwell
Details

Meanwell LPF-16 series is 16W AC/DC LED driver featuring the dual modes constant voltage and constant current output. At the same time, the entire series operates from 90~ 305V AC and offers models with different rated voltage ranging between 12V and 54V. Since the efficiency reaches up to 86% with fanless design, LPF-16 is able to work for -35°C ~ +70°C case temperature under free air convection. Considering its long lifetime, high reliability and excellent quality, Meanwell LPF-16 series is suitable to work for a variety of applications at dry or damp locations and the optional models with IP67 rating is able to further work at wet locations.

Meanwell LPF-16 price and specs 16W Constant Voltage and Constant Current LED Driver with PFC class 2 YCICT

Meanwell LPF-16 Series Encoding

LPF Series Name
16 Rated Wattage
20 Rated output voltage ( 12V/15V/20/24V/30V/36V/42V/48V/54V)
P IP Level Option
Blank IP30 In stock
P IP67 By request

Meanwell LPF-16 Series Model Specifications

Model LPF-16-12 LPF-16-15 LPF-16-20 LPF-16-24 LPF-16-30 LPF-16-36 LPF-16-42 LPF-16-48 LPF-16-54
OUTPUT DC VOLTAGE 12V 15V 20V 24V 30V 36V 42V 48V 54V
CONSTANT CURRENT REGION 6.6-12V 8.25-15V 11-20V 13.2-24V 16.5-30V 19.8-36V 23.1-42V 26.4-48V 29.7-54V
RATED CURRENT 1.34A 1.07A 0.8A 0.67A 0.54A 0.45A 0.39A 0.34A 0.3A
RATED POWER 16.08W 16.05W 16W 16.08W 16.2W 16.2W 16.38W 16.32W 16.2W
RIPPLE & NOISE (max.) 150mVp-p 150mVp-p 150mVp-p 150mVp-p 200mVp-p 250mVp-p 250mVp-p 250mVp-p 350mVp-p
VOLTAGE TOL ERANCE ±4.0% ±4.0% ±4.0% ±4.0% ±4.0% ±4.0% ±4.0% ±4.0% ±4.0%
LINE REGULATION ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
LOAD REGULATION ±2.0% ±1.5% ±1.0% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5% ±0.5%
SETUP, RISE TIME 1500ms, 80ms / 115VAC 500ms, 80ms / 230VAC
HOLD UP TIME (Typ.) 16ms/230VAC 16ms /115VAC
Input VOLTAGE RANGE 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR PF>=0.97/115VAC, PF>=0.95/230VAC, PF>=0.92/277VAC at full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION THD< 20%( at load>=60%/115VC,230VAC; at load>=75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.) 84.00% 84.00% 86.00% 86.00% 86.00% 86.00% 86.00% 86.00% 86.00%
AC CURRENT 0.4A / 115VAC 0.25A / 230VAC 0.2A/277VAC
INRUSH CURRENT(Typ.) COLD START 45A(twidth=200μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER 14 units (circuit breaker of type B) / 24 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT <0.75mA / 240VAC
PROTECTION OVER CURRENT 95 ~ 108%
Hiccup mode, recovers automatically after fault condition is removed
SHORT CIRCUIT Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE 15-18V 17.5-21V 23-27V 28-35V 34-40V 41-49V 46-54V 54-63V 59-66V
Shut down and latch off o/p voltage, re-power on to recover
OVER TEMPERATURE Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT WORKING TEMP. Tcase=-35 ~ +70 (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.  Tcase=+70
WORKING HUMIDITY 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS UL8750, CSA C22.2 No. 250.0-08; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384,J61347-1, J61347-2-13,EAC TP TC 004,GB19510.1,GB19510.14 approved,IP67 (optional) ; Design refer to UL60950-1
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC
ISOLATION RESISTANCE I/P-O/P:100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (at load>=50%) ; BS EN/EN61000-3-3,GB17743 and GB17625.1, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Line 2KV),EAC TP TC 020
Others MTBF 3572.8K hrs min. Telcordia SR-332 (Bellcore) ; 427.3K hrs min. MIL-HDBK-217F (25)
DIMENSION 148*40*32mm (L*W*H
PACKING 0.21Kg; 40pcs/9.4Kg/1.02CUFT

Meanwell LPF-16 Series Features

l  Constant Voltage + Constant Current mode output

l  Plastic housing with Class Ⅱdesign

l  Built-in active PFC function

l  Class 2 power unit

l  Standard type with IP30 level, optional IP67 with fully encapsulated

l  Typical lifetime> 50000 hours

l  5 years warranty

Meanwell LPF-16 price and specs 16W Constant Voltage and Constant Current LED Driver with PFC YCICT

Meanwell LPF-16 Series Applications

l  LED downlight

l  LED spotlight

l  LED decorative lighting

l  LED tunnel lighting

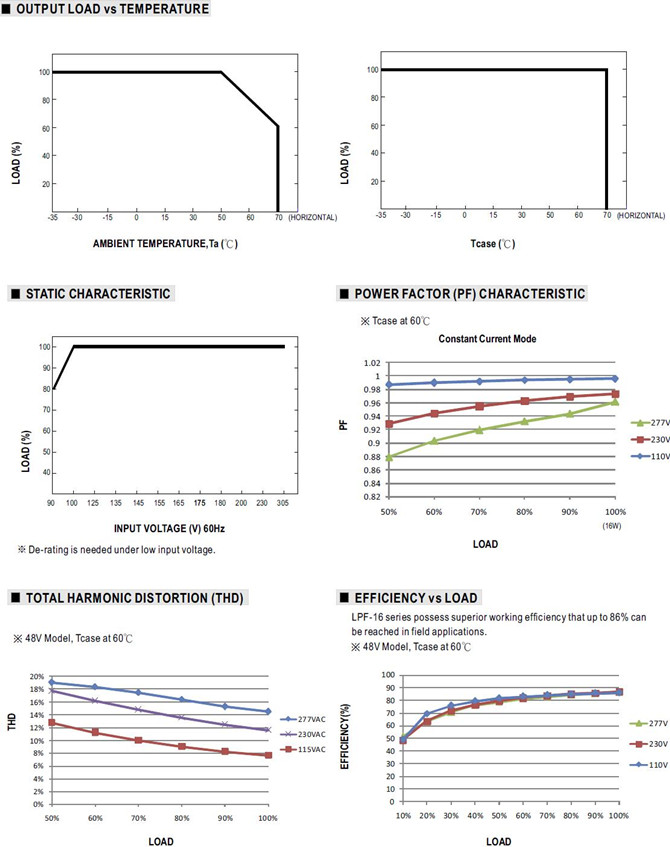

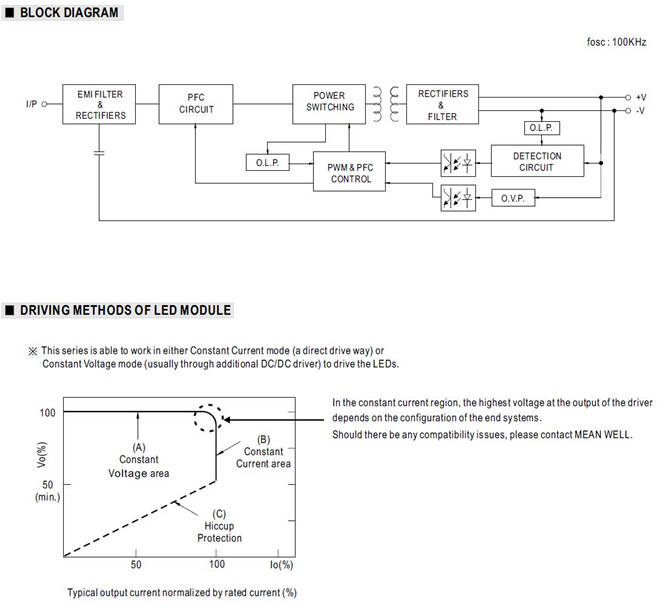

Meanwell LPF-16 Series Mechanical Diagram

Meanwell LPF-16 price and specs 16W Constant Voltage and Constant Current LED Driver PFC class 2 YCICT

Meanwell LPF-16 price and datasheet 16W Constant Voltage and Constant Current LED Driver PFC class 2 YCICT
