LPC-60
9.26

LPC-60

As low as $9.26

Meanwell 60W Single Output Switching Power Supply

- +
Availability:In stock
SKU Meanwell LPC-60
Brand Meanwell
Details

Meanwell LPC-60 Series is 60W Single Output Switching Power Supply highlighting constant current design and universal AC input/Full range. Since the work efficiency reaches high up to 87%, and fully encapsulated design enhances heat dissipation with IP67 level. This permits end system to easily meet the worldwide energy requirement and safety standards. In addition, LPC-60 is equipped with various protections like Short circuit and Over voltage. Considering its high efficiency, excellent quality, and competitive price, Meanwell LPC-60 Series serves as ideally suitable for LED related fixture or appliance such as LED Decoration or Advertisement devices

Meanwell LPC-60 price and specs Power Supply LPC-60-1050 LPC-60-1400 LPC-60-1750 constant current design IP67 60w ycict

Meanwell LPC-60 Series Model Specifications

Model LPC-60-1050 LPC-60-1400 LPC-60-1750
  RATED CURRENT 1050mA 1400mA 1750mA
DC VOLTAGE RANGE 9-48V 9-42V 9-34V
RATED POWER 50.4W 58.8W 59.5W
RIPPLE & NOISE (max.) 200mVp-p 200mVp-p 200mVp-p
VOLTAGE TOL ERANCE ±5.0%
CURRENT ACCURACY ±5.0%
LINE REGULATION ±1.0%
LOAD REGULATION ±2.0%
SETUP, RISE TIME 500ms, 120ms / 230VAC 500ms, 120ms / 115VAC at full load
HOLD UP TIME (Typ.) 50ms/230VAC 16ms/115VAC at full load
Input VOLTAGE RANGE 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE 47 ~ 63Hz
EFFICIENCY (Typ.) 87.00% 85.00% 87.00%
AC CURRENT 1.2A/115VAC 0.7A/230VAC
INRUSH CURRENT(Typ.) COLD START 60A(twidth=540μs measured at 50% Ipeak) at 230VAC
MAX. No. of PSUs on 16A CIRCUIT BREAKER 3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT 0.25mA / 240VAC
PROTECTION OVER VOLTAGE 50.4-60v 44.1-56.7V 39.1-45.9V
Protection type : Shut off o/p voltage, clamping by TVS diode
ENVIRONMENT WORKING TEMP. -30 ~ +70 (Refer to "Derating Curve")
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC SAFETY STANDARDS UL1310, CAN/CSA C22.2 No. 223-M91(for LPC-60-1750 only), BIS IS15885(except for LPC-60-1750), EAC TP TC 004, IP67, IEC62368-1 , BS EN/EN62368-1 approved
WITHSTAND VOLTAGE I/P-O/P:3KVAC
ISOLATION RESISTANCE I/P-O/P:>100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2 Class A, BS EN/EN61000-3-3, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020
Others MTBF 5269.3K hrs min. Telcordia SR-332 (Bellcore) ; 567.2K hrs min. MIL-HDBK-217F (25)
DIMENSION 162.5*42.5*32mm (L*W*H)
PACKING 0.4Kg; 32pcs/13.8Kg/0.63CUFT

Meanwell LPC-60 Series Features

l  Constant current design

l  Universal AC input / Full range

l  Withstand 300VAC surge input for 5 seconds

l  Protections: Short circuit/Over voltage

l  Cooling by free air convection

l  Fully encapsulated with IP67 level

l  Fully isolated plastic case

l  ClassⅡpower unit, no FG

l  Class 2 power unit

l  Pass LPS

l  Suitable for LED related fixture or appliance such as LED Decoration or Advertisement devices

l  100% full load burn-in test

l  Low cost, high reliability

l  2 years warranty

Meanwell LPC-60 price and specs Power Supply LPC-60-1050 LPC-60-1400 LPC-60-1750 constant current design IP67 60w ycict

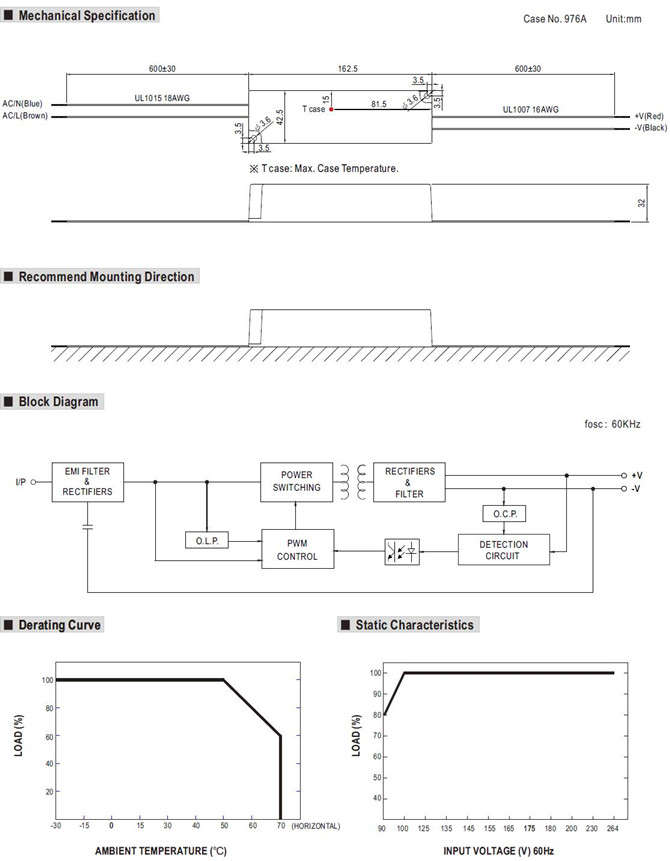

Meanwell LPC-60 Series Mechanical Diagram

Meanwell LPC-60 price and specs Power Supply LPC-60-1050 LPC-60-1400 LPC-60-1750 constant current IP67 level 60w ycict
