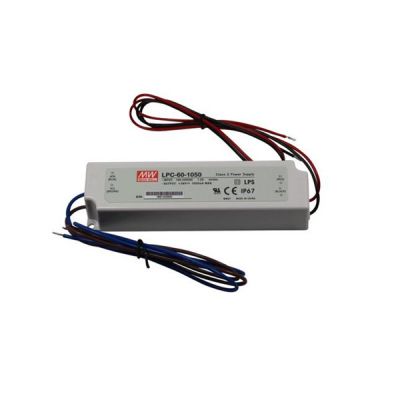

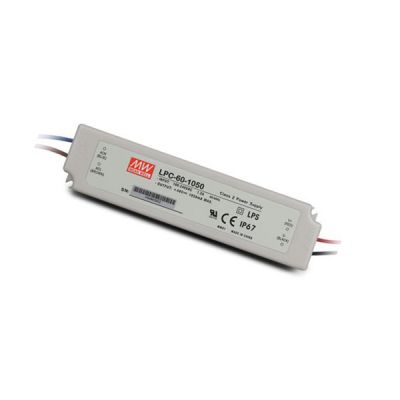

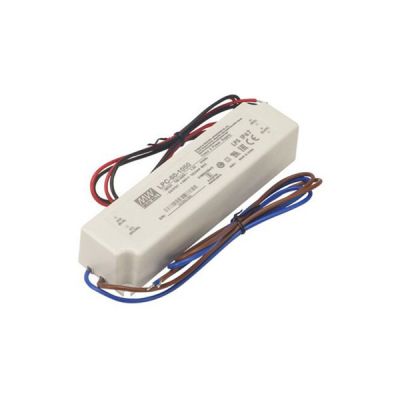

LPC-60-1050
9.26
Details
Meanwell LPC-60-1050 is 60W Single Output Switching Power Supply with 1050mA9-48V50.4W200mVp-p±5.0%±5.0%±1.0%±2.0%47~63Hz87.00%. The product features constant current design and universal AC input/Full range. As the work efficiency reaches high up to 87%, and fully encapsulated design enhances heat dissipation with IP67 level. This allows end system to easily fit worldwide energy requirements and safety standards. What’s more, LPC-60-1050 is supplied with various protections like Short circuit and Over voltage. Thanks to its high efficiency, excellent quality, and competitive price, Meanwell LPC-60-1050 is ideally suitable for LED related fixture or appliance such as LED Decoration or Advertisement devices
Meanwell LPC-60-1050 Specifications
| Model | LPC-60-1050 | |
| RATED CURRENT | 1050mA | |
| DC VOLTAGE RANGE | 9-48V | |
| RATED POWER | 50.4W | |
| RIPPLE & NOISE (max.) | 200mVp-p | |
| VOLTAGE TOL ERANCE | ±5.0% | |
| CURRENT ACCURACY | ±5.0% | |
| LINE REGULATION | ±1.0% | |
| LOAD REGULATION | ±2.0% | |
| SETUP, RISE TIME | 500ms, 120ms / 230VAC 500ms, 120ms / 115VAC at full load | |
| HOLD UP TIME (Typ.) | 50ms/230VAC 16ms/115VAC at full load | |
| Input | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 87.00% | |
| AC CURRENT | 1.2A/115VAC 0.7A/230VAC | |
| INRUSH CURRENT(Typ.) | COLD START 60A(twidth=540μs measured at 50% Ipeak) at 230VAC | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC | |
| LEAKAGE CURRENT | 0.25mA / 240VAC | |
| PROTECTION | OVER VOLTAGE | 50.4-60v |
| Protection type : Shut off o/p voltage, clamping by TVS diode | ||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | UL1310, CAN/CSA C22.2 No. 223-M91(for LPC-60-1750 only), BIS IS15885(except for LPC-60-1750), EAC TP TC 004, IP67, IEC62368-1 , BS EN/EN62368-1 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2 Class A, BS EN/EN61000-3-3, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020 | |
| Others | MTBF | 5269.3K hrs min. Telcordia SR-332 (Bellcore) ; 567.2K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 162.5*42.5*32mm (L*W*H) | |
| PACKING | 0.4Kg; 32pcs/13.8Kg/0.63CUFT | |
Meanwell LPC-60-1050 Features
l Pass LPS
l 100% full load burn-in test
l Low cost, high reliability
l 2 years warranty
l Constant current design
l Universal AC input / Full range
l Withstand 300VAC surge input for 5 seconds
l Protections: Short circuit/Over voltage
l Cooling by free air convection
l Fully encapsulated with IP67 level
l Fully isolated plastic case
l ClassⅡpower unit, no FG
l Class 2 power unit
l Suitable for LED related fixture or appliance such as LED Decoration or Advertisement devices
Meanwell LPC-60-1050 Mechanical Diagram
