LPC-35
8.06
Details

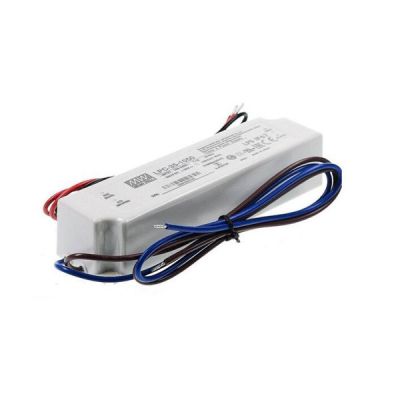

Meanwell LPC-35 Series is 35W Single Output Switching Power Supply designed in compact and small size. The entire series highlights constant current and universal AC input/Full range. Since the work efficiency reaches high up to 85%, and fully encapsulated design enhances heat dissipation with IP67 level. This allows end system to easily meet the worldwide energy requirement and safety standards. Apart from them, LPC-35 is equipped with various protections like Short circuit and Over voltage. Considering its high efficiency, excellent quality, and competitive price, Meanwell LPC-35 series serves as ideally suitable for LED related fixture or appliance such as LED Decoration or Advertisement devices
Meanwell LPC-35 Series Model Specifications
| Model | LPC-35-700 | LPC-35-1050 | LPC-35-1400 | |
| RATED CURRENT | 700mA | 1050mA | 1400mA | |
| DC VOLTAGE RANGE | 9-48V | 9-30V | 9-24V | |
| RATED POWER | 33.6W | 31.5W | 33.6W | |
| RIPPLE & NOISE (max.) | 200mVp-p | 700mA | 700mA | |
| VOLTAGE TOL ERANCE | ±5.0% | |||
| CURRENT ACCURACY | ±5.0% | |||
| LINE REGULATION | ±1.0% | |||
| LOAD REGULATION | ±2.0% | |||
| SETUP, RISE TIME | 500ms, 120ms / 230VAC 500ms, 120ms / 115VAC at full load | |||
| HOLD UP TIME (Typ.) | 50ms/230VAC 16ms/115VAC at full load | |||
| Input | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC | ||
| FREQUENCY RANGE | 47 ~ 63Hz | |||
| EFFICIENCY (Typ.) | 85.00% | |||
| AC CURRENT | 1.1A/115VAC 0.7A/230VAC | |||
| INRUSH CURRENT(Typ.) | COLD START 55A(twidth=500μs measured at 50% Ipeak) at 230VAC | |||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 4 units (circuit breaker of type B) / 7 units (circuit breaker of type C) at 230VAC | |||
| LEAKAGE CURRENT | 0.25mA / 240VAC | |||
| PROTECTION | OVER VOLTAGE | 50.4-60v | 31.5-40.5v | 27.6-32.4v |
| Protection type : Shut off o/p voltage, clamping by zener diode | ||||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃ (Refer to "Derating Curve") | ||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |||
| SAFETY & EMC | SAFETY STANDARDS | UL1310, CAN/CSA C22.2 No. 223-M91(except for LPC-35-700), BIS IS15885, IEC62368-1,EAC TP TC 004, BS EN/EN62368-1, IP67 approved; | ||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC | |||
| ISOLATION RESISTANCE | I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH | |||
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2 Class A, BS EN/EN61000-3-3, EAC TP TC 020 | |||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020 | |||
| Others | MTBF | 6050.2K hrs min. Telcordia SR-332 (Bellcore) ; 574.4K hrs min. MIL-HDBK-217F (25℃) | ||
| DIMENSION | 148*40*30mm (L*W*H) | |||
| PACKING | 0.34Kg; 40pcs/14.6Kg/0.70CUFT | |||
Meanwell LPC-35 Series Features
l Constant current design
l Universal AC input / Full range
l Withstand 300VAC surge input for 5 seconds
l Protections: Short circuit/Over voltage
l Cooling by free air convection
l Fully encapsulated with IP67 level
l Fully isolated plastic case
l Class II power unit, no FG
l Class 2 power unit
l Pass LPS
l Suitable for LED related fixture or appliance such as LED Decoration or Advertisement devices
l 100% full load burn-in test
l Low cost, high reliability
l 2 years Warranty

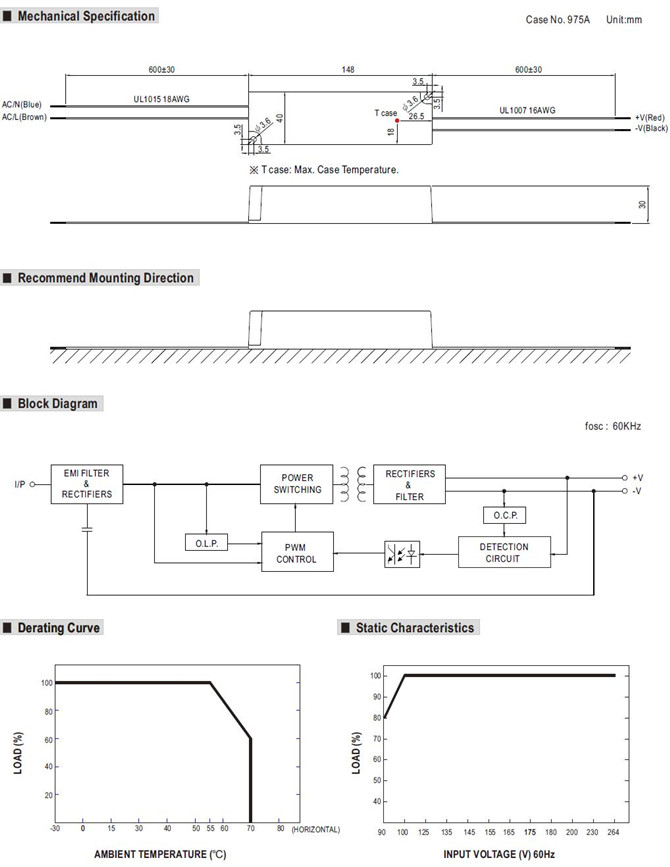

Meanwell LPC-35 Series Mechanical Diagram
