LPC-35-700
8.06
Details

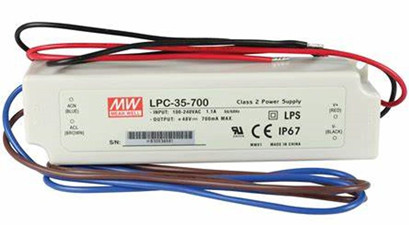

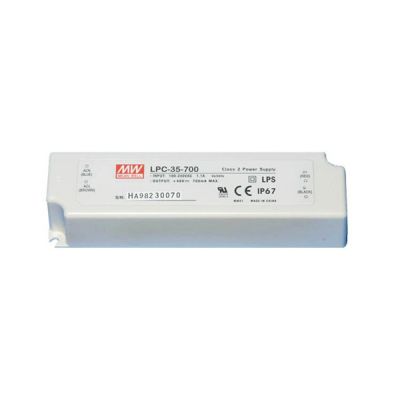

Meanwell LPC-35-700 is 35W Single Output Switching Power Supply with 700mA9-48V33.6W200mVp-p±5.0%±5.0%±1.0%±2.0%47~63Hz85.00%. The product is designed in compact and small size. At the same time, it features constant current and universal AC input/Full range. With the efficiency reaching high up to 85%, and fully encapsulated design enhancing heat dissipation with IP67 level. It permits end system to easily fit the worldwide energy requirement and safety standards. In addition, LPC-35-700 is supplied with various protections like Short circuit and Over voltage. Due to its high efficiency, excellent quality, and competitive price, Meanwell LPC-35-700 is ideally suitable for LED related fixture or appliance such as LED Decoration or Advertisement devices
Meanwell LPC-35-700 Specifications
| Model | LPC-35-700 | |
| RATED CURRENT | 700mA | |
| DC VOLTAGE RANGE | 9-48V | |
| RATED POWER | 33.6W | |
| RIPPLE & NOISE (max.) | 200mVp-p | |
| VOLTAGE TOL ERANCE | ±5.0% | |
| CURRENT ACCURACY | ±5.0% | |
| LINE REGULATION | ±1.0% | |
| LOAD REGULATION | ±2.0% | |
| SETUP, RISE TIME | 500ms, 120ms / 230VAC 500ms, 120ms / 115VAC at full load | |
| HOLD UP TIME (Typ.) | 50ms/230VAC 16ms/115VAC at full load | |
| Input | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 85.00% | |
| AC CURRENT | 1.1A/115VAC 0.7A/230VAC | |
| INRUSH CURRENT(Typ.) | COLD START 55A(twidth=500μs measured at 50% Ipeak) at 230VAC | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 4 units (circuit breaker of type B) / 7 units (circuit breaker of type C) at 230VAC | |
| LEAKAGE CURRENT | 0.25mA / 240VAC | |
| PROTECTION | OVER VOLTAGE | 50.4-60v |
| Protection type : Shut off o/p voltage, clamping by zener diode | ||
| ENVIRONMENT | WORKING TEMP. | -30 ~ +70℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | UL1310, CAN/CSA C22.2 No. 223-M91(except for LPC-35-700), BIS IS15885, IEC62368-1,EAC TP TC 004, BS EN/EN62368-1, IP67 approved; |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2 Class A, BS EN/EN61000-3-3, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020 | |
| Others | MTBF | 6050.2K hrs min. Telcordia SR-332 (Bellcore) ; 574.4K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 148*40*30mm (L*W*H) | |
| PACKING | 0.34Kg; 40pcs/14.6Kg/0.70CUFT | |
Meanwell LPC-35-700 Features
l 100% full load burn-in test
l Low cost, high reliability
l 2 years Warranty
l Class II power unit, no FG
l Class 2 power unit
l Pass LPS
l Constant current design
l Universal AC input / Full range
l Withstand 300VAC surge input for 5 seconds
l Protections: Short circuit/Over voltage
l Cooling by free air convection
l Fully encapsulated with IP67 level
l Fully isolated plastic case
l Suitable for LED related fixture or appliance such as LED Decoration or Advertisement devices
Meanwell LPC-35-700 Mechanical Diagram
