LPC-20
7.48
Details

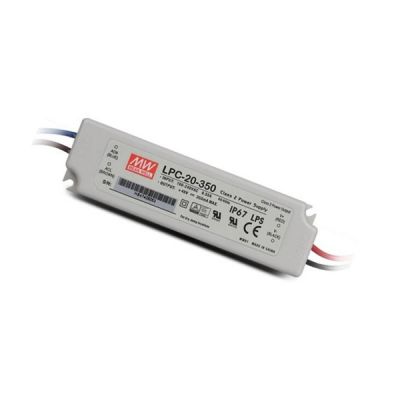

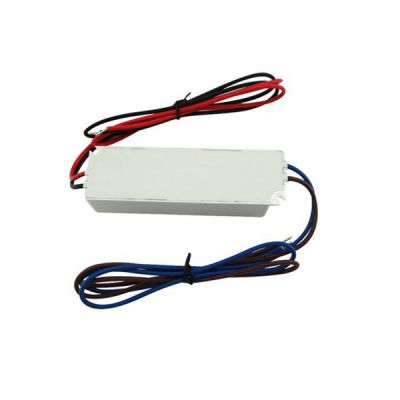

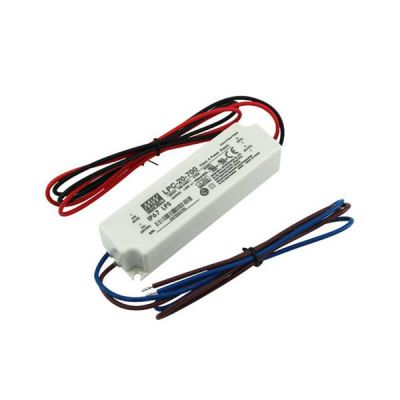

Meanwell LPC-20 Series is 20W Single Output Switching Power Supply designed in compact and small size. At the same time, the entire series highlights constant current design and universal AC input/Full range. Since the work efficiency reaches high up to 83%, and fully encapsulated design enhances heat dissipation with IP67 level. This allows end system to easily meet the worldwide energy requirement. Apart from them, LPC-20 is equipped with various protections like Short circuit and Over voltage. Considering its high efficiency, excellent quality, and competitive price, Meanwell LPC-20 series serves as ideally suitable for LED related fixture or appliance such as LED Decoration or Advertisement devices
Meanwell LPC-20 Series Model Specifications
| Model | LPC-20-350 | LPC-20-700 | |
| RATED CURRENT | 350mA | 700mA | |
| DC VOLTAGE RANGE | 9-48V | 9-30V | |
| RATED POWER | 16.8W | 21V | |
| RIPPLE & NOISE (max.) | 200mVp-p | 200mVp-p | |
| VOLTAGE TOL ERANCE | ±5.0% | ||
| CURRENT ACCURACY | ±5.0% | ||
| LINE REGULATION | ±1.0% | ||
| LOAD REGULATION | ±2.0% | ||
| SETUP, RISE TIME | 500ms, 250ms / 230VAC 500ms, 250ms / 115VAC at full load | ||
| HOLD UP TIME (Typ.) | 50ms/230VAC 16ms/115VAC at full load | ||
| Input | VOLTAGE RANGE | 90 ~ 264VAC 127 ~ 370VDC | |
| FREQUENCY RANGE | 47 ~ 63Hz | ||
| EFFICIENCY (Typ.) | 83.00% | ||
| AC CURRENT | 0.55A/115VAC 0.35A/230VAC | ||
| INRUSH CURRENT(Typ.) | COLD START 70A(twidth=220μs measured at 50% Ipeak) at 230VAC | ||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 8 units (circuit breaker of type B) / 14 units (circuit breaker of type C) at 230VAC | ||
| LEAKAGE CURRENT | 0.25mA / 240VAC | ||
| PROTECTION | OVER VOLTAGE | 50.4 ~ 60V | 31.5 ~ 40.5V |
| Protection type : Shut off o/p voltage, clamping by zener diode | |||
| ENVIRONMENT | WORKING TEMP. | -30~ +70℃ (Refer to "Derating Curve") | |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | ||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | ||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||
| SAFETY & EMC | SAFETY STANDARDS | UL879, UL1310 , CSA C22.2 No. 207-M89(except for LPC-20-350), CAN/CSA C22.2 No. 223-M91(except for LPC-20-350), IEC/BS EN/EN 62368-1, EAC TP TC 004, IP67 approved | |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC | ||
| ISOLATION RESISTANCE | I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH | ||
| EMC EMISSION | Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2 Class A, BS EN/EN61000-3-3, EAC TP TC 020 | ||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020 | ||
| Others | MTBF | 5708.9K hrs min. Telcordia SR-332 (Bellcore) ; 700.1K hrs min. MIL-HDBK-217F (25℃) | |
| DIMENSION | 118*35*26mm (L*W*H) | ||
| PACKING | 0.22Kg; 60pcs/14.2Kg/0.72CUFT | ||
Meanwell LPC-20 Series Features
l Constant current design
l Universal AC input / Full range
l Withstand 300VAC surge input for 5 seconds
l Protections: Short circuit/Over voltage
l Cooling by free air convection
l Small and compact size
l Fully encapsulated with IP67 level
l Fully isolated plastic case
l Class II power unit, no FG
l Class 2 power unit
l Pass LPS
l Suitable for LED related fixture or appliance such as LED Decoration Or Advertisement devices
l 100% full load burn-in test
l Low cost, high reliability
l 2 years warranty
Meanwell LPC-20 Series Mechanical Diagram
