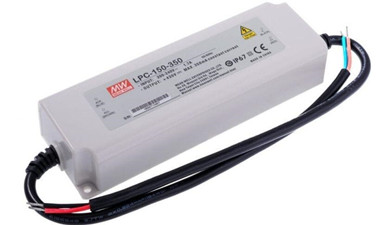

LPC-150-350
24.87
Details
Meanwell LPC-150-350 is 150W Single Output LED Power Supply with 350mA±5.0%215-430V150.5W±5.0%2Vp-p±1.0%±2.0%47~63Hz90.00%. The product features constant current design and 180~ 305VAC input only. At the same time, it offers the model with output current 350mA, which LED lighting applications employ most frequently. In addition, LPC-150-350 is based on class Il (without FG pin) design, housed with the 94V-0 flame retardant plastic case. As the work efficiency reaches up to 90%, it is able to operate at the ambient temperature between -25℃~+50℃ under free air convection. Moreover, the unit is equipped with various protections such as Short circuit, Over voltage and Over temperature. Due to its high efficiency, excellent quality, and low price, Meanwell LPC-150-350 is ideally suitable for LED related fixture or appliance like LED Decoration or Advertisement devices
Meanwell LPC-150-350 Specifications
| Model | LPC-150-350 | |
| RATED CURRENT | 350mA | |
| CURRENT ACCURACY | ±5.0% | |
| CONSTANT CURRENT REGION | 215-430V | |
| RATED POWER | 150.5W | |
| RIPPLE CURRENT | ±5.0% | |
| RIPPLE & NOISE | 2Vp-p | |
| LINE REGULATION | ±1.0% | |
| VOLTAGE TOL ERANCE | ±2.0% | |
| SETUP, RISE TIME | 1000ms, 80ms / 230VAC at full load | |
| HOLD UP TIME (Typ.) | 16ms/230VAC at full load | |
| Input | VOLTAGE RANGE | 180 ~ 305VAC 254VDC ~ 431VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 90.00% | |
| AC CURRENT | 1.7 A / 230VAC 1.5A / 277VAC | |
| INRUSH CURRENT(Typ.) | COLD START 40A(twidth=750μs measured at 50% Ipeak) at 230VAC | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC | |
| LEAKAGE CURRENT | <0.25mA / 277VAC | |
| PROTECTION | SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed |
| OVER VOLTAGE | 440-470V | |
| Protection type : Shut down and latch off o/p voltage re-power on to recovery | ||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |
| ENVIRONMENT | WORKING TEMP. | -25 ~ +50℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 10 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +70℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | BIS IS15885(for 700mA,1050mA,1400mA,2800mA only), EAC TP TC 004, IP67;IEC 62368-1 , BS EN/EN62368-1 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55032(CISPR32) Class B; BS EN/EN61000-3-2 Class A(<=80% load); BS EN/EN61000-3-3, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level , EAC TP TC 020 | |
| Others | MTBF | 3528.4K hrs min. Telcordia SR-332 (Bellcore) ; 479.1K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 191*63*37.5mm (L*W*H) | |
| PACKING | 0.74Kg; 20pcs/15.8Kg/0.95CUFT | |
Meanwell LPC-150-350 Features
l 100% full load burn-in test
l Low cost, high reliability
l 2 years warranty
l Constant current design
l 180~ 305VAC input only
l High efficiency up to 90%
l Protections: Short circuit/Over voltage/Over temperature
l Cooling by free air convection
l Fully encapsulated with IP67 level
l Fully isolated plastic case
l ClassⅡpower unit, no FG
l Suitable for LED related fixture or appliance such as LED Decoration or Advertisement devices
Meanwell LPC-150-350 Mechanical Diagram
