LPC-150-3150
26.81
Details

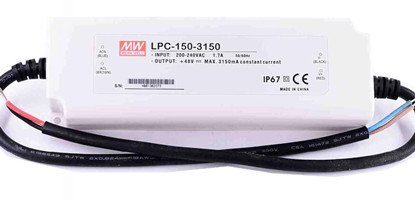

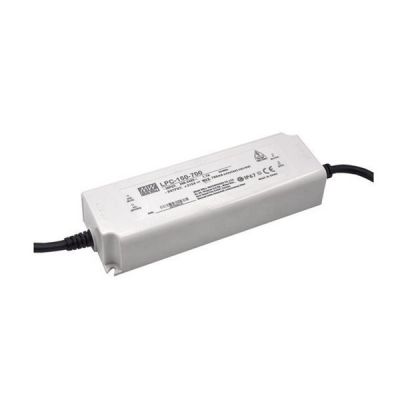

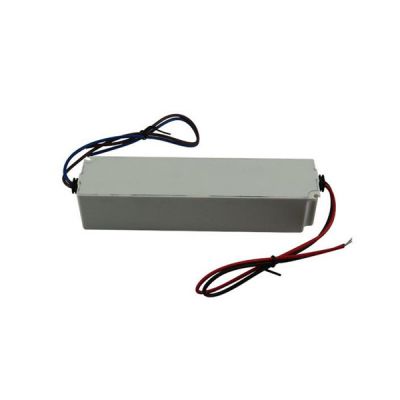

Meanwell LPC-150-3150 is 150W Single Output LED Power Supply with 3150mA±5.0%24-48V151.2W±5.0%1Vp-p±1.0%±2.0%47~63Hz90.00%. The product features constant current design and 180~ 305VAC input only. It is also provided with output current 3150mA, which LED lighting applications employ most frequently. In addition, LPC-150-3150 is based on class Il (without FG pin) design, and housed with the 94V-0 flame retardant plastic case as well. Since the efficiency reaches up to 90%, the unit is able to operate at the ambient temperature between -25℃~+50℃ under free air convection. What’s more, it is equipped with various protections such as Short circuit, Over voltage and Over temperature. In view of its high efficiency, excellent quality, and low price, Meanwell LPC-150-3150 is ideally suitable for LED related fixture or appliance like LED Decoration or Advertisement devices
Meanwell LPC-150-3150 Specifications
| Model | LPC-150-3150 | |
| RATED CURRENT | 3150mA | |
| CURRENT ACCURACY | ±5.0% | |
| CONSTANT CURRENT REGION | 24-48V | |
| RATED POWER | 151.2W | |
| RIPPLE CURRENT | ±5.0% | |
| RIPPLE & NOISE | 1Vp-p | |
| LINE REGULATION | ±1.0% | |
| VOLTAGE TOL ERANCE | ±2.0% | |
| SETUP, RISE TIME | 1000ms, 80ms / 230VAC at full load | |
| HOLD UP TIME (Typ.) | 16ms/230VAC at full load | |
| Input | VOLTAGE RANGE | 180 ~ 305VAC 254VDC ~ 431VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (Typ.) | 90.00% | |
| AC CURRENT | 1.7 A / 230VAC 1.5A / 277VAC | |
| INRUSH CURRENT(Typ.) | COLD START 40A(twidth=750μs measured at 50% Ipeak) at 230VAC | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 3 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC | |
| LEAKAGE CURRENT | <0.25mA / 277VAC | |
| PROTECTION | SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed |
| OVER VOLTAGE | 55-65V | |
| Protection type : Shut down and latch off o/p voltage re-power on to recovery | ||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |
| ENVIRONMENT | WORKING TEMP. | -25 ~ +50℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 10 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +70℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY & EMC | SAFETY STANDARDS | BIS IS15885(for 700mA,1050mA,1400mA,2800mA only), EAC TP TC 004, IP67;IEC 62368-1 , BS EN/EN62368-1 approved |
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC | |
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55032(CISPR32) Class B; BS EN/EN61000-3-2 Class A(<=80% load); BS EN/EN61000-3-3, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level , EAC TP TC 020 | |
| Others | MTBF | 3528.4K hrs min. Telcordia SR-332 (Bellcore) ; 479.1K hrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 191*63*37.5mm (L*W*H) | |
| PACKING | 0.74Kg; 20pcs/15.8Kg/0.95CUFT | |
Meanwell LPC-150-3150 Features
l Constant current design
l 2 years warranty
l 180~ 305VAC input only
l High efficiency up to 90%
l Cooling by free air convection
l Fully encapsulated with IP67 level
l Fully isolated plastic case
l ClassⅡpower unit, no FG
l 100% full load burn-in test
l Low cost, high reliability
l Protections: Short circuit/Over voltage/Over temperature
l Suitable for LED related fixture or appliance such as LED Decoration or Advertisement devices
Meanwell LPC-150-3150 Mechanical Diagram
