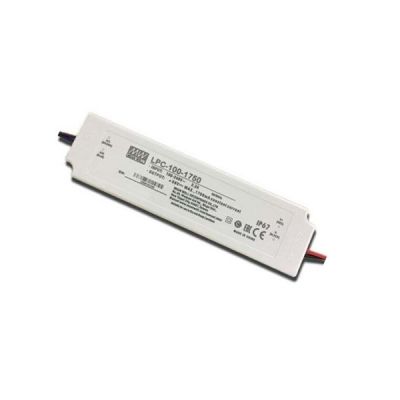

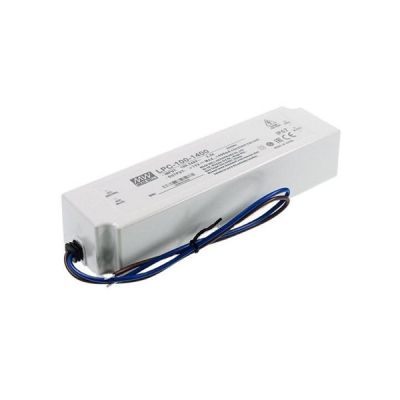

Meanwell LPC-100 Series is 100W single output AC/DC LED switching power supply highlighting constant current design and universal AC input/full range. At the same time, the entire series provides various models with output current ranging from 350mA through 2100mA which LED lighting applications employ most frequently. Moreover, LPC-100 operates for the range 90~264VAC, so they are able to perfectly work for most of the countries in the world. Additionally, the series is based on class Il (without FG pin) design, housed with the 94V-0 flame retardant plastic case. With working efficiency reaching up to 90%, it can work at the ambient temperature between -25℃~+50℃ under air convection. Considering its high efficiency, excellent quality, and low price, Meanwell LPC-100 Series serves as ideally suitable for LED related fixture or appliance such as LED Decoration or Advertisement devices
Meanwell LPC-100 Series Encoding
| LPC | Series Name |
| 100 | Output wattage |
| 700 | Output Current |
Meanwell LPC-100 Series Model Specifications
| Model | LPC-100-350 | LPC-100-500 | LPC-100-700 | LPC-100-1050 | LPC-100-1400 | LPC-100-1750 | LPC-100-2100 | |
| RATED CURRENT | 350mA | 500mA | 700mA | 1050mA | 1400mA | 1750mA | 2100mA | |
| CURRENT ACCURACY | ±5.0% | |||||||
| CONSTANT CURRENT REGION | 143-286V | 100-200V | 72-143V | 48-96V | 36-72V | 29-58V | 24-48V | |
| RATED POWER | 100.1W | 100W | 100.1W | 100.8W | 100.8W | 101.5W | 100.8W | |
| RIPPLE CURRENT | ±5.0% | |||||||
| RIPPLE & NOISE | 1.5Vp-p | 1.5Vp-p | 1Vp-p | 1Vp-p | 1Vp-p | 1Vp-p | 1Vp-p | |
| LINE REGULATION | ±1.0% | |||||||
| VOLTAGE TOL ERANCE | ±1.5% | |||||||
| SETUP, RISE TIME | 1000ms, 80ms / 230VAC 2000ms,80ms/115VAC at full load | |||||||
| HOLD UP TIME (Typ.) | 16ms/230VAC 10ms/115vac at full load | |||||||
| Input | VOLTAGE RANGE | 90 ~ 264VAC 127VDC ~ 370VDC | ||||||
| FREQUENCY RANGE | 47 ~ 63Hz | |||||||
| EFFICIENCY (Typ.) | 90.00% | 89.00% | 89.50% | |||||
| AC CURRENT | 2.2 A / 115VAC 1.2A / 230VAC | |||||||
| INRUSH CURRENT(Typ.) | COLD START 75A(twidth=980μs measured at 50% Ipeak) at 230VAC | |||||||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 1 units (circuit breaker of type B) / 2 units (circuit breaker of type C) at 230VAC | |||||||
| LEAKAGE CURRENT | <0.25mA / 240VAC | |||||||
| PROTECTION | SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed | ||||||
| OVER VOLTAGE | 315-345V | 220-240V | 160-172V | 108-120V | 80-97V | 65-80V | 58-68V | |
| Protection type : Shut down and latch off o/p voltage re-power on to recovery | ||||||||
| ENVIRONMENT | WORKING TEMP. | -25 ~ +50℃ (Refer to "Derating Curve") | ||||||
| WORKING HUMIDITY | 10 ~ 95% RH non-condensing | |||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |||||||
| SAFETY & EMC | SAFETY STANDARDS | IEC 62368-1;EAC TP TC 004, IP67 , BS EN/EN62368-1 approved | ||||||
| WITHSTAND VOLTAGE | I/P-O/P:3KVAC | |||||||
| ISOLATION RESISTANCE | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | |||||||
| EMC EMISSION | Compliance to BS EN/EN55032(CISPR32) Class B; BS EN/EN61000-3-2 Class A(<=80% load); BS EN/EN61000-3-3, EAC TP TC 020 | |||||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level , EAC TP TC 020 | |||||||
| Others | MTBF | 4121.8K hrs min. Telcordia SR-332 (Bellcore) ; 511.2K hrs min. MIL-HDBK-217F (25℃) | ||||||
| DIMENSION | 190*52*37mm (L*W*H) | |||||||
| PACKING | 0.61Kg;20pcs/13.2Kg/0.55CUFT | |||||||
Meanwell LPC-100 Series Features
l Constant current design
l Universal AC input/full range
l Withstand 300VAC surge input for 5 seconds
l High efficiency up to 90%
l Protections: Short circuit/Over voltage
l Cooling by free air convection
l Fully encapsulated with IP67 level
l Fully isolated plastic case
l Class Ⅱpower unit, no FG
l 100% full load burn-in test
l Low cost, high reliability
l 2 years warranty
l Suitable for LED related fixture or appliance such as LED Decoration or Advertisement devices

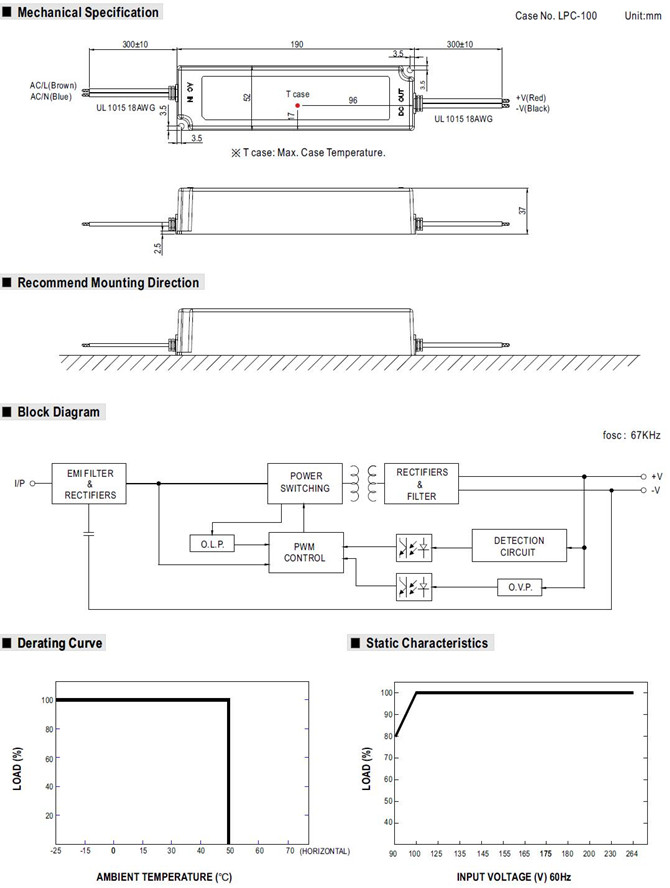

Meanwell LPC-100 Series Mechanical Diagram
