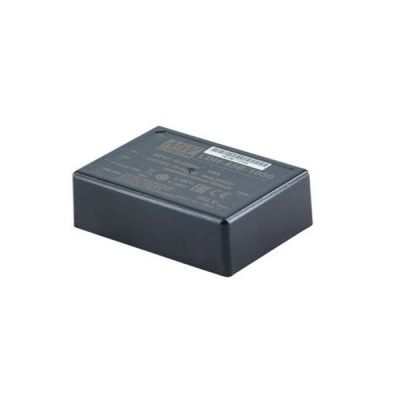

LDH-65-1050
13.38
Details
Meanwell LDH-65-1050 is 65W DC/DC LED driver with 1050mA12.5-60VDC63W5%9.5~32VDC91.5%/12V 95.5%/24V6.2A/12VDC, 3.1A/24VDC. The item highlights constant current output. And it could work from 9.5~ 32VDC with rated current 1050mA. The efficiency reaches high up to 96%. Under the design of 94V-0 flame retardant plastic case, the fully-potted silicone allows to meet solar LED street light enhancing the heat dissipation. Moreover, LDH-65-1050 is provided with various function options such as dimming methodologies. Thanks to its long lifetime, high reliability and excellent performance, Meanwell LDH-65-1050 is an ideally suitable solution for the optimal design flexibility for DC source LED lighting system
Meanwell LDH-65-1050 Encoding
| LDH | Series Name |
| 65 | Rated Wattage |
| 1050 | Output Current ( 700/1050/1400/1750mA) |

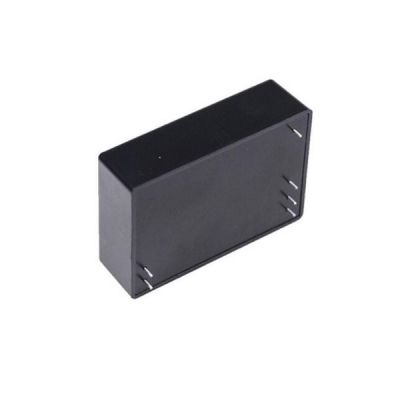

| W | Blank: Pin mounted Style |

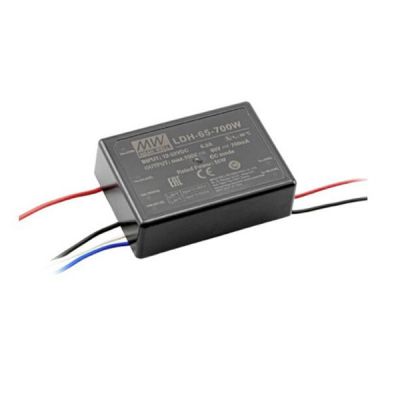

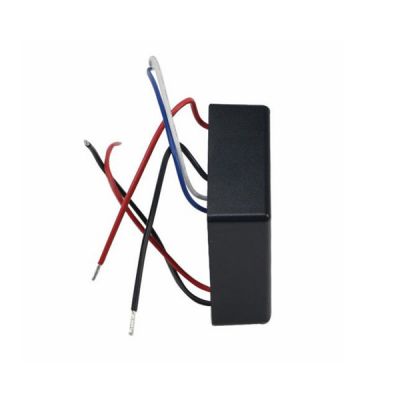

| W: Lead Wire Style |
Meanwell LDH-65-1050 Specifications
| Model | LDH-65-1050□ | |
| OUTPUT | RATED CURRENT | 1050mA |
| CURRENT ACCURACY (Typ.) | ±5% at 12VDC input and 24 VDC Input | |
| VOLTAGE RANGE | 12.5-60VDC | |
| RATED POWER | 63W | |
| CURRENT RIPPLE | 5%( at rated current) | |
| Input | VOLTAGE RANGE | 9.5~32VDC |
| EFFICIENCY (Typ) | 91.5%/12V 95.5%/24V | |
| DC CURRENT (Typ) | 6.2A/12VDC, 3.1A/24VDC | |
| DIMMING | DIMMING FUNCTION | Leave open if not used |
| 1KHz-3KHz 10V PWM signal or 0-10V DC input | ||
| QUIESCENT INPUT CURRENT IN SHUTDOWN MODE(Typ.) |
10mA when PWM dimming OFF at12VDC | |
| PROTECTION | SHORT CIRCUIT | Output short circuit, the power supply will be damaged |
| OVER VOLTAGE | 61-100V | |
| NO LOAD | Output voltage rise to OVP, and drop equal to input voltage, re-power to recovery | |
| ENVIRONMENT | WORKING TEMP. | -40 ~ +60℃ (Refer to "Derating Curve") |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +85℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SOLDERING TEMPERATURE | Wave soldering: 265℃,5s (max.); Manual soldering: 390℃,3s (max) | |
| EMC | SAFETY STANDARDS | LVD BS EN/EN61347-1, BS EN/EN61347-2-13, EAC TP TC 004 approved |
| EMC EMISSION | Compliance to BS EN/EN55015;EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61547,BS EN/EN61000-4-2,3,4,6,8; light industry level, EAC TP TC 020 | |
| Others | MTBF | 9118.4K hrs min. Telcordia TR/SR-332(Bellcore); 874.9 Khrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 75*53*22.7mm (L*W*H) | |
| PACKING | Pin mounted style: 152g; 100pcs/15.2kg/0.86CUFT Lead wire style: 159g; 100pcs/15.9kg/1.07CUFT | |
Meanwell LDH-65-1050 Features
l DC/DC step-up converter
l Fully encapsulated
l 3 years warranty
l High efficiency up to 96%
l 2 in 1dimming (0-10V, PWM)
l Protections: Short circuit / Over voltage
l Cooling by free air convection
l Constant current output: 700mA to 1750mA
l Wide output LED forward voltage up to 80V DC
l Wide DC input voltage operation 9.5~32V
Meanwell LDH-65-1050 Applications
l DC battery source lighting
l Portable lighting
l LED solar street lighting
l LED greehouse lighting
l LED Low-bay lighting
Meanwell LDH-65-1050 Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
