LDD-L
3.02
Details

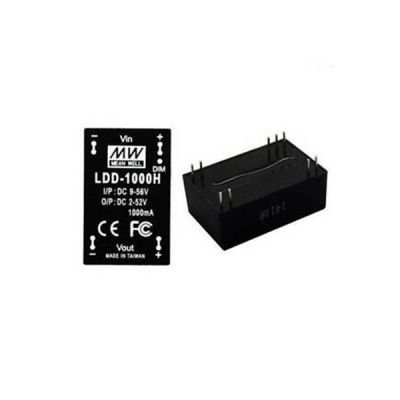

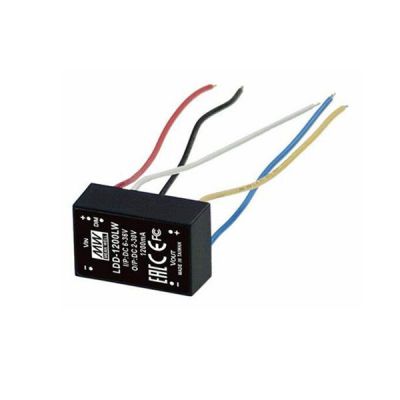

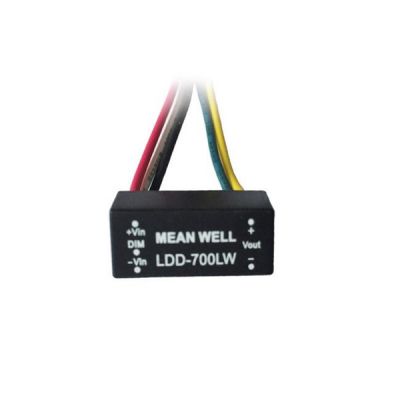

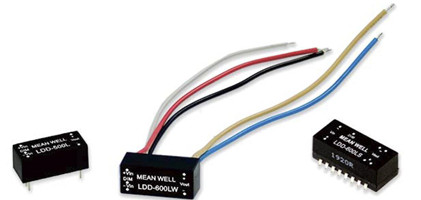

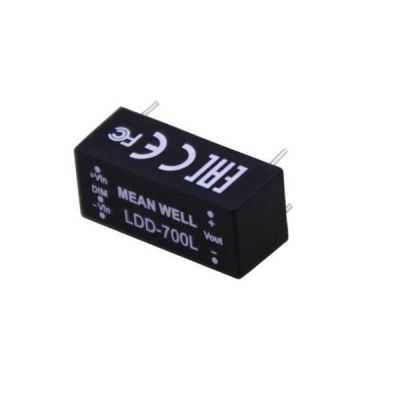

Meanwell LDD-L is DC-DC Constant Current Step-Down LED driver designed in compact size. The entire series could operate from 6~ 36VDC and offer models with different rated current ranging between 300mA and 1500mA. The work efficiency reaches high to 95%, and operates at -40℃~+70℃ under natural air cooling and heat dissipation conditions. Under Built-in EMI filter, LDD-L complies with BS EN/EN55015 and FCC part15 without additional input filter and capacitors. Moreover, the series is equipped with various protections such as Short circuit and Over temperature. LDD, LDB, LDH series are all DC-DC constant current output LED drivers, LDD is step-down type, LDH is step-up type, and LDB is buck-boost type model. The packaging forms have three forms: pin type, lead type and SMD chip type, which is convenient for various application scenarios. Considering its longevity, high reliability and low cost, Meanwell LDD-L Series serves as an ideally suitable solution for driving illumination LED.
Meanwell LDD-L Series Model Specifications
| Model | LDD-300L | LDD-350L | LDD-500L | LDD-600L | LDD-700L | LDD-1000L | LDD-1200L | LDD-1500L | |
| OUTPUT | CURRENT RANGE | 300mA | 350mA | 500mA | 600mA | 700mA | 1000mA | 1200mA | 1500mA |
| VOLTAGE RANGE | 2 ~ 32VDC for LDD-300~700L/LW ; 2~ 28VDC for LDD-300~700LS | 2 ~ 30VDC | |||||||
| CURRENT ACCURACY (Typ.) | ±5% at 24VDC input | ||||||||
| RIPPLE & NOISE (max.) | 150mVp-p | 150mVp-p | 150mVp-p | 200mVp-p | 200mVp-p | 1.5Vp-p | 1.5Vp-p | 1.5Vp-p | |
| SWITCHING FREQENCY | 40KHz ~ 1000KHz | 1000KHz | |||||||
| EXTERNAL CAPACITANCE LOAD (max) | 2.2uF | ||||||||
| Input | VOLTAGE RANGE | 9 ~ 36VDC for LDD-300~700L/LW ; 9~ 32VDC for LDD-300~700LS | 6 ~ 36VDC | ||||||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||||||
| EFFICIENCY (max.) | 95% at full load and 24VDC/36VDC input for LDD-300~700L/LW ; 95% at full load and 24VDC input for LDD-300~700LS | 95% at full load and 24VDC/36VDC input for LDD-1000~1500L/LW | |||||||
| DC CURRENT Full load | 300mA | 350mA | 500mA | 600mA | 700mA | 990mA | 1160mA | 1340mA | |
| DC CURRENT No load | 5mA | ||||||||
| FILTER | Capacitor | ||||||||
| PWM DIMMING & ON/OFF CONTROL | REMOTE ON/OFF | Leave open if not use | |||||||
| Power ON with dimming: DIM ~ -Vin >2.6 ~ 5.5VDC or open circuit | Power ON with dimming: DIM ~ -Vin >2.6 ~ 5.5VDC or open circuit | ||||||||
| Power OFF : DIM ~ -Vin < 0.5VDC or short | Power OFF : DIM ~ -Vin < 0.4VDC or short | ||||||||
| PWM FREQUENCY | 100 ~ 1KHz | 100 ~ 500Hz | |||||||
| QUIESCENT INPUT CURRENT IN SHUTDOWN MODE (max.) | 1mA at PWM dimming OFF and 24VDC input | ||||||||
| PROTECTION | SHORT CIRCUIT | Regulated at rated output current | |||||||
| Protection type: Can be continued, recovers automatically after fault condition is removed | |||||||||
| OVER TEMPERATURE | Tj 150℃typically (IC1) detect on main control IC | ||||||||
| Protection type : Shut down, recovers automatically after temperature goes down | |||||||||
| OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | ||||||||
| ENVIRONMENT | WORKING TEMP. | -40 ~ + 85℃ (Refer to derating curve) | -40 ~ + 71℃(Refer to derating curve) | ||||||
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing for LDD-300~700L/LW ; 20% ~ 85% RH non-condensing for LDD-300~700LS | 20% ~ 90% RH non-condensing for LDD-1000~1500L/LW ; 20%~85% RH non-condensing for LDD-1000~1500LS | |||||||
| STORAGE TEMP., HUMIDITY | -55 ~ +125℃, 10 ~ 95% RH | ||||||||
| TEMP. COEFFICIENT | ±0.03% /℃ | ||||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes | ||||||||
| OPERATING CASE TEMP. (max.) | 100℃ | ||||||||
| EMC | SAFETY STANDARDS | EAC TP TC 020/2011 approved | |||||||
| EMC EMISSION | Compliance to BS EN/EN55015, FCC part 15 class B, EAC TP TC 020 | ||||||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,6,8, light industry level, criteria A, EAC TP TC 020 | ||||||||
| Others | MTBF | 1000Khrs min. MIL-HDBK-217F (25℃) | |||||||
| DIMENSION | 22.6*9.9*8.9mm or 0.89"*0.39"*0.35" inch (L*W*H) for LDD-300~700L/LW ; 25.4*10.5*9.3mm or 1"*0.4135"*0.366" inch (L*W*H) for LDD-300~700LS | ||||||||
| 31.8*20.3*12.2mm or 1.25"*0.8"*0.48" inch (L*W*H) for LDD-1000~1500L/LW ; 31.8*20.3*10.9mm or 1.25"*0.8"*0.43" inch (L*W*H) for LDD-1000~1500LS | |||||||||
| WEIGHT | LDD-300~700L:4g ; LDD-300~700LW:7.3g ; LDD-300~700LS :3.4g LDD-1000~1500L:15.6g ; LDD-1000~1500LW:18g ; LDD-1000~1500LS:12.8g | ||||||||
| POTTING MATERIAL | Expoxy (UL94-V0) for LDD-300~700L/LW ; without potted for LDD-300~700LS Expoxy(UL94-V0) for LDD-1000~1500L/LW ; without potted for LDD-1000~1500LS |
||||||||
Meanwell LDD-L Series Features
l DC/DC step-down converter
l Constant current output: 300mA to 700mA
l Wide input voltage: 9 ~ 36VDC
l Wide output LED string voltage: 2 ~ 32VDC
l High efficiency up to 95%
l Built-in EMI filter, comply with BS EN/EN55015 and FCC part15without additional input filter and capacitors
l Built-in PWM dimming and remote ON/OFF control
l Protections: Short circuit/Over temperature
l Cooling by free air convection
l Fully encapsulated with IP67 level for pin and wire style
l Compact size
l Low cost, high reliability
l Suitable for driving illumination LED
l 3 years warranty
Meanwell LDD-L Series Mechanical Diagram
