LDD-H-DA
12.26
Details

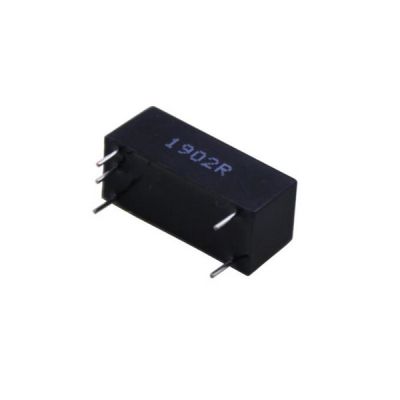

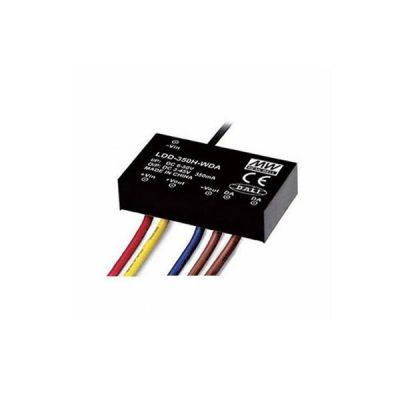

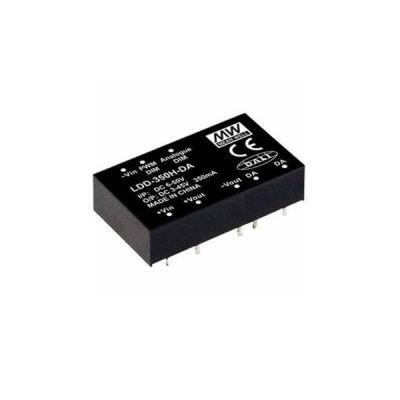

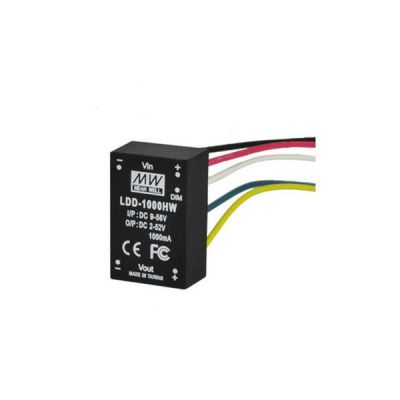

Meanwell LDD-H-DA Series is DC-DC Constant Current Step-Down LED driver with DALI designed in compact size. The entire series could operate from 3~ 45VDC and offer models with different rated current ranging between 350mA and 1400mA. The efficiency reaches high to 95%, and work at -40℃~+85℃ under natural air cooling and heat dissipation conditions. Under Built-in EMI filter and PWM and remote ON/OFF control, LDD-H-DA complies with BS EN/EN5501 5 without extra input filter and capacitors. In addition, the series is equipped with various protections such as Short circuit. LDD, LDB, LDH series are all DC-DC constant current output LED drivers, LDD is step-down type, LDH is step-up type, and LDB is buck-boost type model. The packaging forms have three forms: pin type, lead type and SMD chip type, which is convenient for various application scenarios. Considering its longevity, high reliability and low cost, Meanwell LDD-H-DA Series serves as an ideally suitable solution for driving illumination LED.
Meanwell LDD-H-DA Series Model Specifications
| LDD-350H- | W | DA |
| Blank: Pin Style | ||
| W: Wire Style |
| ORDER NO. | LDD-350H-□DA | LDD-700H-□DA | LDD-1050H-□DA | LDD-1400H-□DA | |
| OUTPUT | CURRENT RANGE | 350mA | 700mA | 1050mA | 1400mA |
| VOLTAGE RANGE | 3-45VDC | 3-36VDC | |||
| CURRENT ACCURACY (Typ.) | ±5% at 48VDC input | ±5% at 28VDC input | |||
| RIPPLE & NOISE (max.) | 300mVp-p | 500mVp-p | 150mVp-p | 150mVp-p | |
| SWITCHING FREQENCY (Typ.) | 500KHz | ||||
| EXTERNAL CAPACITANCE LOAD (max) | 1400uF | ||||
| Input | VOLTAGE RANGE | 6 ~ 50VDC | |||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||
| EFFICIENCY (max.) | 95% at full load and 48VDC input | ||||
| DC CURRENT Full load | 275mA | 550mA | 825mA | 1280mA | |
| DC CURRENT No load | 5mA | ||||
| FILTER | Capacitor | ||||
| PWM DIMMING & ON/OFF CONTROL (PIN STYLE ONLY | REMOTE ON/OFF | Leave open if not use | |||
| Power ON with dimming: DIM ~ -Vin >1.2 ~ 5VDC or open circuit, max. operation voltage 5.5VDC | |||||
| Power OFF : DIM ~ -Vin < 0.1VDC or short | |||||
| PWM FREQUENCY | 200Hz only | ||||
| QUIESCENT INPUT CURRENT IN SHUTDOWN MODE (max.) | 1mA at PWM dimming OFF and 24VDC input | ||||
| PROTECTION | SHORT CIRCUIT | Regulated at rated output current | |||
| Protection type: Can be continued, recovers automatically after fault condition is removed | |||||
| INPUT VOLTAGE LOCKOUT Start up | 4.2VDC | ||||
| INPUT VOLTAGE LOCKOUT Shut-down | 3.8VDC | ||||
| ENVIRONMENT | WORKING TEMP. | -40 ~ + 85℃(Refer to derating curve) | |||
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | ||||
| STORAGE TEMP., HUMIDITY | -55 ~ +125℃, 10 ~ 95% RH non-condensing | ||||
| TEMP. COEFFICIENT | ±0.03% /℃ | ||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes | ||||
| OPERATING CASE TEMP. (max.) | 100℃ | ||||
| EMC | SAFETY STANDARDS | EAC TP TC 020/2011 approved | |||
| EMC EMISSION | Compliance to BS EN/EN55015, EAC TP TC 020 | ||||
| EMC IMMUNITY | Compliance to BS EN/EN61547, EN61000-4-2,3,4,6,8, light industry level, criteria A, EAC TP TC 020 | ||||
| Others | MTBF | 1000Khrs min. MIL-HDBK-217F (25℃) | |||
| DIMENSION | 40.6*23.5*10.1mm or 1.6"*0.93"*0.40" inch (L*W*H) | ||||
| PACKING | LDD-H-DA: 18g ; 12pcs/per tube, 336pcs/28 tube/per carton LDD-H-WDA:23g ; 8pcs/Box, 240pcs/30 Box/per carton |
||||
| POTTING MATERIAL | Expoxy(UL94-V0) | ||||
Meanwell LDD-H-DA Series Features
l DC/DC step-down converter
l Constant current output: 350mA to 1400mA
l Wide input voltage: 6~50VDC
l Wide output LED string voltage: 3~45VDC
l High efficiency up to 95%
l Built-in EMI filter, comply with BS EN/EN5501 5 without additional input filter and capacitors
l Built-in PWM and remote ON/OFF control(pin style only, wire style optional)
l Protections: Short circuit
l Cooling by free air convection
l Fully encapsulated with IP65 level
l Compact size
l Suitable for driving illumination L ED
l 3 years warranty
Meanwell LDD-H-DA Series Mecnanical Diagram
