LDD-1050H-DA
12.84
Details

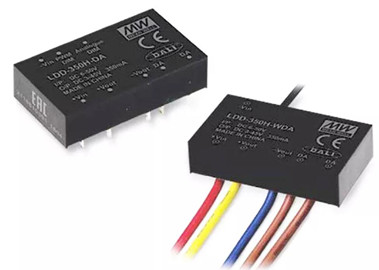

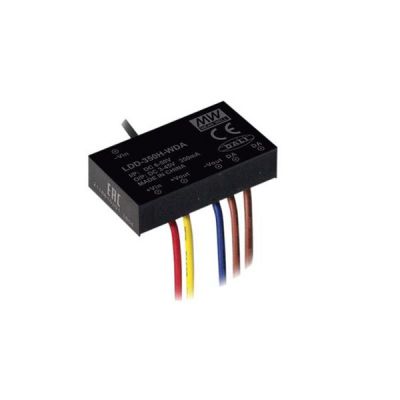

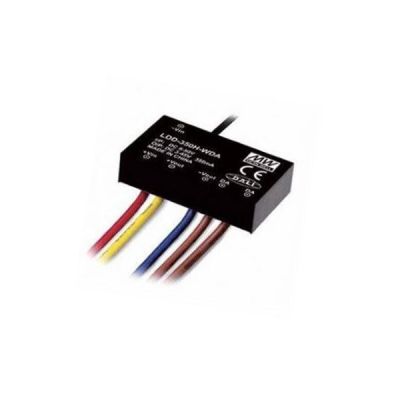

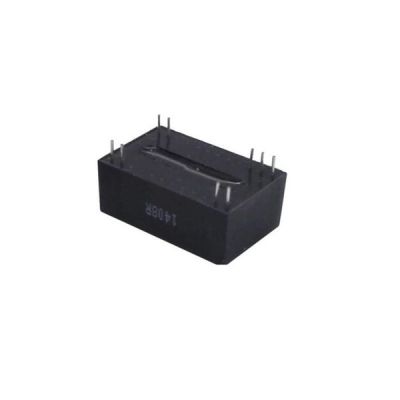

Meanwell LDD-1050H-DA is DC-DC Constant Current Step-Down LED driver with 1050mA3-45VDC±5% at 48VDC input150mVp-p500KHz1400uF6~50VDC47~63Hz825mA5mA. It is designed in compact size operating from 3~ 45VDC with rated current 1050mA. Meanwhile, the efficiency reaches high to 95% at -40℃~+85℃ under natural air cooling and heat dissipation conditions. Based on Built-in EMI filter and PWM and remote ON/OFF control, LDD-1050H-DA complies with BS EN/EN5501 5 without extra input filter and capacitors. Furthermore, the unit is provided with various protections such as Short circuit. LDD, LDB, LDH series are all DC-DC constant current output LED drivers, LDD is step-down type, LDH is step-up type, and LDB is buck-boost type model. The packaging forms have three forms: pin type, lead type and SMD chip type, which is convenient for various application scenarios. In light of its longevity, high reliability and low cost, Meanwell LDD-1050H-DA is an ideally suitable solution for driving illumination LED.
Meanwell LDD-1050H-DA Specifications
| LDD-350H- | W | DA |
| Blank: Pin Style | ||
| W: Wire Style |
| ORDER NO. | LDD-1050H-□DA | |
| OUTPUT | CURRENT RANGE | 1050mA |
| VOLTAGE RANGE | 3-45VDC | |
| CURRENT ACCURACY (Typ.) | ±5% at 48VDC input | |
| RIPPLE & NOISE (max.) | 150mVp-p | |
| SWITCHING FREQENCY (Typ.) | 500KHz | |
| EXTERNAL CAPACITANCE LOAD (max) | 1400uF | |
| Input | VOLTAGE RANGE | 6 ~ 50VDC |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| EFFICIENCY (max.) | 95% at full load and 48VDC input | |
| DC CURRENT Full load | 825mA | |
| DC CURRENT No load | 5mA | |
| FILTER | Capacitor | |
| PWM DIMMING & ON/OFF CONTROL (PIN STYLE ONLY | REMOTE ON/OFF | Leave open if not use |
| Power ON with dimming: DIM ~ -Vin >1.2 ~ 5VDC or open circuit, max. operation voltage 5.5VDC | ||
| Power OFF : DIM ~ -Vin < 0.1VDC or short | ||
| PWM FREQUENCY | 200Hz only | |
| QUIESCENT INPUT CURRENT IN SHUTDOWN MODE (max.) | 1mA at PWM dimming OFF and 24VDC input | |
| PROTECTION | SHORT CIRCUIT | Regulated at rated output current |
| Protection type: Can be continued, recovers automatically after fault condition is removed | ||
| INPUT VOLTAGE LOCKOUT Start up | 4.2VDC | |
| INPUT VOLTAGE LOCKOUT Shut-down | 3.8VDC | |
| ENVIRONMENT | WORKING TEMP. | -40 ~ + 85℃(Refer to derating curve) |
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -55 ~ +125℃, 10 ~ 95% RH non-condensing | |
| TEMP. COEFFICIENT | ±0.03% /℃ | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes | |
| OPERATING CASE TEMP. (max.) | 100℃ | |
| EMC | SAFETY STANDARDS | EAC TP TC 020/2011 approved |
| EMC EMISSION | Compliance to BS EN/EN55015, EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61547, EN61000-4-2,3,4,6,8, light industry level, criteria A, EAC TP TC 020 | |
| Others | MTBF | 1000Khrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 40.6*23.5*10.1mm or 1.6"*0.93"*0.40" inch (L*W*H) | |
| PACKING | LDD-H-DA: 18g ; 12pcs/per tube, 336pcs/28 tube/per carton LDD-H-WDA:23g ; 8pcs/Box, 240pcs/30 Box/per carton |
|
| POTTING MATERIAL | Expoxy(UL94-V0) | |
Meanwell LDD-1050H-DA Features
l Compact size
l 3 years warranty
l DC/DC step-down converter
l High efficiency up to 95%
l Protections: Short circuit
l Cooling by free air convection
l Fully encapsulated with IP65 level
l Suitable for driving illumination L ED
l Constant current output: 350mA to 1400mA
l Wide input voltage: 6~50VDC
l Wide output LED string voltage: 3~45VDC
l Built-in EMI filter, comply with BS EN/EN5501 5 without additional input filter and capacitors
l Built-in PWM and remote ON/OFF control (pin style only, wire style optional)
Meanwell LDD-1050H-DA Mecnanical Diagram
