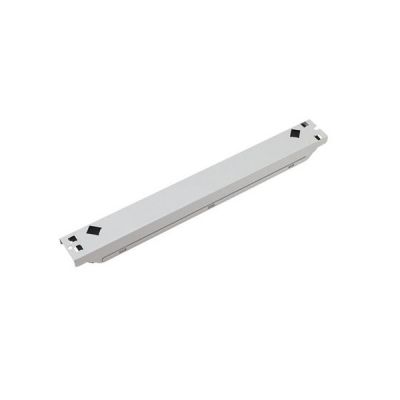

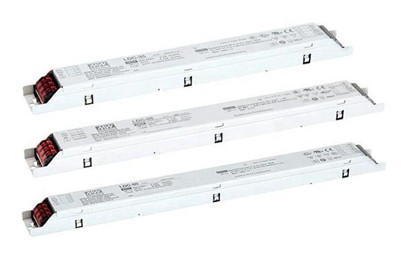

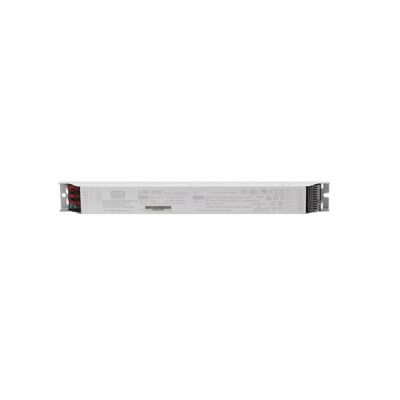

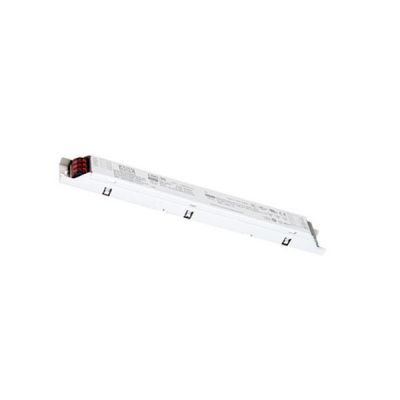

LDC-80
24.58
Details

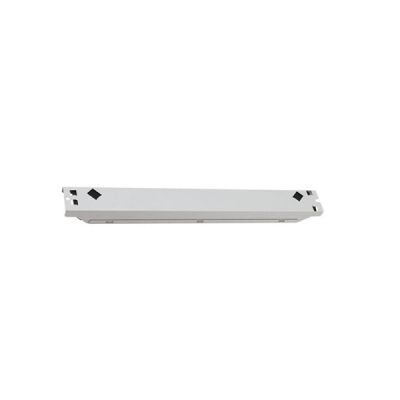

Meanwell LDC-80 Series is 80W AC/DC mode linear LED driver highlighting constant power output. The entire series could operate from 180~295V AC. Meanwhile, the output current can be adjusted between 700mA to 2100mA. The efficiency could reach high up to 90% based on the fanless design. In addition, LDC-80 is able to work for -25℃~+85℃ case temperature under free air convection. Apart from them, the product is equipped with various function options such as dimming methodologies. Considering its long lifetime, high efficiency, and excellent reliability, Meanwell LDC-80 Series provides optimal design flexibility for LED lighting system.
Meanwell LDC-80 Series Encoding
| LDC | Series Name |
| 80 | Rated output Wattage |
| □ | Function Options |
| Type | Function |
| Blank | Non dimming |
| B | 3 in 1 dimming function (0~10Vdc and10V PWM signal and resistance |
| DA | DALI, push dimming |
Meanwell LDC-80 Series Model Specifications
| Model | LDC-80 | |
| OUTPUT | OUTPUT CURRENT REGION | 700 ~ 2100mA (1400mA default) |
| RATED POWER | 80W | |
| CONSTANT CURRENT REGION | 27-56V | |
| FULL POWER CURRENT RANGE | 1400 ~ 2100mA | |
| OPEN CIRCUIT VOLTAGE (max.) | 60V | |
| LOW FREQUENCY CURRENT RIPPLE | 3.0% max, @ rated current | |
| CURRENT TOLERANCE | ±5.0% | |
| SET UP TIME | 500ms/230VAC | |
| Input | VOLTAGE RANGE | 180 ~ 295VAC (Please refer to "STATIC CHARACTERISTIC" section) |
| FREQUENCY RANGE | 47 ~ 63Hz | |
| POWER FACTOR (Typ.) | PF>=0.95/230VAC@load>=50%; PF>=0.92/277VAC@load>=75% (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section) |
|
| TOTAL HARMONIC DISTORTION | THD< 10%(@load>=50%/230VAC; @load>=75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section) |
|
| EFFICIENCY (Typ.) | 90%(230VAC@Full load) | |
| AC CURRENT (Typ.) | 0.48A / 230VAC 0.36A/277VAC | |
| INRUSH CURRENT(Typ.) | COLD START 55A(twidth=300μs measured at 50% Ipeak)/230VAC; Per NEMA 410 | |
| MAX. No. of PSUs on 16A CIRCUIT BREAKER | 6 units (circuit breaker of type B) / 11 units (circuit breaker of type C) at 230VAC | |
| LEAKAGE CURRENT | <0.75mA / 277VAC | |
| PROTECTION | SHORT CIRCUIT | Hiccup mode or constant current limiting ,recovers automatically after fault condition is removed |
| OVER VOLTAGE | 61 ~ 80V | |
| Shut down o/p voltage with auto-recovery or re-power on to recovery | ||
| OVER TEMPERATURE | Shut down o/p voltage, with auto-recovery | |
| FUNCTION | DIMMING | Please refer to“DIMMING OPERATION”section |
| TEMP. COMPENSATION | By external NTC, please refer to“TEMPERATURE COMPENSATION OPERATION”section | |
| ENVIRONMENT | WORKING TEMP. | Tcase=-25 ~ +85℃(Please refer to “ OUTPUT LOAD vs TEMPERATURE” section) |
| MAX. CASE TEMP. | Tcase=+80℃ | |
| WORKING HUMIDITY | 20 ~ 95% RH non-condensing | |
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | |
| TEMP. COEFFICIENT | ±0.03%/℃(0 ~ 60℃) | |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
| SAFETY &EMC | SAFETY STANDARDS | UL8750, CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, AS/NZS 61347.1, AS/NZS IEC 61347.2.13; BS EN/EN62384; GB19510.14,GB19510.1, EAC TP TC 004, BIS IS15885 approved |
| DALI STANDARDS | Compliance to IEC62386-101.102.207 for DA-Type only | |
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC | |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |
| EMC EMISSION | Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load>=50%) ; BS EN/EN61000-3-3;GB/T17743, GB17625.1,EAC TP TC 020 | |
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level(surge immunity:Line-Earth: 2KV,Line-Line:1KV) EAC TP TC 020 | |
| Others | MTBF | 2321.4K hrs min. Telcordia SR-332 (Bellcore) 259.2Khrs min. MIL-HDBK-217F (25℃) |
| DIMENSION | 360*30*21mm (L*W*H) | |
| PACKING | 0.295Kg; 40pcs/12.8Kg/0.81CUFT | |
Meanwell LDC-80 Series Features
l Constant Power mode output
l Metal housing design
l Full Power at 70~100% max Current
l Built-in active PFC function
l Flicker Free design
l No load / Standby power consumption <0.5W
l Output current level pre-settable
l Function options:3 in 1 dimming (dim-to-off); DALI interface, push dimming
l Typical lifetime>50000 hours
l SELV and Isolated
l Class 2 power supply
l 5 years warranty
Meanwell LDC-80 Series Applications
l LED panel lighting
l Indoor LED lighting
l Linear LED lighting

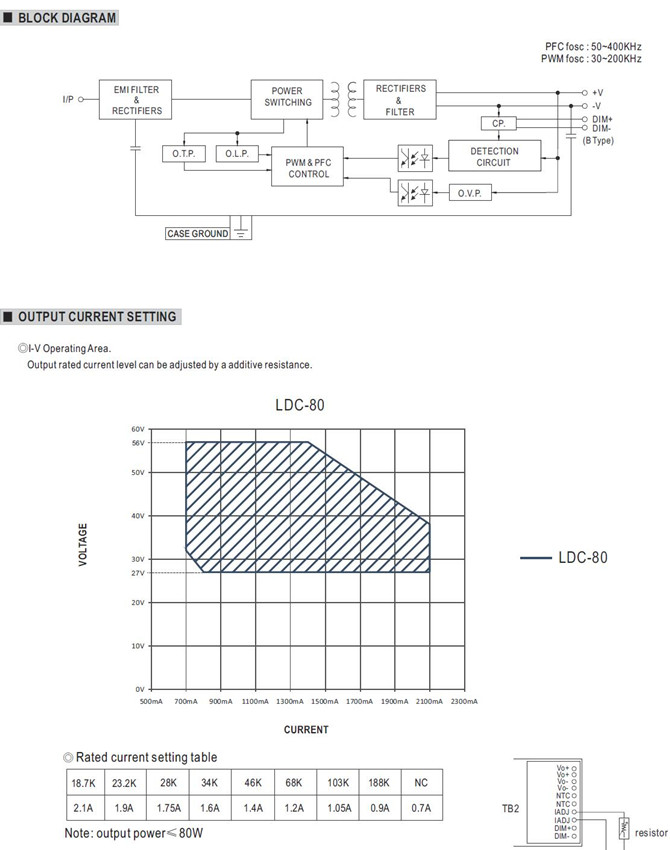

Meanwell LDC-80 Series Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
