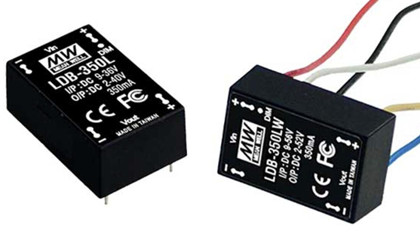

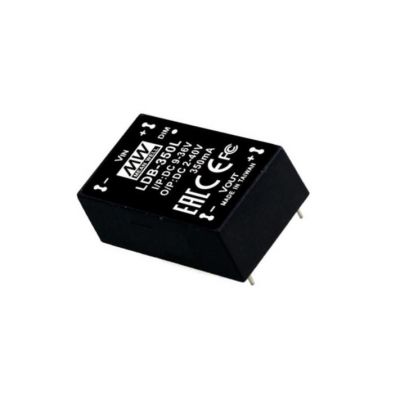

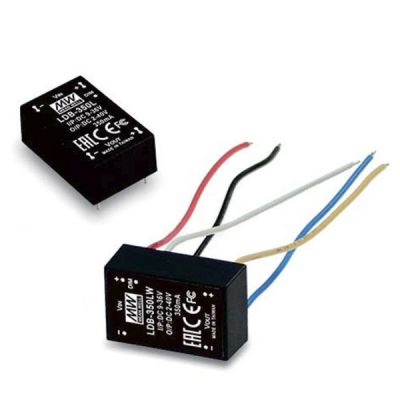

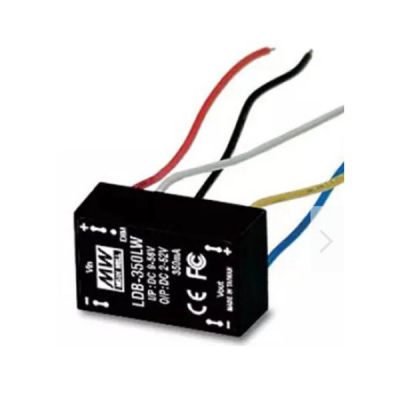

Meanwell LDB-L Series is DC-DC buck-boost glue filling constant current LED driver. The entire series has a variety of output currents of 300mA/350mA/500mA/600mA to choose from. At the same time, it features ultra-wide input, output voltage, and can be driven normally regardless of the voltage difference between output/input voltage. With built-in EMI filter, LDB-L can meet the electromagnetic compatibility requirements of EN55015 lighting without the need for additional electromagnetic interference suppression components. Thanks to glue filling package, Meanwell LDB-L Series is suitable for harsh environment applications with high dust/humidity such as street lights, street lights, landscape lights, tunnel lights, household lighting, backlights and other LED lighting modules.
Meanwell LDB-L Series Model Specifications
| Model | LDB-300L□ | LDB-350L□ | LDB-500L□ | LDB-600L□ | |||
| OUTPUT | CURRENT RANGE | 300mA | 350mA | 500mA | 600mA | ||
| VOLTAGE RANGE | 2-40VDC | 2-40VDC | 2-32VDC | 2-30VDC | |||
| CURRENT ACCURACY (Typ.) | 150-380V | 95-240V | 70-180V | ||||
| CURRENT ACCURACY (Typ.) | ±5% | ||||||
| RIPPLE & NOISE (max.) | 150mVp-p | 150mVp-p | 150mVp-p | 200mVp-p | |||
| SWITCHING FREQENCY | 1000KHz | ||||||
| NO LOAD OUTPUT VOLTAGE | 75VDC | ||||||
| Input | VOLTAGE RANGE | 9-36VDC | 9-36VDC | 9-30VDC | 9-28VDC | ||
| EFFICIENCY (max.) | 12VDC | 86.00% | 89.00% | 87.00% | 82.00% | ||
| 24VDC | 90.00% | 91.00% | 89.00% | 88.00% | |||
| DC CURRENT | Full Load | 12VDC | 930mA% | 1100mA% | 1590mA% | 2000mA | |
| 24VDC | 450mA | 520mA | 790mA | 930mA | |||
| No Load | 2mA (Vin 24VDC) | ||||||
| FILTER | Capacitor | ||||||
| PWM DIMMING & ON/OFF CONTROL | REMOTE ON/OFF | Leave open if not use | |||||
| Power ON with dimming: DIM ~ -Vin >2 ~ 10VDC or open circuit | |||||||
| Power OFF : DIM ~ -Vin < 0.5VDC or short | |||||||
| PWM FREQUENCY | 100 ~ 1KHz | ||||||
| MAX. PWM SIGNAL CURRENT | 1mA | ||||||
| PROTECTION | SHORT CIRCUIT | Regulated at rated output current | |||||
| Protection type: Can be continued, recovers automatically after fault condition is removed | |||||||
| OVER TEMPERATURE | Tj 145℃typically (IC1) detect on main control IC | ||||||
| Protection type : Shut down, recovers automatically after temperature goes down | |||||||
| ENVIRONMENT | WORKING TEMP. | -40 ~ + 70℃ (Refer to derating curve) | |||||
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | ||||||
| STORAGE TEMP., HUMIDITY | -55 ~ +125℃, 10 ~ 95% RH | ||||||
| TEMP. COEFFICIENT | ±0.03% /℃ | ||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes | ||||||
| OPERATING CASE TEMP. (max.) | 115℃ | ||||||
| EMC | SAFETY STANDARDS | EAC TP TC 020/2011 approved | |||||
| EMC EMISSION | Compliance to BS EN/EN55015, FCC part 15 class B, EAC TP TC 020 | ||||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,6,8, light industry level, criteria A, EAC TP TC 020 | ||||||
| Others | MTBF | 350Khrs min. MIL-HDBK-217F (25℃) | |||||
| DIMENSION | 31.8*20.3*12.2mm or 1.25"*0.8"*0.48" inch (L*W*H) | ||||||
| WEIGHT | LDB-L:15.6g(15pcs/Tube) ; LDB-LW:18g(20pcs/Box), Please order Base on MPQ | ||||||
| POTTING MATERIAL | Expoxy (UL94-V0) | ||||||
Meanwell LDB-L Series Features
l DC/DC buck- boost converter
l Constant current output: 300mA to 600mA
l Wide input voltage: 9 ~ 36VDC
l Wide output LED string voltage: 2~40VDC
l High efficiency up to 91%
l Comply with BS EN/EN55015 and FCC part15
l Built-in PWM and remote ON/OFF control
l Protections: Short circuit/Over temperature
l Cooling by free air convection
l Fully encapsulated with IP67 level
l Compact size
l High reliability
l Suitable for driving illumination LED
l 3 years warranty

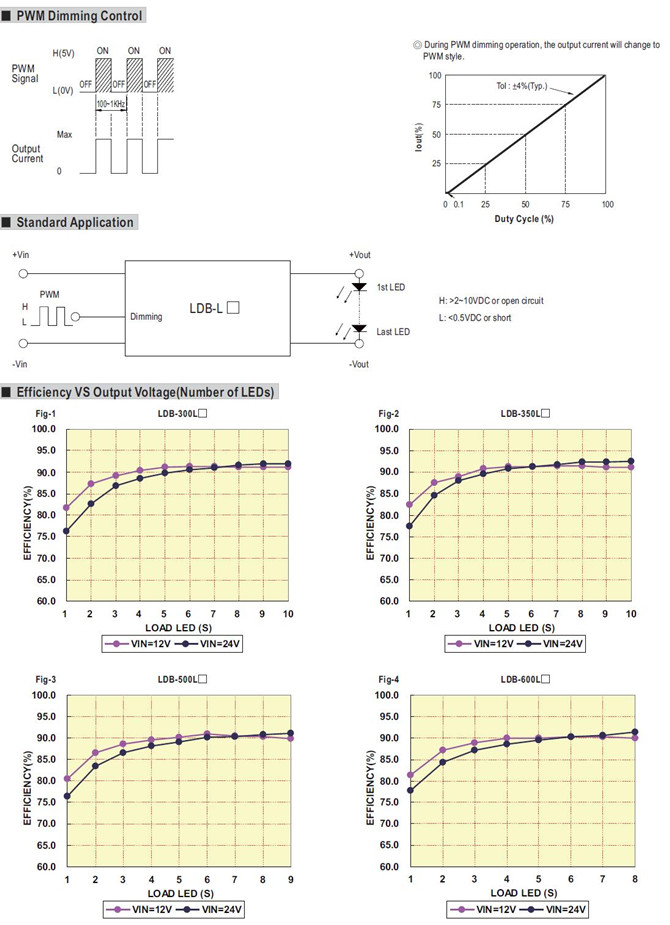

Meanwell LDB-L Series Mechanical Diagram
