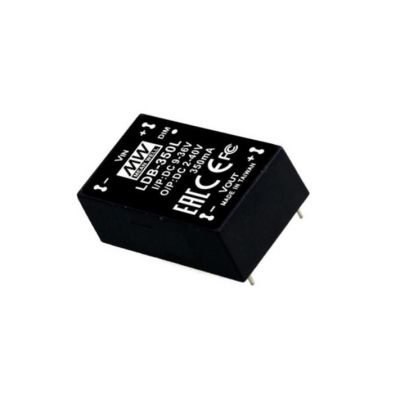

LDB-350L
6.81
Details
Meanwell LDB-350L is DC-DC buck-boost glue filling constant current LED driver with 350mA2-40VDC95-240V±5%150mVp-p1000KHz75VDC9-36VDC89.00%91.00%1100mA%520mA2mA (Vin 24VDC). The product provides ultra-wide input, output voltage, and can be driven normally regardless of the voltage difference between output/input voltage. With built-in EMI filter, LDB-350L is able to fit the electromagnetic compatibility requirements of EN55015 lighting without the need for additional electromagnetic interference suppression components. As to glue filling package, Meanwell LDB-350L is ideal for harsh environment applications with high dust/humidity such as street lights, street lights, landscape lights, tunnel lights, household lighting, backlights and other LED lighting modules.
Meanwell LDB-350L Specifications
| Model | LDB-350L□ | |||
| OUTPUT | CURRENT RANGE | 350mA | ||
| VOLTAGE RANGE | 2-40VDC | |||
| CURRENT ACCURACY (Typ.) | 95-240V | |||
| CURRENT ACCURACY (Typ.) | ±5% | |||
| RIPPLE & NOISE (max.) | 150mVp-p | |||
| SWITCHING FREQENCY | 1000KHz | |||
| NO LOAD OUTPUT VOLTAGE | 75VDC | |||
| Input | VOLTAGE RANGE | 9-36VDC | ||
| EFFICIENCY (max.) | 12VDC | 89.00% | ||
| 24VDC | 91.00% | |||
| DC CURRENT | Full Load | 12VDC | 1100mA% | |
| 24VDC | 520mA | |||
| No Load | 2mA (Vin 24VDC) | |||
| FILTER | Capacitor | |||
| PWM DIMMING & ON/OFF CONTROL | REMOTE ON/OFF | Leave open if not use | ||
| Power ON with dimming: DIM ~ -Vin >2 ~ 10VDC or open circuit | ||||
| Power OFF : DIM ~ -Vin < 0.5VDC or short | ||||
| PWM FREQUENCY | 100 ~ 1KHz | |||
| MAX. PWM SIGNAL CURRENT | 1mA | |||
| PROTECTION | SHORT CIRCUIT | Regulated at rated output current | ||
| Protection type: Can be continued, recovers automatically after fault condition is removed | ||||
| OVER TEMPERATURE | Tj 145℃typically (IC1) detect on main control IC | |||
| Protection type : Shut down, recovers automatically after temperature goes down | ||||
| ENVIRONMENT | WORKING TEMP. | -40 ~ + 70℃ (Refer to derating curve) | ||
| WORKING HUMIDITY | 20% ~ 90% RH non-condensing | |||
| STORAGE TEMP., HUMIDITY | -55 ~ +125℃, 10 ~ 95% RH | |||
| TEMP. COEFFICIENT | ±0.03% /℃ | |||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes | |||
| OPERATING CASE TEMP. (max.) | 115℃ | |||
| EMC | SAFETY STANDARDS | EAC TP TC 020/2011 approved | ||
| EMC EMISSION | Compliance to BS EN/EN55015, FCC part 15 class B, EAC TP TC 020 | |||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,6,8, light industry level, criteria A, EAC TP TC 020 | |||
| Others | MTBF | 350Khrs min. MIL-HDBK-217F (25℃) | ||
| DIMENSION | 31.8*20.3*12.2mm or 1.25"*0.8"*0.48" inch (L*W*H) | |||
| WEIGHT | LDB-L:15.6g(15pcs/Tube) ; LDB-LW:18g(20pcs/Box), Please order Base on MPQ | |||
| POTTING MATERIAL | Expoxy (UL94-V0) | |||
Meanwell LDB-350L Features
l Compact size
l High reliability
l 3 years warranty
l DC/DC buck- boost converter
l Constant current output: 300mA to 600mA
l Wide input voltage: 9 ~ 36VDC
l Wide output LED string voltage: 2~40VDC
l High efficiency up to 91%
l Cooling by free air convection
l Fully encapsulated with IP67 level
l Suitable for driving illumination LED
l Comply with BS EN/EN55015 and FCC part15
l Built-in PWM and remote ON/OFF control
l Protections: Short circuit/Over temperature
Meanwell LDB-350L Mechanical Diagram
