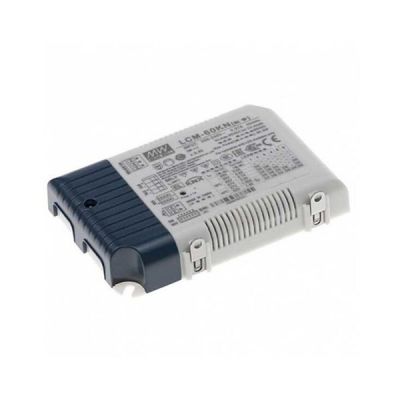

Meanwell 60W Multiple-Stage Constant Current Mode LED Driver

- +
Availability:In stock
SKU Meanwell LCM-60
Brand Meanwell
Details

Meanwell LCM-60 Series is 60W LED AC/DC constant current mode output LED driver highlighting the multiple levels selectable by dip switch. Since the efficiency reaches high up to 92% with the fanless design, LCM-60 is able to work for -30℃~ +90℃ case temperature under free air convection. What’s more, it is equipped with various functions such as the dimming function and synchronization. Considering its longevity, high reliability, and excellent quality, Meanwell LCM-60 Series provides optimal design flexibility for LED lighting system

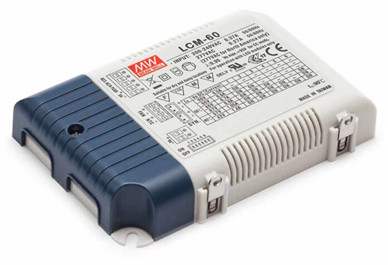

Meanwell LCM-60 Price and Specs 60W Multiple-Stage Constant Current Mode LED Driver with PFC Class 2 Plastic Case YCICT

Meanwell LCM-60 Series Encoding

LCM Series Name
60 Output Wattage
EO: Optional wireless ENOcean Module
Blank 3 in 1 Dimming ( dim-to-off)
EO Wireless driver with integrated EnOcean module

Meanwell LCM-60 Series Model Specifications

Model LCM-60

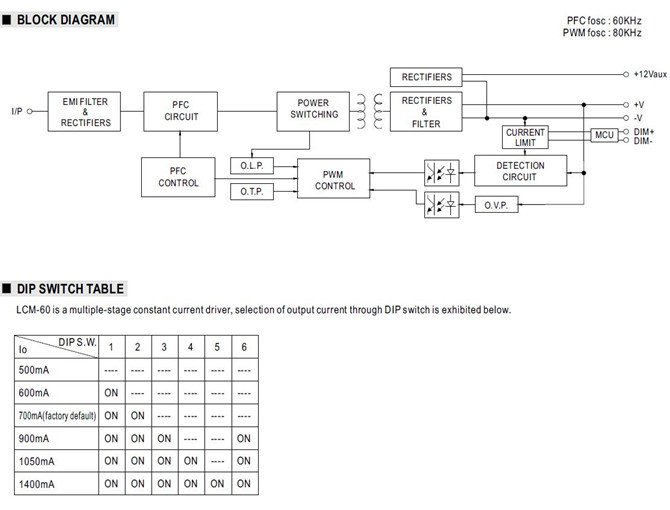

OUTPUT CURRENT LEVEL Current level selectable via DIP switch, please refer to”DIP SWITCH TABLE” section
500mA 600mA 700mA (default) 900mA 1050mA 1400mA
RATED POWER 60.3W
DC VOLTAGE RANGE 2-90V 2-90V 2-86V 2-67V 2-57V 2-42V
OPEN CIRCUIT VOLTAGE (max.) 102V 76V
CURRENT RIPPLE  5.0% max. at rated current
CURRENT TOLERANCE ±5%
SETUP TIME 500ms / 230VAC
AUXILIARY DC OUTPUT Nominal 12V (deviation 11.4~12.6V) at 50mA
INPUT VOLTAGE RANGE 180 ~ 295VAC 254 ~ 392VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE 47 ~ 63Hz
POWER FACTOR PF>=0.975/230VAC, PF>=0.96/277VAC at full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION THD< 20%(at load>=75%) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.) 92.00%
AC CURRENT (Typ.) 0.32A/230VAC 0.27A/277VAC
INRUSH CURRENT (Typ.) COLD START 20A(twidth=270μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A
CIRCUIT BREAKER
25 units (circuit breaker of type B) / 32 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT <0.5mA / 240VAC
STANDBY POWER CONSUMPTION <1W
FUNCTION WIRELESS PROTOCOL(Optional EnOcean standard 868 MHz; Max. device(switch) saved into the memory : 33
DIMMING Please refer to "DIMMING OPERATION" section
TEMP. COMPENSATION By external NTC, please refer to “TEMPERATURE COMPENSATION OPERATION”section
SYNCHRONIZATION Please refer to "SYNCHRONIZATION OPERATION” section
ENVIRONMENT WORKING TEMP Tcase=-30 ~ +90 (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP Tcase=+90
WORKING HUMIDITY 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY -40 ~ +80, 10 ~ 95% RH
TEMP. COEFFICIENT ±0.03%/ (0 ~ 50)
VIBRATION 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY&EMC SAFETY STANDARDS UL8750, CSA C22.2 No.250.13-12, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, BS EN/EN62384 independent, GB19510.14,GB19510.1,BIS IS15885, EAC TP TC 004 approved
WITHSTAND VOLTAGE I/P-O/P:3.75KVAC
ISOLATION RESISTANCE I/P-O/P:>100M Ohms / 500VDC / 25/ 70% RH
EMC EMISSION Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C(at load>=40%) ; BS EN/EN61000-3-3; GB17625.1,GB17743, EAC TP TC 020
EMC IMMUNITY Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level(surge immunity Line-Line 2KV), EAC TP TC 020
Others MTBF 2628.7K hrs min. Telcordia SR-332 (Bellcore) ; 260.6K hrs min. MIL-HDBK-217F (25)
DIMENSION 123.5*81.5*23mm (L*W*H)
PACKING 0.24Kg ; 54pcs/15Kg/1.12CUFT

Meanwell LCM-60 Series Features

l  Constant Current mode output with multiple levels selectable by dip switch

l  Plastic housing with class ll design

l  Built-in active PFC function

l  Standby power consumption <1 W

l  Functions:3 in 1 dimming (dim-to-off);

l  Auxiliary DC output; synchronization up to 10 units

l  Optional: Wireless LED driver with integrated EnOcean module

l  3 years warranty

Meanwell LCM-60 Price and Specs Multiple-Stage Constant Current Mode LED Driver PFC Class 2 Plastic Case 60W YCICT

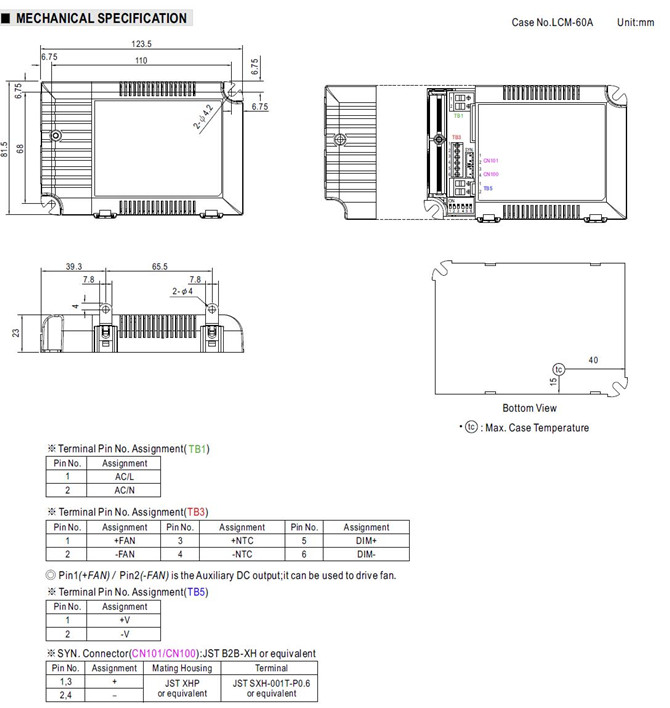

Meanwell LCM-60 Series Mechanical Diagram

Meanwell LCM-60 Price and Specs 60W Multiple-Stage Constant Current Mode LED Driver PFC Class 2 Plastic Case YCICT

Meanwell LCM-60 Price and datasheet 60W Multiple-Stage Constant Current Mode LED Driver PFC Class 2 Plastic Case YCICT
