LCM-60 IoT
28.16
Details

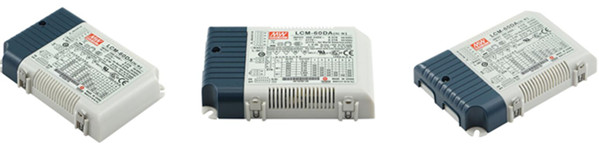

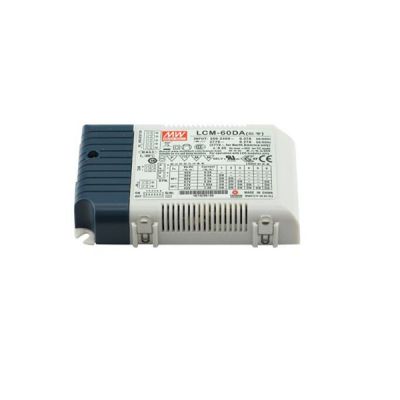

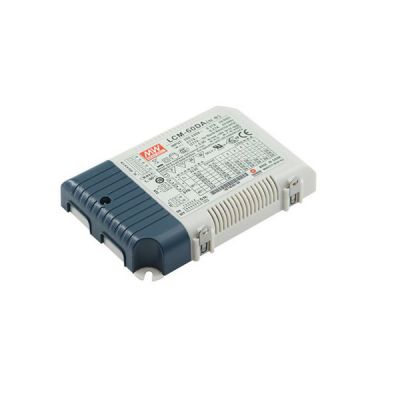

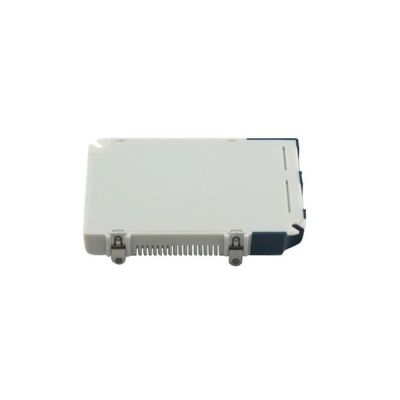

Meanwell LCM-60 IoT Series is 60W AC/DC constant current mode output L ED driver highlighting adjustable output current via dip switch and integration with Bluetooth control. At the same time, LCM-60 operates from 180~ 295V AC providing different current levels ranging between 500mA and 1400mA. Since the efficiency reaches high up to 91 % based on fanless design, LCM-50 is able to work for -20℃~+90℃ case temperature under free air convection. Additionally, the product is equipped with freely assignable input and synchronization function. The latest Bluetooth networking technology can be connected through each module (Mesh), and there is no need to connect through additional gateways, which is the best advantage of using Bluetooth networking, solving the traditional Bluetooth only be used one-to-one and short-distance transmission restrictions. Moreover, users can also store relevant settings in the cloud through CASAMBI system, which is convenient for users to do more use. Considering its longevity, high efficiency and excellent reliability, Meanwell LCM-60 IoT Series is an ideal solution for the optimal design flexibility for LED lighting system and upgrade lighting to be an intelligent lighting system.
Meanwell LCM-60 IoT Series Encoding
| LCM | Series Name |
| 60 | Output wattage |
| BLE | Built-in wireless module brand and solution |
| AUX | Auxiliary Power Output (Option) |
| Brand & Solution | Wireless Standard |
| Casambi BLE | Bluetooth low energy mesh 2.4GHz protocol By Request |
| Tuya TY1 | Bluetooth low energy mesh 2.4GHz protocol By Request |
| Silvair SVA | Bluetooth low energy mesh 2.4GHz protocol By Request |
Meanwell LCM-60 IoT Series Model Specifications
| Model | LCM-60 | ||||||

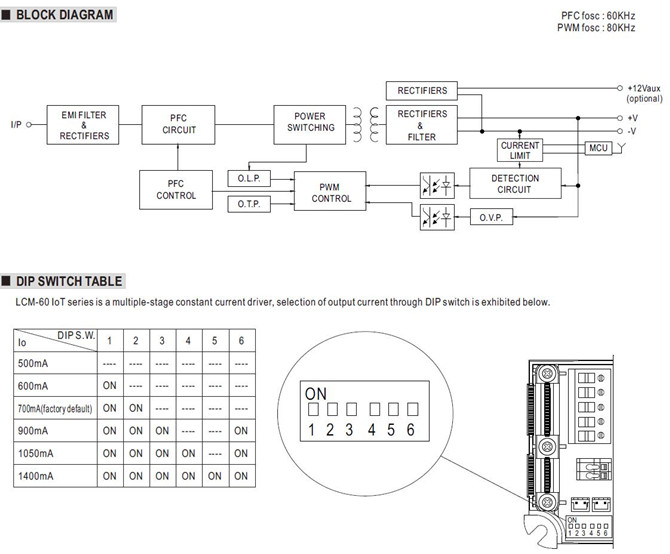

| OUTPUT | CURRENT LEVEL | Current level selectable via DIP switch, please refer to”DIP SWITCH TABLE” section | |||||
| 500mA | 600mA | 700mA (default) | 900mA | 1050mA | 1400mA | ||
| RATED POWER | 60.3W | ||||||
| DC VOLTAGE RANGE | 2-90V | 2-90V | 2-86V | 2-67V | 2-57V | 2-42V | |
| OPEN CIRCUIT VOLTAGE (max.) | 95V | 73V | |||||
| CURRENT RIPPLE | 5.0% max. at rated current | ||||||
| CURRENT TOLERANCE | ±5% | ||||||
| AUXILIARY DC OUTPUT | Nominal 12V (deviation 11.4~12.6V)@50mA for AUX-Type only/option | ||||||
| INPUT | VOLTAGE RANGE | 180 ~ 295VAC 254 ~ 392VDC (Please refer to "STATIC CHARACTERISTIC" section) | |||||
| FREQUENCY RANGE | 47 ~ 63Hz | ||||||
| POWER FACTOR | PF>=0.975/230VAC, PF>=0.96/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section) | ||||||
| TOTAL HARMONIC DISTORTION | THD< 20%(@load>=75%) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section) | ||||||
| EFFICIENCY (Typ.) | 91.00% | ||||||
| AC CURRENT (Typ.) | 0.32A/230VAC 0.27A/277VAC | ||||||
| INRUSH CURRENT (Typ.) | COLD START 20A(twidth=270μs measured at 50% Ipeak) at 230VAC; Per NEMA 410 | ||||||
| MAX. No. of PSUs on 16A CIRCUIT BREAKER |
25 units (circuit breaker of type B) / 32 units (circuit breaker of type C) at 230VAC | ||||||
| LEAKAGE CURRENT | <0.5mA / 240VAC | ||||||
| STANDBY POWER CONSUMPTION | <1W | ||||||
| PROTECTION | OVER VOLTAGE | 105 ~ 125V | |||||
| Shutdown o/p voltage, re-power on to recover | |||||||
| OVER TEMPERATURE | Shutdown o/p voltage,re-power on to recover | ||||||
| FUNCTION | WIRELESS PROTOCOL | Bluetooth low energy 2.4GHz protocol | |||||
| DIMMING RANGE | 0~100% Minimum dimming level:6%,dim to off | ||||||
| TEMP. COMPENSATION | By external NTC, please refer to “TEMPERATURE COMPENSATION OPERATION”section | ||||||
| SYNCHRONIZATION | Please refer to "SYNCHRONIZATION OPERATION” section | ||||||
| ENVIRONMENT | WORKING TEMP | Tcase=-20 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section) | |||||
| MAX. CASE TEMP | Tcase=+90℃ | ||||||
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing | ||||||
| STORAGE TEMP., HUMIDITY | -40 ~ +80℃, 10 ~ 95% RH | ||||||
| TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | ||||||
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||||
| SAFETY&EMC | SAFETY STANDARDS | UL8750, CSA C22.2 No.250.13-12, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13, BS EN/EN62384 independent, GB19510.14,GB19510.1,BIS IS15885, EAC TP TC 004 approved | |||||
| WITHSTAND VOLTAGE | I/P-O/P:3.75KVAC | ||||||
| ISOLATION RESISTANCE | I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH | ||||||
| EMC EMISSION | Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C(@load>=40%) ; BS EN/EN61000-3-3; GB17625.1,GB17743, EAC TP TC | ||||||
| EMC IMMUNITY | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level(surge immunity Line-Line 2KV), EAC TP TC 020 | ||||||
| Others | MTBF | 2453.7K hrs min. Telcordia SR-332 (Bellcore) ; 238.3K hrs min. MIL-HDBK-217F (25℃) | |||||
| DIMENSION | 123.5*81.5*23mm (L*W*H) | ||||||
| PACKING | 0.24Kg ; 54pcs/15Kg/1.12CUFT | ||||||
Meanwell LCM-60 IoT Series Features
l Constant Current mode output with multiple levels selectable by dip switch
l Flicker free design
l Plastic housing with class ll design
l Temperature compensation function by external NTC
l Functions: Bluetooth low energy mesh Synchronization up to 10 units
l 3 years warranty
Meanwell LCM-60 IoT Series Applications
l LED indoor lighting
l LED office lighting
l LED panel lighting
l LED commercial lighting
l Intelligent lighting control

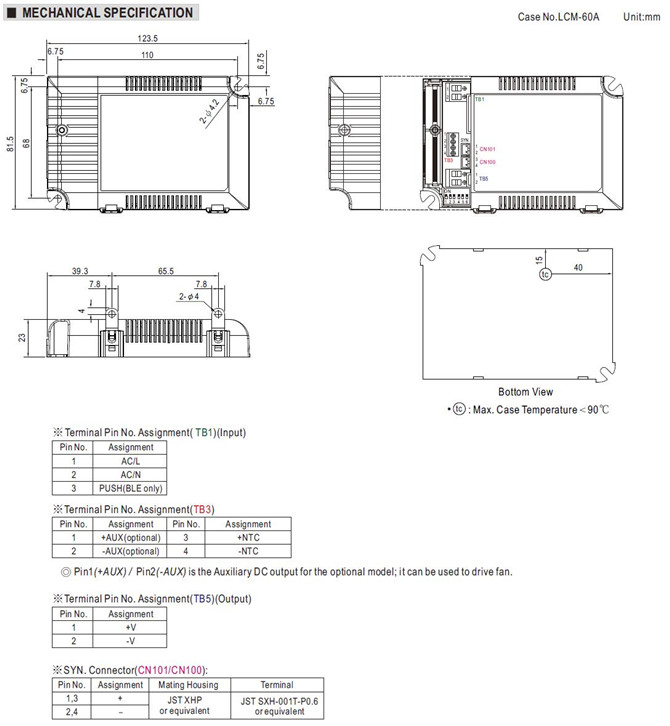

Meanwell LCM-60 IoT Series Mechanical Diagram
More Information
| Brand | Meanwell |
|---|
